5 Port Managed Industrial Switch, Layer 2, Din Rail

5 out of 5 based on 1 reviews | Write a review

$601.00

Best selling 5 port Layer 2 managed 10/100Base Ethernet switch, except the traditional two 100MF(x) ports & three 10/100MT(x) ports, it also expanded 2 RS232/RS485/CAN ports, dual DC12~48V wide voltage power input backup, support MW-Ring (the recovery time<20ms) with broadcast storm suppression / Rate limit.

Port Selection *

SKU: ATO-ES-EN5205C

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Five ports managed Ethernet switch for industrial communication front-end data access, support VLAN/ Qos/ Port link aggregation/ port mirroring, STP/RSTP for network redundancy, with advanced management and security features.

Specification

Model	ATO-EN5205C
Software Performance
Redundancy Protocol	Support MW-Ring and the recovery time<20 ms. Support STP/RSTP
Multicast Routing	Support IGMP snooping/ IGMP v1/v2/v3 Support GMRP Support static multicast
Management and Maintenance	Support Console and Web management methods Support SNMPv1/v2c Support unified PC software management
Technical Specifications
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.1p -Class of Service
Switch Properties
Priority Queue	4
VLAN ID	1-4096
IGMP Groups	256
MAC Table	1k
Switch Bandwidth	1Gbps
Switch Delay	<5μs
Interface
10/100Base Ports	Port numbers: 5 (2x10/100Base-F(x) + 3x10/100Base-T(x))
	Connector: 9 fixed F(x) (Single/multi-mode or SC/FC/ST port available) or RJ45
	Baud rate: 100Base-FX (fiber port), 10/100M for adaptive port
Serial Port	Port numbers: support 2 RS232 or RS485
	Connector: 6-core locking 3.08mm terminal block
	Baud rate: 300-115.2Kbps
CAN Port	Port numbers: 2
	Connector: 6-core locking 3.08mm terminal block
	Baud rate: 1MB/s(MAX)
Terminal Block for Power Input	2-core locking 5.08mm terminal block
Communication Distance
Twisted-pair	100m (CAT5/CAT5e cable)
Multi-mode Fiber	10/100Base multi mode: 1310nm 2km
Single-Mode Fiber	10/100Base single mode: 1310nm 20/40km; 1550nm 60/80km
LED Indicator Lights
LED	Power States LED, 10/100BaseF(x) LED, 10/100BaseT(x) LED, Data LED Support customer's own external indicator
Restart Button	Support
Reset	Support
Ring Dialing Code	Support
Power Requirements
Power Input	DC12-48V available
Full-load Consumption	<3.7W
Working Environment
Operating Temperature	-40°C~85°C
Storage Temperature	-40°C~85°C
Ambient Humidity	5%~95% ( non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din rail-mounted installation
Dimension	54mm x 138mm x 110mm
Weight	600g

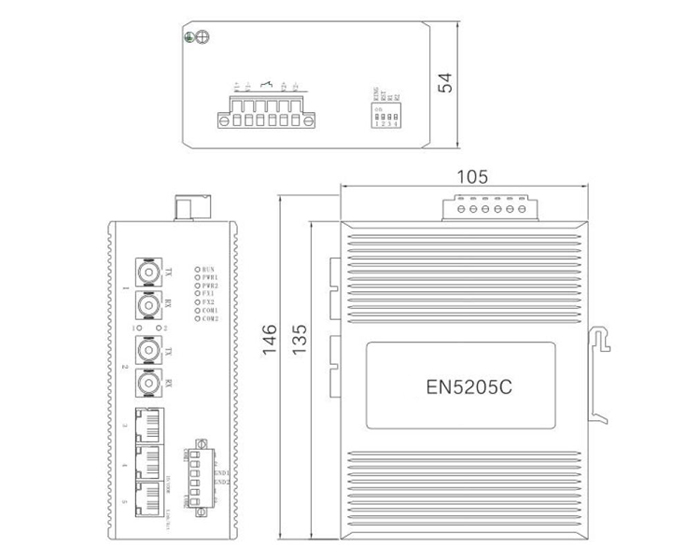

Dimensional Drawing (mm)

5-port din rail mannaged industrial switch dimension

Tips: What is the difference in the IP protection level of industrial switches?
When purchasing an industrial Ethernet switch, the user usually selects an industrial switch with the appropriate degree of protection according to the environment in which it is used.
For industrial switches, the IP protection level is the index of dust and water resistance, so what causes the difference in the index? This is mainly related to the housing material of the switch. Industrial switches are mainly made of aluminum alloy and galvanized steel. In comparison, aluminum alloys have a higher degree of protection.
Switches with a general protection rating of more than IP30 can be adapted to harsh industrial environments. The industrial switch provided by ATO.com has an IP40 degree of protection, which ensures that industrial switches can communicate securely and reliably.
