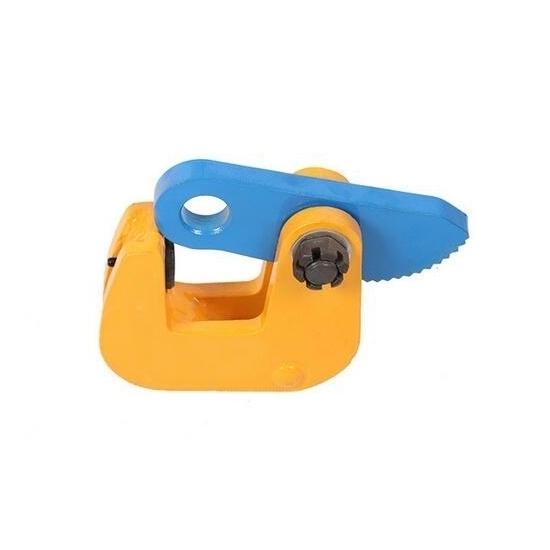

5 Ton Horizontal Plate Lifting Clamp

Horizontal plate lifting clamp is a specialized tool used in material handling and construction industries to lift and transport horizontal plates securely. They are often used in conjunction with lifting equipment such as cranes or hoists to safely lift and position heavy plates during installation or transportation tasks.

Feature

• The horizontal plate lifting clamp is suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position.
• This plate lifting clamp is manufactured from high quality carbon steel.

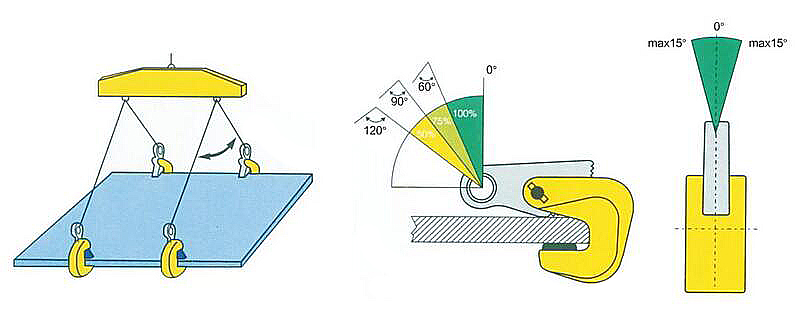

• The working load limit is the maximum load that the plate lifting clamp are authorized to support when used in pairs with a lift angle of 60°.

Specification

• Model: ATO-HLC-LB5
• Max. Working Load of 2 Plate Clamps: 5 Ton
• Jaw Opening: 0~80mm
• Weight: 11.5kg

Note*: During hoisting operations, 2 or multiple horizontal plate lifting clamps are required to be used together.

Application

Tips: What is the use of horizontal plate lifting clamp?

A horizontal plate lifting clamp is a specialized tool designed for lifting and handling horizontal plates, such as steel plates or concrete slabs. It is commonly used in construction, manufacturing, and other industries where heavy materials need to be lifted and moved safely.

The primary use of a horizontal plate lifting clamp is to securely grip and lift plates in a horizontal position. These clamps typically have a pair of jaws that can be adjusted to accommodate different plate thicknesses. The jaws have sharp teeth or gripping mechanisms that provide a strong and reliable hold on the plate.

By using a horizontal plate lifting clamp, workers can safely lift and transport plates without the need for manual handling or the use of multiple individuals. This tool increases efficiency and minimizes the risk of accidents or injuries associated with plate lifting. It is essential for tasks such as loading and unloading plates, positioning them during construction, or transferring them between workstations.
