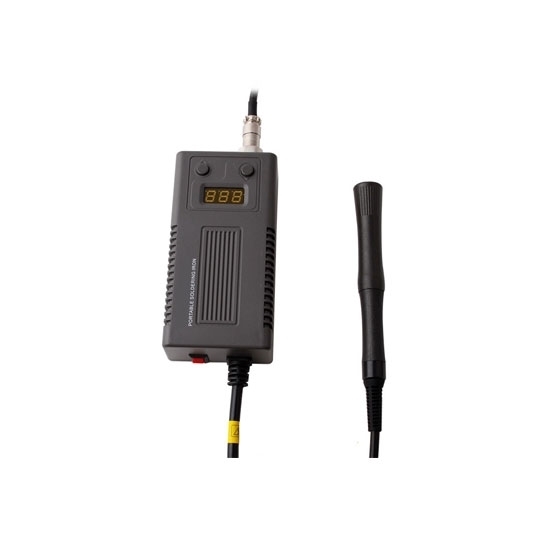

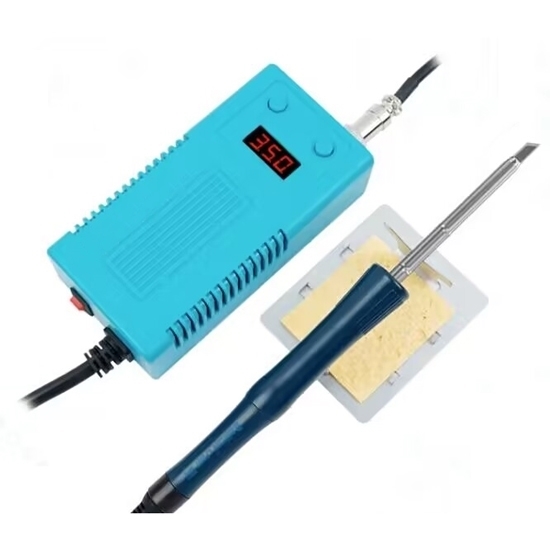

50W soldering station control temperature is 180°C~ 480°C, clear digital display, high efficiency, manually adjust the temperature, the gear automatically stores the memory.
|Tip to Ground Resistance
|Tip to Ground Potential
|Hand Piece Cord
|Adjustable Temperature Method

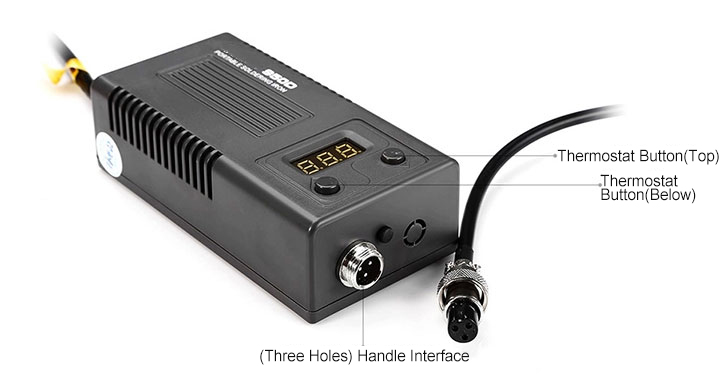

Digital Soldering Station Features
1. Split design, easy to replace the heating core, fast heating, light weight, easy to carry.
2. Silicone handle, high temperature material, soft wire, good hand feeling, prevent burns, safe to use.
3. Unique gear temperature adjustment function, temperature gear automatically remembers.
Tips: What should I do if the main unit is working properly and the soldering iron is not hot?

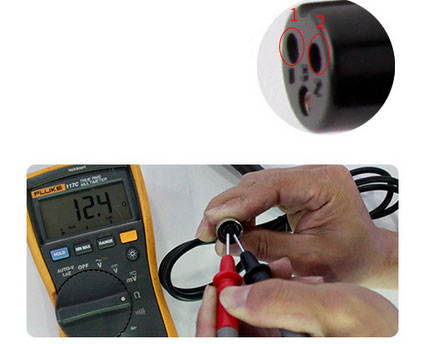

Step 1, adjust the resistance to the resistance file with a multimeter and measure the resistance of the handle interface. 1 hole 2 holes (heating) simultaneously measured resistance value is 10Ω, the data is normal, the handle is no problem, if there is no resistance, the second step is required.

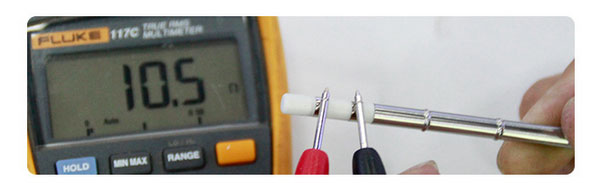

Step 2, disassemble the handle and measure the resistance of the T13 or T12 heater. The data indicates that the heater has no problem. If there is no resistance, the heater is damaged. If there is resistance, the handle and the host are tightly connected. If the handle does not heat up, the handle wire is damaged.
