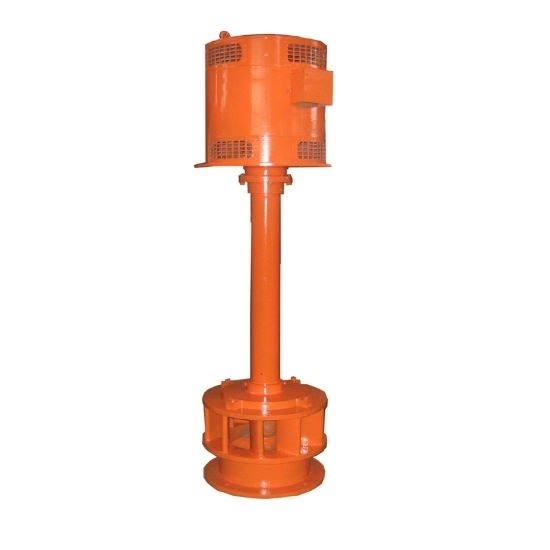

5KW Vertical Hydroelectric Turbine Generator, Axial Flow

Note: This water turbine generator cannot be used for drinking water.

Efficient rated power 5000-watt miniature hydroelectric generator offers exceptional performance, supporting either 220V or 380V systems. Vertical design allows for easy installation, a compact footprint, and exceptional durability. Axial-flow structure, designed for a head of 2.5-5.5 meters and a flow rate of 0.09-0.14 cubic meters per second, maximizes power output under low-head conditions. It provides stable performance for residential, agricultural, or community energy needs, suitable for both on-grid and off-grid applications.

Sepcification

Feature

• Vertical hydroelectric turbine generator is powerful, stable, reliable, quiet, and highly efficient.
• Efficiently utilizes water energy, is energy-saving and environmentally friendly, and is economical and practical.
• Domestic hydroelectric generators typically feature an adjustable design that adjusts to changes in water flow. Advanced axial flow design provides reliable energy production.
• A wide range of uses and is suitable for various living scenarios.

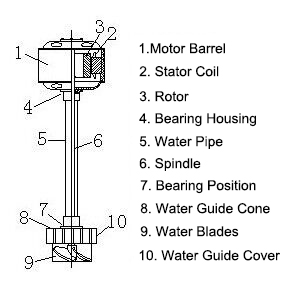

Details

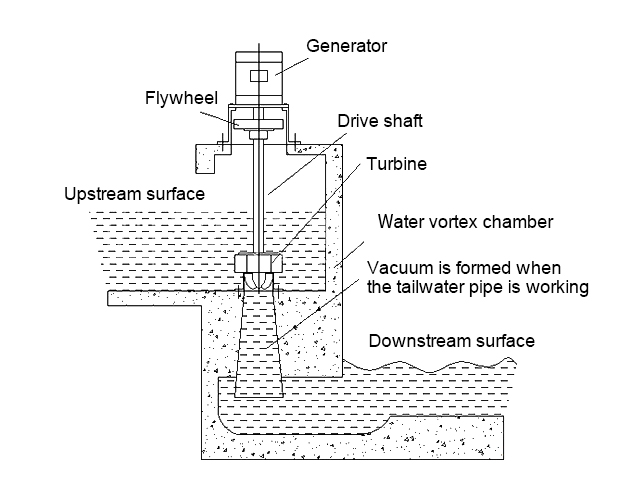

Installation Diagram

Application

Tips: What maintenance does the 5kw mini hydroelectric generator turbine require?

Regular maintenance includes inspecting the turbine's rotor and bearings, clearing debris from the system, and ensuring the generator is corrosion-free. Annual maintenance is recommended. A more detailed installation and maintenance guide will be provided with your purchase for more detailed maintenance instructions.
