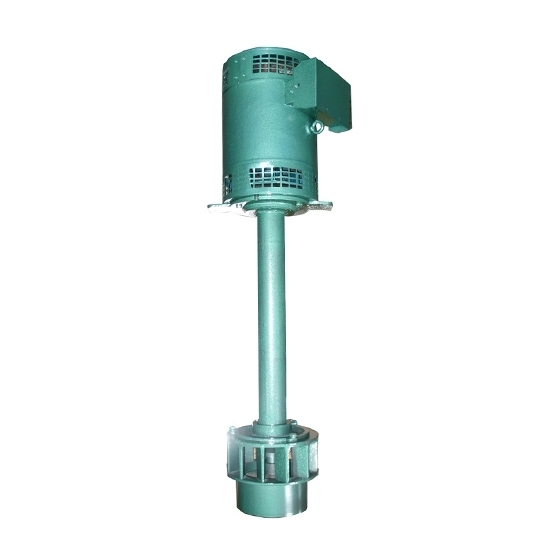

2kW Vertical Hydroelectric Turbine Generator, Axial Flow

Note: This 3kW vertical hydroelectric turbine generator cannot be used for drinking water.

Portable 2000 Watt vertical hydro generator utilizes an axial flow design, requires only 4-7m head and 0.09-0.11m³/s flow, delivers 220V output, features a removable design for easy maintenance, ideal small water turbine for low-flow water sources.

Specification

Features

• Efficient energy production: 2kW hydro power generator achieves optimal power conversion with minimal water resources.
• Advanced blade technology: Fewer blades design reduces vibration and enhances operational stability.
• Adaptable installation: Miniature hydropower turbine suits various low-head water applications.
• Sustainable operation: Environmentally friendly, produces clean energy.
• Flexible application: Perfect portable water turbine for small dams, streams and remote power needs.

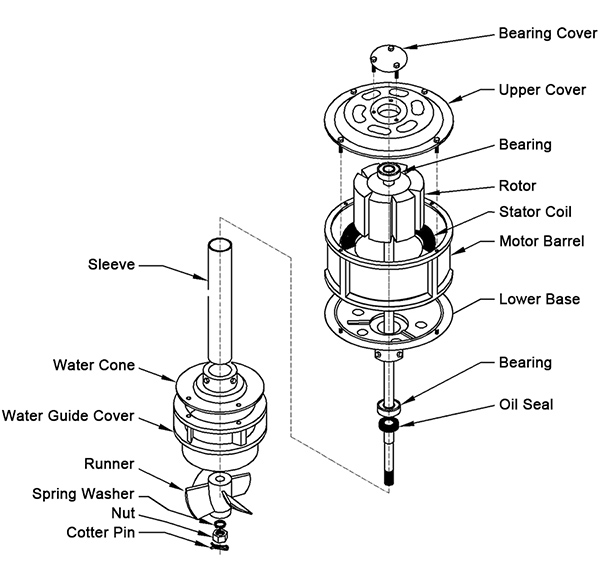

Structure Diagram

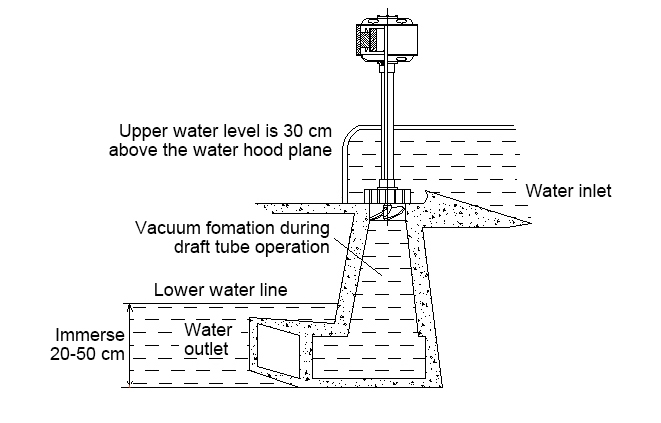

Installation Diagram

Application

Tips: Does a 2000W vertical hydroelectric turbine generator for home require a dam?

A domestic 2000 Watt hydro turbine generator typically doesn't require a large dam, but a low weir or small dam is generally required. Its primary function is to slightly raise the water level, creating the slight head required for power generation and providing a stable water diversion. Run-of-the-river design has a minimal environmental impact, as water flows back downstream. However, establishing such a facility may require consultation with and obtaining permission from local water authorities.
