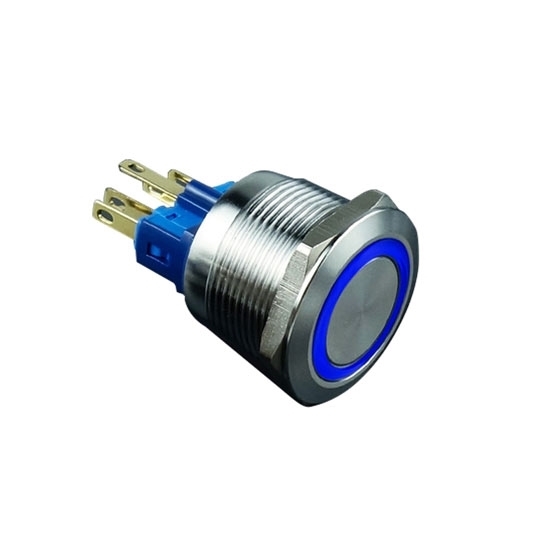

    5V Momentary Push Button Switch, 1 NO + 1 NC

    5 out of 5 based on 2 reviews | Write a review
    $19.98
    Waterproof momentary push button switch material stainless steel, 5 volt, 22mm size, 1 NO + 1 NC, LED colors are optional red, yellow, blue, green and white, explosion-proof grade IK08, can be used in harsh environments.
    SKU: ATO-PBS-05V
    *
    *
    This product has a minimum quantity of 5
    Free Shipping Worldwide
    Delivery date: 6-12 days

    22mm momentary push button switch rated volateg 5V, normally open and  normally closed, stainless steel material, waterproof, corrosion resistance, used in various environments, and can also be used in harsh outdoor environments.

    Specification:

    Modle ATO-PBS-05V
    LED lamp voltage 5V
    Installation Size 22mm
    Action Form Reset/Self-lock
    Contact Combination 1 NO + 1 NC, 2 NO + 2 NC (Can be customized)
    Rated Capacity 250V/3A, 12V/5A, 24V/3A
    Lamp Bead Color Red, yellow, blue, green, white
    Explosion Proof Grade IK08
    Protection Level IP65
    Temperature Range -25℃~80℃
    Operating Pressure 3N~5N
    Shell Material Stainless steel
    Button Material PC Plastic
    Internal Moving Contact Silver Alloy
    Base Material Nylon PA66
    Nut Material Copper Nickel Plated
    Mechanical Life 1 Million Times
    Electrical Life 200,000 Times
    Weight 22.8g
    Warranty 12 Months

    5V Momentary Push Button Switch Dimension (unit: mm)
    Momentary push button switch dimension
    Momentary Push Button Pin Circuit Arrangement Diagram
    Momentary push button pin circuit arrangement diagram
    Tips: Precautions for Button Switch Welding

    Any incorrect welding operation may cause deformation of the plastic parts of the product, poor contact of the switch, failure of the switch with lock, etc. When users use pin-type button switches and signal lights, product damage may occur due to improper welding operations. Therefore, users are requested to pay attention to the following points during welding operations:

    1. Choose a suitable electric soldering iron to speed up the welding speed. It is recommended to use a 20W electric soldering iron, which takes 3 seconds to complete the soldering, and the soldering temperature is best controlled at 230°.
    2. The amount of flux must be appropriate. When soldering, try to put the switch pin down to avoid multiple soldering, which may cause the pin to break.
    3. Try to use plug-in terminals for connection and avoid soldering connections.
    4. Do not change the direction of the button switch pins randomly, so as not to reflect the changes in the internal structure, which may cause abnormalities in the switch.
    5. Select the appropriate lamp bead voltage to avoid the situation that the lamp bead does not light up or burns out due to improper voltage.
