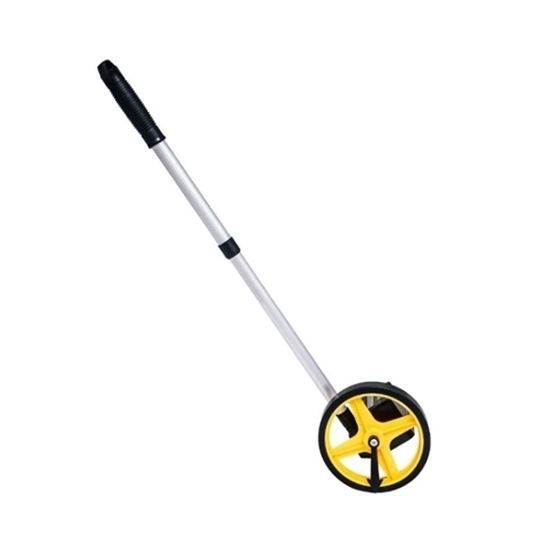

6 Inch Small Distance Measuring Wheel

Buy the 6 inch road measuring wheel online, with a measuring range of 9999.9mm, is the ideal measuring wheel for property valuers, law enforcement officers, builders and gardeners to measure property boundaries.

Specification

• Model: ATO-MW-XG160
• Extension Height: 100cm (40 inch)
• Folded Height: 43cm (16 inch)
• Wheel Diameter: 16cm (6 inch)
• Accuracy:+0.5%
• Net Weight: 0.75kg
• Tire Thickness: 9mm
• Measuring Range: 9999.9mm

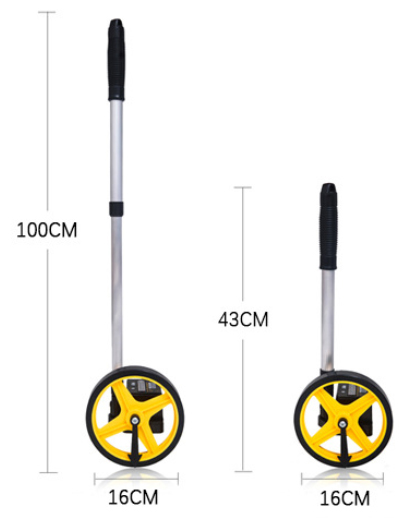

Dimension Unit (mm)

Details

Features

• Rolling measure wheel without extra battery power supply, more convenient to use.
• The reading window is designed with a magnifying glass to enlarge the font for easy reading.
• Key reset zero/magnifying glass setting for easy reading.
• The digital measuring wheel counts by electromagnetic induction principle, and the data is displayed on the LCD screen for easy reading.
• Scroll the wheel forward to increase the number, and backward to reduce the number.
• The folding structure can be easily put into the carry bag, easy to carry.

Applications

Tips: How to use the measuring wheel?

Press the reset button of the distance measuring wheel counter, then start measuring, the count increases when moving forward, the count decreases when moving backward, and finally, the distance can be obtained by the number of revolutions of the distance measuring wheel. The mechanical distance measuring wheel is designed with good quality, high precision, small size, lightweight, and durability, which is widely used for measuring and evaluating construction projects such as road works, pipeline laying works, and wire and cable works.
