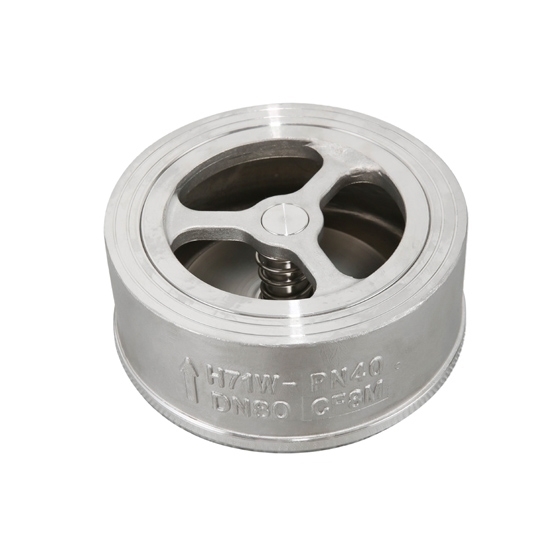

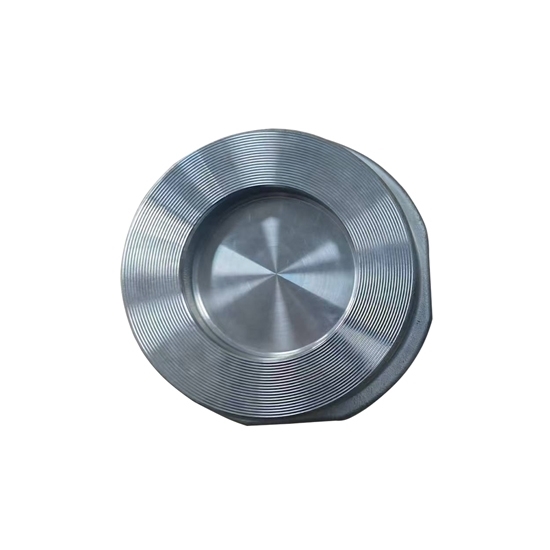

    6" Stainless Steel Wafer Check Valve

    5 out of 5 based on 1 reviews | Write a review
    $225.58
    High quality wafer check valve for sale online. 6 inch non return valve with 304/316 stainless steel, DN 150 and PN 4 MPa for water/oil/gas, usually used in space limited applications such as HVAC systems, water treatment plants and industrial processes.
    *
    SKU: ATO-SSWCV-06
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Quality wafer check valve, DN150, PN 4 MPa, is used to regulate and control the flow of fluid through a pipeline while preventing backflow. 6” stainless steel wafer type check valve can transfer water, gas and oil, suitable for aerospace or marine applications.

    Specifications

    • Model: ATO-H71W
    • Check Valve Type: Wafer
    • Nominal Diameter: 6 inch (150mm)
    • Nominal Pressure: 4 MPa
    • Product Material: 304/316 Stainless Steel
    • Connection Form: Clip
    • Temperature Range: -20°C~180°C
    • Weight: 6.9kg
    • Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

    Details

    Wafer check valve dimensions

    Main Part Materials
    NO. Part Name Materials QTY
    1 BODY CF8/CF8M 1
    2 DISC CF8/CF8M 1
    3 SPRING S201/S304 1
    4 CAP CF8/CF8M 1
    Dimension (Unit: mm)
    Φd D D1 L±1.5
    135 202 210 95


    Applications

    Wafer check valve is a type of check valve that is used to regulate and control the flow of fluids through pipelines while preventing backflow. High quality wafer check valve is typically used in applications where space is limited, such as in HVAC systems, water treatment plants, and industrial processes.

    Wafer check valve application

    Tips:  Stainless Steel Wafer Check Valve vs. CPVC Wafer Check Valve

    Stainless steel wafer check valves and CPVC (Chlorinated polyvinyl chloride) wafer check valves are two different types of wafer check valves that are used in different applications. Here are some of the key differences between these two types of valves:

    • Material: The primary difference between these two types of valves is the material they are made from. Stainless steel wafer check valves are made from stainless steel, which is highly resistant to corrosion and can withstand high temperatures and pressures. CPVC wafer check valves are made from a thermoplastic material that is resistant to corrosion and can withstand high temperatures and pressures.
    • Chemical Compatibility: Stainless steel wafer check valves are compatible with a wide range of fluids and chemicals, including acids and alkalis. CPVC wafer check valves are typically used in applications where the fluid being conveyed is non-corrosive and compatible with the thermoplastic material.
    • Temperature Range: Stainless steel wafer check valves can withstand a wider range of temperatures than CPVC wafer check valves.
    • Pressure Rating: Stainless steel wafer check valves typically have a higher pressure rating than CPVC wafer check valves.
