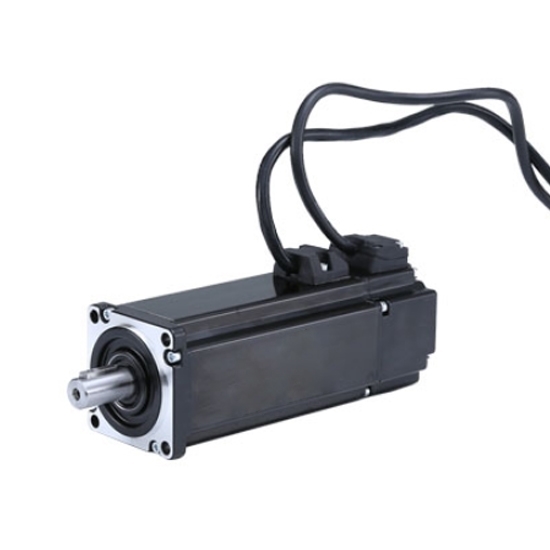

    600W AC Servo Motor, 1.9 Nm, 3000 rpm

    $476.15
    Fair price 600W AC brushless servo motor for sale online. Features 1.9 Nm rated torque, 3000 rpm rated speed. Single or three phase 220V AC input voltage, 3.5A rated current. IP54 for body, long life and high precision.
    SKU: ATO-SERVO-60S600
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    600 watt electric strong AC servo motor, 3000 rpm rated speed, 1.9 Nm rated torque, peak torque of 5.4 Nm, 2500 PPR incremental encoder or 17/33 bit absolute encoder can be chosen.

    Specification

    Basics Model ATO60SY-M01930S
    Matched Drive Model ATO-SG-AS151000 (Click it to the product page)
    Square Flange Size 60 mm
    Rated Power 600 W
    Rated Voltage Single phase or three phase 220V AC
    Rated Current 3.7 A
    Rated Speed 3000 rpm
    Max Speed 3600 rpm
    Rated Torque 1.9 Nm
    Peak Torque 5.4 Nm
    Rotor Inertia 0.526x10-4 KG.m2
    Weight 2.1 Kg
    Technical Parameters Number of Pole Pairs 4
    Brake Voltage 24V DC
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP54
    Warranty 12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Features

    • Accuracy: ATO AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
    • Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
    • Adaptability: ATO heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
    • Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
    • Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
    • Safety: ATO AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

    Installation Dimension (unit=mm)

    Servo Motor without Brake Dimension
    60 series 600W servo motor dimension

    L (Incremental encoder): 154mm, L (Absolute encoder): 159mm

    Servo Motor with Brake Dimension

    60 series 600W servo motor with brake dimension

    L (with brake): 192mm

    Note:
    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Winding and Encoder Connection

    1. For servo motor winding

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number 1 2 3 4 Socket Number 1 2
    Brake Voltage 24V DC

    2. For incremental encoder

    Incremental Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number 2 3 9 4 7 13 14 5 6 10 11 8 12 15 1

    3. For absolute encoder

    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: Working principle of servo motor

    Servo motor mainly depends on pulse for fixing position, servo motor receives 1 pulse, then rotate for 1 pulse relative angle to realize displacement. Servo motor has function to send out pulse, therefore, servo motor would send out relative quantity pulse when rotating a certain angle. Then, it acts in cooperation with servo motor received pulse, or called closed loop. In the case, system knows the pulse quantity sent to servo motor, and the pulse received in return, then can control the motor operation accurately, and realize accurate position fixing, up to 0.001mm. The rotor inside servo motor is permanent magnet, U/V/W 3 phase electricity controlled by driver forms electromagnetic field, rotor rotates under action of magnetic field, simultaneously the coder inside motor gives signal back to driver, driver compares the feedback value and target value, adjust rotating angle of rotor.
