    750W AC Servo Motor, 3 phase, 220V, 3000 rpm

    750W AC Servo Motor, 3 phase, 220V, 3000 rpm

    5 out of 5 based on 1 reviews | Write a review
    $493.25

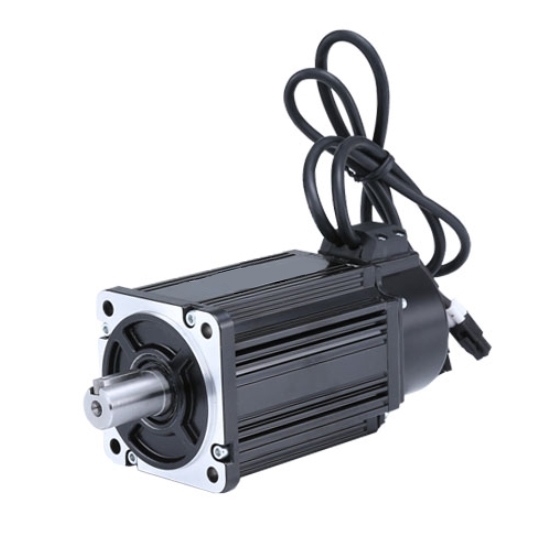

    The 3A 220V AC brushless servo motor, 1hp (750W) power rating, 2.39 Nm rated torque, peak torque of 7.1N.m, peak current of 9A, rated speed of 3000 rpm, 2,500 PPR incremental encoder attached. Low cost and high speed servo motor, manufacturer direct sale.
    SKU: ATO-SERVO-80S750
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days
    Related products
    1.5 kW AC Servo Motor, 5 Nm/15 Nm, 3000 rpm

    1.5 kW AC Servo Motor, 5 Nm/15 Nm, 3000 rpm

    $623.23
    SKU: ATO-SERVO-110S1500
    220V supply voltage servo motor, 5 Nm rated holding torque, power rating of 1.5 kW, rated speed of 3000rpm, maximum output torque up to 15 Nm. It is available in flange sizes of 110mm square flange size, with brakes and encoder options available. Reasonable price and manufacturer direct sale.
    1.8 kW AC Servo Motor, 6 Nm/18 Nm, 3000 rpm

    1.8 kW AC Servo Motor, 6 Nm/18 Nm, 3000 rpm

    $659.15
    SKU: ATO-SERVO-110S1800
    High speed control 1.8 kW AC servo motor, rated speed of 3000 rpm, 6 Nm rated torque, with max output speed of 3600 rpm, peak torque up to 18 Nm. Brushless design, equipped with a 2,500 PPR incremental encoder or absolute encoder. Favorable price and manufacturer direct sale.
    2 kW High Torque AC Servo Motor, 7.7Nm/22Nm, 2500 rpm

    2 kW High Torque AC Servo Motor, 7.7Nm/22Nm, 2500 rpm

    $844.78
    SKU: ATO-SERVO-130S2000
    High torque brushless AC servo motor, 2 kW, 7.7 Nm rated torque, 2500 rpm rated speed, and maximum output torque up to 22 Nm, provide excellent dynamic response. It is widely used in factory automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.
    1 kW 1000 rpm 10 Nm Brushless AC Servo Motor

    1 kW 1000 rpm 10 Nm Brushless AC Servo Motor

    $664.62
    SKU: ATO-SERVO-130S1000
    High quality brushless AC servo motor, with 1 kW power rating, 1000 rpm, 10N.m rated torque, peak torque up to 25N.m, 220V supply voltage, equipped with a 2,500 PPR incremental encoder. It is available in a 130mm square flange size, with a brake option. Low cost and manufacturer direct sale.
    1.2 kW AC Servo Motor, 3000 rpm, 4Nm/12Nm

    1.2 kW AC Servo Motor, 3000 rpm, 4Nm/12Nm

    $589.17
    SKU: ATO-SERVO-110S1200
    1.2 kW power rating servo motor, brushless design, rated torque of 4 Nm, maximum output torque of 12N.m, 3000 rpm, 220V AC supply voltage, equipped with a 2,500 PPR incremental/ absolute encoder.

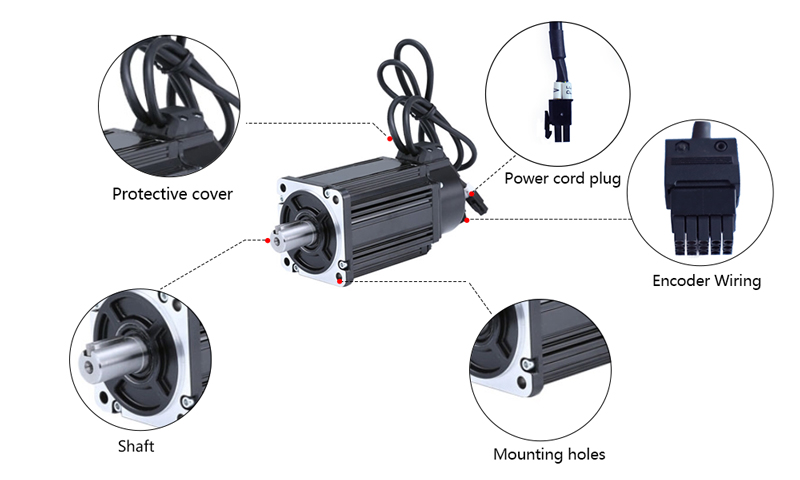

    750W 2.39Nm 220V AC input servo motor, 3000 rpm precise speed control, maximum speed up to 6000rpm. It is widely used in factory automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

    750 Watt Servo Motor Specification

    Basics Model ATO80SY-M02430
    Matched Drive Model ATO-SG-AS151000
    Weight 3 Kg
    Rated Power 750 W
    Rated Voltage Three phase 220V AC
    Rated Current 3.5 A
    Rated Speed 3000 rpm
    Max Speed 3600 rpm
    Rated Torque 2.4 N.m
    Peak Torque 7.2 N.m
    Rotor Inertia 1.96x10-4 KG.m2
    Technical Parameters Number of Pole Pairs 4
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP54
    Warranty  12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Installation Dimension (unit=mm)

    Servo Motor without Brake Dimension

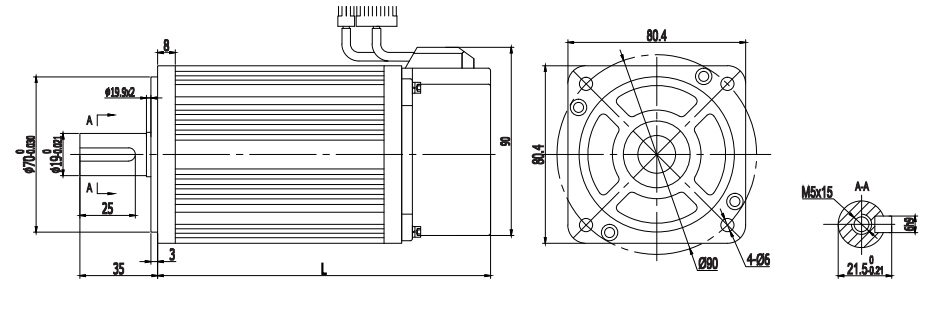

    80 series servo motor dimension

    L (Incremental/Absolute encoder): 158mm

    Servo Motor with Brake Dimension

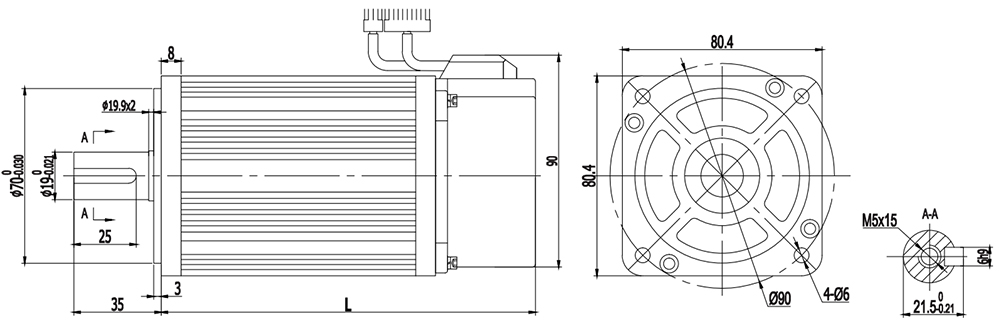

    80 series servo motor with brake dimension

    L (with brake): 198mm

    Note:
    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Winding Connection Table

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number (Aerial Plug) 2 3 4 1 Socket Number 1 2
    Socket Number (Lead Type) 1 2 3 4 Brake Voltage 24V DC

    The Encoder Connection Table

    Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number (Aerial Plug) 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1
    Socket Number (Lead Type) 2 3 9 4 7 13 14 5 6 10 11 8 12 15 1
    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: The relationship between line number and accuracy of servo motor encoder

    Nowadays, many people think encoder has higher line number, then servo motor control accuracy would be higher, this leads to some people simply thought the poor equipment accuracy issue can be solved by using servo motor with high line number encoder. With mark line showing 10000, this is an ignorant pursuit, pay high cost for this encoder, it might be not helpful, instead it might bring much trouble.
    Encoder type should match the property of servo motor. Mark line of DC servo motor encoder should match groove number of DC motor. Mark line of AC servo motor encoder should match the pole number and phase number of AC servo motor. The purpose is mark line is the integral multiple of motor stepping, in the case, inspection signal of code would be integer, no decimal, no deviation. Refer to incremental type and absolute type encoder, the difference is incremental type only has second hand, the same as the timer without minute hand and hour hand.
    The main function of encoder is to check servo operation step, revolution, can output the information for actual operation, i.e. origin position, steering etc. The system purpose is accurate control for the driven work piece position, displacement and speed. The control accuracy is unrelated with encoder mark line, as long as encoder can accurately detect the steps.

    How to wire ATO servo driver and set Jog mode

    The video shows the basic connection of the ATO servo motor kit and how to initialize the servo driver and how to set the JOG mode.

    Introduce of servo motor analog control

    This video introduces the analog control of ATO servo motor, as well as its position control mode (pulse type), torque control mode, to achieve the purpose of rapid adjustment.
