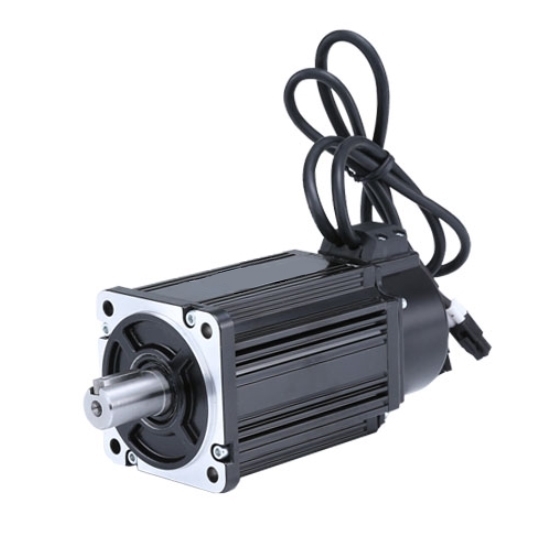

    1 kW 2500 rpm 4Nm/10Nm Brushless AC Servo Motor

    1 kW 2500 rpm 4Nm/10Nm Brushless AC Servo Motor

    5 out of 5 based on 2 reviews | Write a review
    $424.23
    Reasonable price and high quality brushless AC servo motor, rated speed of 2500 rpm, 1000W rated power, 4N.m rated torque, 220V single or three phase input, equipped with a 2,500 PPR incremental/absolute encoder, manufacturer direct sale.
    SKU: ATO-SERVO-80S1000
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days
    Related products
    400W Brushless AC Servo Motor, three phase

    400W Brushless AC Servo Motor, three phase

    $474.31
    SKU: ATO-SERVO-60S400
    Brushless design, precise speed control servo motor, 1.27 N.m, 3000 rpm, 400W, and equipped with a 2,500 PPR incremental/ absolute encoder. It is widely used in factory automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.
    600W 3000rpm High Torque AC Servo Motor

    600W 3000rpm High Torque AC Servo Motor

    $476.15
    SKU: ATO-SERVO-60S600
    Cheap Price AC servo motor, rated torque of 1.91N.m, 600 Watt power rating, provides 3000 rpm rated speed. Single or three phase 220V AC input, rated current of 3.5A. IP54 for body, long life and high reliable, manufacturer direct sale.
    1.3 kW AC Servo Motor, 2500 rpm, 5Nm/15 Nm

    1.3 kW AC Servo Motor, 2500 rpm, 5Nm/15 Nm

    $678.23
    SKU: ATO-SERVO-130S1300
    220V AC supply voltage brushless servo motor, single or three phase input, power ratings up to 1.3 kW, rated speed of 2500 rpm, rated torque of 5 Nm, maximum output torque up to 15 Nm. It is available in flange sizes of 130mm square flange size, with brakes and encoder options.
    1.5 kW AC Servo Motor, 5 Nm/15 Nm, 3000 rpm

    1.5 kW AC Servo Motor, 5 Nm/15 Nm, 3000 rpm

    $623.23
    SKU: ATO-SERVO-110S1500
    220V supply voltage servo motor, 5 Nm rated holding torque, power rating of 1.5 kW, rated speed of 3000rpm, maximum output torque up to 15 Nm. It is available in flange sizes of 110mm square flange size, with brakes and encoder options available. Reasonable price and manufacturer direct sale.
    800W AC Servo Motor, 4Nm/12Nm, 2000 rpm

    800W AC Servo Motor, 4Nm/12Nm, 2000 rpm

    $555.31
    SKU: ATO-SERVO-110S800
    Low cost 800 watt brushless servo motor, 2000 rpm, 220V AC single or three-phase input, rated torque of 4N.m, peak torque value up to 12N.m, 2,500 PPR incremental/ absolute encoder attached, manufacturer direct sale.

    Brushless design AC servo motor, power ratings up to 1 kW, rated speed of 2500rpm, rated torque of 4N.m, peak torque up to 10N.m. It is widely used in factory automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

    1 kW Servo Motor Specification

    Basics Model ATO80SY-M04025
    Matched Drive Model ATO-SG-AS302600
    Weight 3.8 Kg
    Rated Power 1000 W
    Rated Voltage Single phase or three phase 220V AC
    Rated Current 4.2 A
    Rated Speed 2500 rpm
    Max Speed 3000 rpm
    Rated Torque 4 N.m
    Peak Torque 10 N.m
    Rotor Inertia 2.8x10-4 KG.m2
    Technical Parameters Number of Pole Pairs 4
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP54
    Warranty  12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Installation Dimension (unit=mm)

    Servo Motor without Brake Dimension

    80 series servo motor dimension

    L (Incremental/Absolute encoder): 197mm

    Servo Motor with Brake Dimension

    80 series servo motor with brake dimension

    L (with brake): 237mm

    Note:
    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Winding Connection Table

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number (Aerial Plug) 2 3 4 1 Socket Number 1 2
    Socket Number (Lead Type) 1 2 3 4 Brake Voltage 24V DC

    The Encoder Connection Table

    Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number (Aerial Plug) 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1
    Socket Number (Lead Type) 2 3 9 4 7 13 14 5 6 10 11 8 12 15 1
    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: Servo motor does not run when the pulse is output, how to solve?

    1. Monitor the current pulse output value of controller and check if pulse output indicator lamp flashes to confirm that the controller has performed command pulse and has output pulse normally.
    2. Check if the control cable, power cable, encoder cable between controller and driver are matched incorrectly damaged or contacted poorly.
    3. Check if the brake of servo motor equipped with brake has been turned on.
    4. Monitor the panel of servo driver to confirm if the pulse command has been input.
    5. Run command is normal.
    6. For control mode, always choose position control mode.
    7. Check if the type of input pulse set by servo driver matches with that of command pulse.
    8. Ensure that positive side drive prohibition, negative side drive prohibition signals and deviation counter reset signal are not input and the servo motor runs normally if load is removed, then check the mechanical system.
