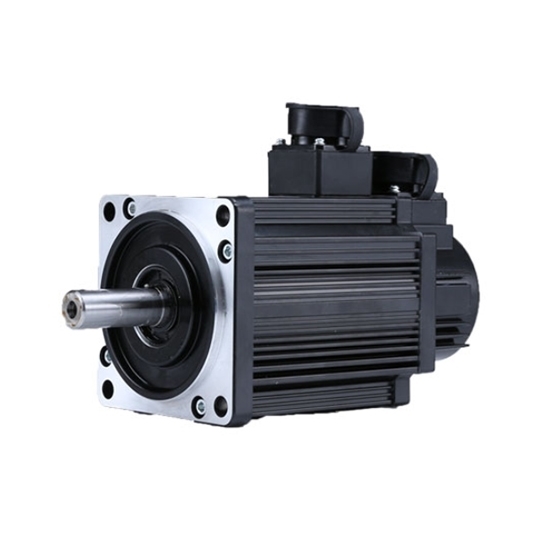

    1 kW 1000 rpm 10 Nm Brushless AC Servo Motor

    1 kW 1000 rpm 10 Nm Brushless AC Servo Motor

    5 out of 5 based on 1 reviews | Write a review
    $664.62
    High quality brushless AC servo motor, with 1 kW power rating, 1000 rpm, 10N.m rated torque, peak torque up to 25N.m, 220V supply voltage, equipped with a 2,500 PPR incremental encoder. It is available in a 130mm square flange size, with a brake option. Low cost and manufacturer direct sale.
    SKU: ATO-SERVO-130S1000
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days
    Related products
    1.3 kW AC Servo Motor, 2500 rpm, 5Nm/15 Nm

    1.3 kW AC Servo Motor, 2500 rpm, 5Nm/15 Nm

    $678.23
    SKU: ATO-SERVO-130S1300
    220V AC supply voltage brushless servo motor, single or three phase input, power ratings up to 1.3 kW, rated speed of 2500 rpm, rated torque of 5 Nm, maximum output torque up to 15 Nm. It is available in flange sizes of 130mm square flange size, with brakes and encoder options.
    2 kW High Torque AC Servo Motor, 7.7Nm/22Nm, 2500 rpm

    2 kW High Torque AC Servo Motor, 7.7Nm/22Nm, 2500 rpm

    $844.78
    SKU: ATO-SERVO-130S2000
    High torque brushless AC servo motor, 2 kW, 7.7 Nm rated torque, 2500 rpm rated speed, and maximum output torque up to 22 Nm, provide excellent dynamic response. It is widely used in factory automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.
    1 kW 2500 rpm 4Nm/10Nm Brushless AC Servo Motor

    1 kW 2500 rpm 4Nm/10Nm Brushless AC Servo Motor

    $424.23
    SKU: ATO-SERVO-80S1000
    Reasonable price and high quality brushless AC servo motor, rated speed of 2500 rpm, 1000W rated power, 4N.m rated torque, 220V single or three phase input, equipped with a 2,500 PPR incremental/absolute encoder, manufacturer direct sale.
    1.2 kW AC Servo Motor, 3000 rpm, 4Nm/12Nm

    1.2 kW AC Servo Motor, 3000 rpm, 4Nm/12Nm

    $589.17
    SKU: ATO-SERVO-110S1200
    1.2 kW power rating servo motor, brushless design, rated torque of 4 Nm, maximum output torque of 12N.m, 3000 rpm, 220V AC supply voltage, equipped with a 2,500 PPR incremental/ absolute encoder.
    1.5 kW AC Servo Motor, 5 Nm/15 Nm, 3000 rpm

    1.5 kW AC Servo Motor, 5 Nm/15 Nm, 3000 rpm

    $623.23
    SKU: ATO-SERVO-110S1500
    220V supply voltage servo motor, 5 Nm rated holding torque, power rating of 1.5 kW, rated speed of 3000rpm, maximum output torque up to 15 Nm. It is available in flange sizes of 110mm square flange size, with brakes and encoder options available. Reasonable price and manufacturer direct sale.

    Three phase 220V AC input servo motor, power ratings up to 1000 watt, rated speed of 1000 rpm, peak torque of 25 N.m. It is widely used in factory automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

    1kW Servo Motor Specification

    Basics Model ATO130SY-M10010
    Matched Drive Model ATO-SG-AS302600
    Weight 10 Kg
    Rated Power 1000 W
    Rated Voltage Three phase 220V AC
    Rated Current 4.5 A
    Rated Speed 1000 rpm
    Max Speed 1500 rpm
    Rated Torque 10 N.m
    Peak Torque 25 N.m
    Rotor Inertia 1.94x10-3 KG.m2
    Technical Parameters Number of Pole Pairs 4
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP65
    Warranty  12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Installation Dimension (unit=mm)

    Servo Motor without Brake Dimension

    130 series servo motor dimension

    L (Incremental/Absolute encoder): 212 mm

    Servo Motor with Brake Dimension

    130 series servo motor with brake dimension

    L1 (with brake): 262 mm

    Note:
    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Winding Connection Table

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number 2 3 4 1 Socket Number 1 2
    Brake Voltage 24V DC

    The Encoder Connection Table

    Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1
    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: Functions of ATO AC servo system

    1. Control of high power load with small power command signal.
    2. In the absence of mechanical connection, the input shaft controls the output shaft at the far distance to realize the long distance synchronous drive.
    3. Make the output mechanical displacement accurately track electrical signals, such as recording and indicating instruments.

    How to wire ATO servo driver and set Jog mode

    The video shows the basic connection of the ATO servo motor kit and how to initialize the servo driver and how to set the JOG mode.

    Introduce of servo motor analog control

    This video introduces the analog control of ATO servo motor, as well as its position control mode (pulse type), torque control mode, to achieve the purpose of rapid adjustment.

    Existing reviews of 1 kW 1000 rpm 10 Nm Brushless AC Servo Motor
    Modification of the 1KW brushless AC servo motor
    I want to make this 1KW brushless AC servo motor rotate continuously. What modifications need to be made?
    From: Ronald | Date: 03/03/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Just the servo drive need to be connected with the PLC or other analog control signals.
