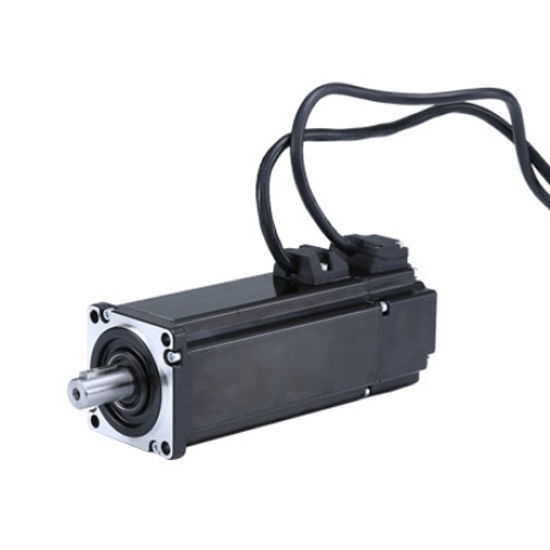

    400W Brushless AC Servo Motor, three phase

    Brushless design, precise speed control servo motor, 1.27 N.m, 3000 rpm, 400W, and equipped with a 2,500 PPR incremental/ absolute encoder. It is widely used in factory automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.
    SKU: ATO-SERVO-60S400
    Free Shipping Worldwide
    Delivery date: 6-20 days

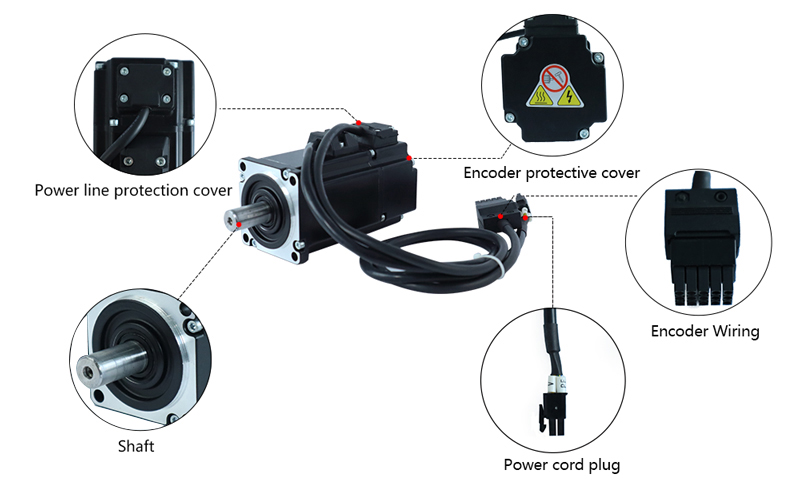

    The brushless ac 400W servo motor, with a rated speed of 3000 rpm, maximum speed of 3600 rpm, single or three phase 220V input, provide excellent dynamic response. It is available in a 60mm square flange size, high quality and manufacturer direct sale.

    400W AC Servo Motor Specification

    Basics Model ATO60SY-M01330S
    Matched Drive Model ATO-SG-AS15400
    Weight 1.70 Kg
    Rated Power 400 W
    Rated Voltage Single phase or three phase 220V AC
    Rated Current 2.7 A
    Rated Speed 3000 rpm
    Max Speed 3600 rpm
    Rated Torque 1.27 N.m
    Peak Torque 3.81 N.m
    Rotor Inertia 0.407x10-4 KG.m2
    Technical Parameters Number of Pole Pairs 4
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP54
    Warranty  12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Installation Dimension (unit=mm)

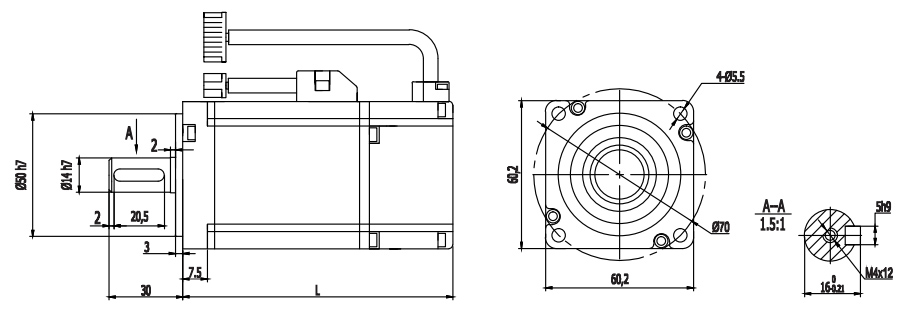

    Servo Motor without Brake Dimension60 series servo motor dimension

    L (Incremental encoder): 133mm, L (Absolute encoder): 138mm

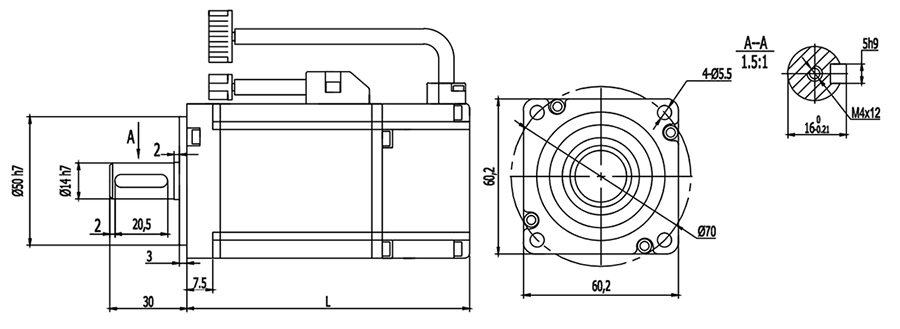

    Servo Motor with Brake Dimension

    60 series servo motor with brake dimension

    L (with brake): 171mm

    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Winding Connection Table

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number 1 2 3 4 Socket Number 1 2
    Brake Voltage 24V DC

    The Encoder Connection Table

    Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number 2 3 9 4 7 13 14 5 6 10 11 8 12 15 1
    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: Differences between brush motor and brushless motor

    Brush motor has a low cost, simple structure, big starting torque, wide speed range and easy control and it requires to be maintained which is convenient (change carbon brush), generates electromagnetic interference and has requirements on environment. Therefore, it can be used in general industries and private use which are sensitive to cost.

    Brushless motor has a small volume, light weight, big capacity, fast response, high speed, small inertia, smooth shifting and stable torque. Its control is complicated and easy to realize intelligence. Moreover, its electronic commutation is flexible and can choose square wave commutation or sine wave commutation. Motor can be free from maintenance, and it has a high efficiency, low operating temperature, small electromagnetic radiation and long service life, and it can be applied in various environments.
