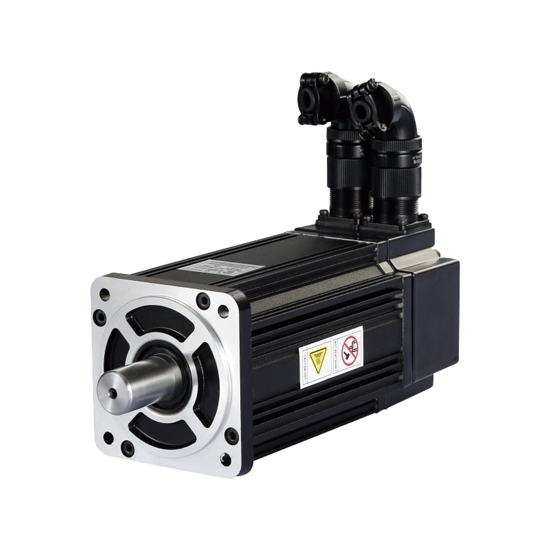

    1 hp (750W) AC Servo Motor, 2.4 Nm, 3000 rpm

    $518.97
    1 hp (750W) AC brushless servo motor, 2.4 Nm rated torque, peak torque of 7.2 Nm, rated current of 3.5A, rated speed of 3000 rpm, 2,500 PPR incremental encoder attached. Low cost and high speed servo motor, manufacturer direct sale.
    SKU: ATO-SERVO-80S750
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    750 watt AC servo motor for sales, brushless structure design, 2.4 Nm torque, 3000 rpm precise speed control, maximum speed up to 3600rpm. 1 hp electric servo motor is widely used in industrial automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

    Specification

    Basics Model ATO80SY-M02430
    Matched Drive Model ATO-SG-AS151000 (Click it to the product page)
    Square Flange Size 80 mm
    Rated Power 750 W (1 hp)
    Rated Voltage Single phase or three phase 220V AC
    Rated Current 3.5 A
    Rated Speed 3000 rpm
    Max Speed 3600 rpm
    Rated Torque 2.4 Nm
    Peak Torque 7.2 Nm
    Rotor Inertia 1.96x10-4 KG.m2
    Weight 3 Kg
    Technical Parameters Number of Pole Pairs 4
    Brake Voltage 24V DC
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP54
    Warranty 12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Features

    • Accuracy: ATO AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
    • Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
    • Adaptability: ATO heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
    • Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
    • Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
    • Safety: ATO AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

    Installation Dimension (unit=mm)

    Servo Motor without Brake Dimension

    80 series 750w servo motor dimension

    L (Incremental/Absolute encoder): 158mm

    Servo Motor with Brake Dimension

    80 series 1 hp servo motor with brake dimension

    L (with brake): 198mm

    Note:
    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Winding and Encoder Connection

    1. For servo motor winding

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number (Aerial Plug) 2 3 4 1 Socket Number 1 2
    Socket Number (Lead Type) 1 2 3 4 Brake Voltage 24V DC

    2. For incremental encoder

    Incremental Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number (Aerial Plug) 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1
    Socket Number (Lead Type) 2 3 9 4 7 13 14 5 6 10 11 8 12 15 1

    3. For absolute encoder

    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: Line number and accuracy of servo motor encoder

    Nowadays, many people think encoder has higher line number, then servo motor control accuracy would be higher, this leads to some people simply thought the poor equipment accuracy issue can be solved by using servo motor with high line number encoder. With mark line showing 10000, this is an ignorant pursuit, pay high cost for this encoder, it might be not helpful, instead it might bring much trouble.
    Encoder type should match the property of servo motor. Mark line of DC servo motor encoder should match groove number of DC motor. Mark line of AC servo motor encoder should match the pole number and phase number of AC servo motor. The purpose is mark line is the integral multiple of motor stepping, in the case, inspection signal of code would be integer, no decimal, no deviation. Refer to incremental type and absolute type encoder, the difference is incremental type only has second hand, the same as the timer without minute hand and hour hand.
    The main function of encoder is to check servo operation step, revolution, can output the information for actual operation, i.e. origin position, steering etc. The system purpose is accurate control for the driven work piece position, displacement and speed. The control accuracy is unrelated with encoder mark line, as long as encoder can accurately detect the steps.
