    2 Position 63A Rotary Switch, 4 Pole

    This rotary switch is 2 position type, rated current 63 amp, 4 pole, rated power 30 kW, rated working voltage 440V, frequency AC 50Hz, buy a low price rotary switch from manufacturer.
    SKU: ATO-LW26GS63
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Rotary cam switch 2 position, 4 pole, 63A, it is suitable for standard low voltage control/load switching and ultra low voltage and electronic applications.


    Model ATO-LW26GS63
    Rated Voltage 440V
    Rated Thermal Current 63A
    Rated Working Current AC-21 63A
    AC-22 63A
    AC-23 57A
    Pole 4 Pole
    Position 2 Position
    Rated Power 30 kW
    Escutcheon Plate M2
    Ambient Temperature -25℃-40℃
    Altitude ≤2000m
    Humidity ≤50%

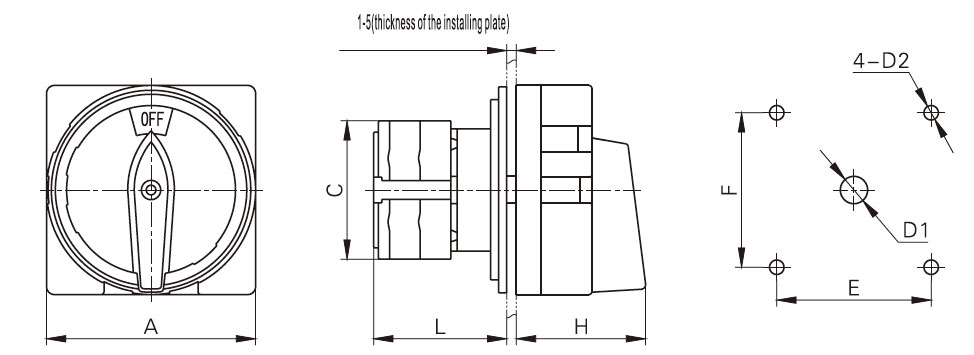

    Dimensions (Unit=mm)

    Rotary switch 4-pole dimension

    Overall Dimension (mm) Mounting Dimension (mm)
    A C L H E F D1 D2
    64 66 72.5 42 48 48 φ10 φ4.5

    63A 4 Pole M2 Panel Diagram

    Rotary switch escutcheon plateConditions of Use

    1. The ambient air temperature does not exceed +40 ° C, and the average temperature within 24 hours does not exceed 35 ° C.
    2. The lower limit of ambient air temperature does not exceed -5 °C.
    3. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%. When the temperature is low, high relative humidity can be allowed, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs with temperature changes.
    4. The surrounding environment should be clean, free of flammable and flammable hazardous materials, no gas sufficient to damage insulation and metal, no conductive dust.

    Tips: The role of the rotary switch

    Rotary switches generally have a voltage type rotary switch, a universal transfer switch, a three-phase and four equal transfer switches, and their different functions also lead to different wiring methods of the transfer switch. The main function of the rotary switch is that there are many wiring lines, so the control power supply line is also relatively wide, so it is very convenient to convert. Its main function is the conversion between the voltmeter and the ammeter, and a long-distance transmission control such as measurement and control.
