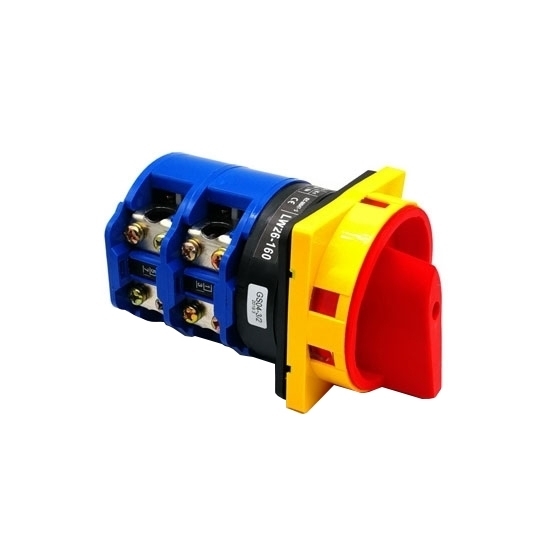

    2 Position 160A Rotary Switch, 4 Pole

    $104.61
    Cheap price rotary switch for sale, 2 position, 4 pole, the rotary cam switch can be used as a circuit control switch, a test equipment switch, a motor control switch and a master control switch, and a transfer switch for an electric welder, etc.
    SKU: ATO-LW26GS160
    Free Shipping Worldwide
    Delivery date: 6-30 days

    4 pole 2 position rotary switch rated current 160A, it is mostly used as a power supply inlet switch in the machine's electrical control circuit. It acts as an isolated power source and can also be used as a control switch to directly control the infrequent start and stop of small-capacity asynchronous motors.

    Specification:

    Model ATO-LW26GS160
    Rated Voltage 440V
    Rated Thermal Current 160A
    Rated Working Current AC-21 150A
    AC-22 150A
    AC-23 135A
    Pole 4 Pole
    Position 2 Position
    Rated Power 75 kW
    Escutcheon Plate M2
    Dimension A 88
    C 88
    L 100
    H 52
    E 68
    F 68
    D1 φ13
    D2 φ6
    Ambient Temperature -25℃-40℃
    Altitude ≤2000m
    Humidity ≤50%

    Dimensions (Unit=mm)
    Rotary switch 4-pole dimension

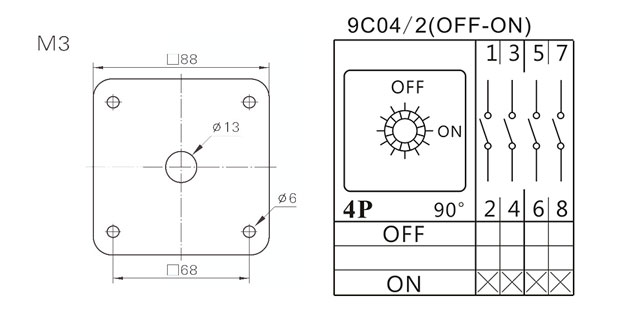

    160A 4 Pole M3 Panel Diagram
    Rotary witch diagram
    Conditions of Use

    1. The ambient air temperature does not exceed +40 ° C, and the average temperature within 24 hours does not exceed 35 ° C.
    2. The lower limit of ambient air temperature does not exceed -5 °C.
    3. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%. When the temperature is low, high relative humidity can be allowed, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs with temperature changes.
    4. The surrounding environment should be clean, free of flammable and flammable hazardous materials, no gas sufficient to damage insulation and metal, no conductive dust.

    Tips: Rotary switches can be used to replace the rotary pulse generators of traditional resistive potentiometers. These rotary switches are usually used in the human-machine interface of the instrument front panel and audio-visual control board. The rotary switch uses orthogonal optical encoder as an alternative mode. Pure digital devices for insulators, these rotary switches are similar in appearance to conventional or resistive potentiometers, but the internal structure of these rotary switches is digital and optical.
