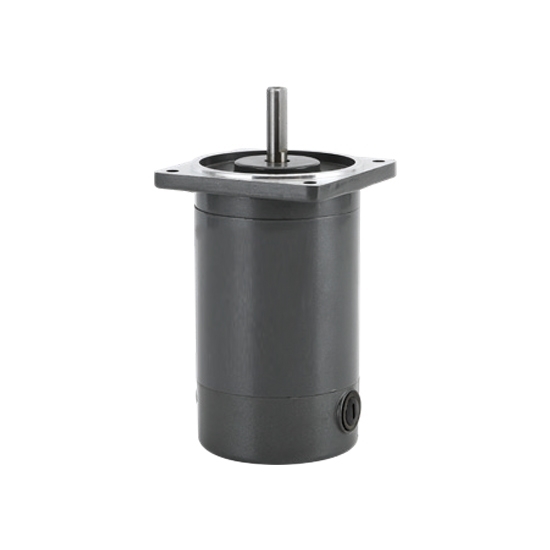

70 W DC Gear Motor, 1800 rpm, 12V/24V

5 out of 5 based on 1 reviews | Write a review

$190.38

This 70W small DC gear motor operates at 12V/24V voltage, with 1800 rpm/min, 3.5 N.m torque, and 5:1 to 18:1 gear ratio, high performance and more reliable, widely used in various industrial applications.

Voltage (DC) *
Gear Ratio *

SKU: ATO-BLDC-70

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

ATO 12V or 24V DC motor paired with a gearbox provides precise speed and position control, 70 watt power, 1800 rpm/min, 3.5 N.m torque, and a 5:1 to 18:1 gear ratio. This DC gear motor is compact, lightweight, and easy to install.

Specifications

Model	ATO-DM09-12-70-1800	ATO-DM09-24-70-1800
Power	70W
Voltage	12V	24V
Speed/min	1800 rpm
Current	9A	4.5A
Starting Torque	3.5 N.m	3.5 N.m
Gear Ratio	5, 7.5, 10, 12.5, 15, 18, Contact Us for Other Gear Ratios

Note 1: Motor voltage, power, and speed can be customized according to customer requirements, provided the available size allows.

Dimension (Unit: mm)

70W DC gear motor dimension

Wiring Diagram of Motor

40W DC gear motor wiring diagram

Note 2: Standard lead length: 300mm±10; Model: UL1015; Type: AWG20. Lead length and type can be customized according to customer requirements, provided the available dimensions permit.

Tips: 12V DC Gear Motor vs. 24V DC Gear Motor

Feature	12V DC Gear Motor	24V DC Gear Motor
Operating Voltage	12V	24V
Speed & Torque	Lower speed and torque; suitable for light loads	Higher speed and torque; suitable for heavier loads
Power Consumption	Lower voltage, may need higher current for the same torque	Higher voltage, more efficient for medium to heavy loads
Applications	Small robots, hobby projects, electric locks, light appliances	Industrial automation, conveyors, large robotic arms, automotive systems
Controller Compatibility	Works with small controllers and batteries	Requires more robust controllers and power supplies
