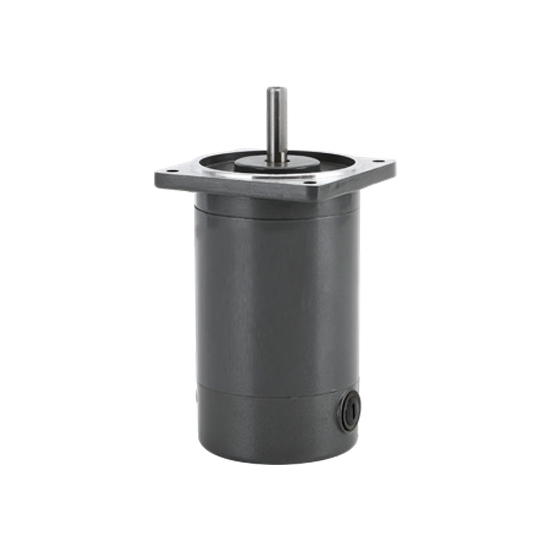

120 W DC Gear Motor, 3200 rpm, 12V/24V

Write a review

$199.55

3200 high rpm DC gear motor factory direct sale. It features a 12V or 24V DC motor and a high-quality gearbox, delivering 3.66 N.m of torque and a 5:1 to 18:1 gear ratio, suitable for power tools, electric toy cars, and automation equipment.

Voltage (DC) *
Gear Ratio *

SKU: ATO-BLDC-120

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

120W small DC gear motor operates at 12V/24V voltage, with 3200 high rpm/min, 3.66 N.m torque and 5:1 to 18:1 gear ratio, high rpm gear motor, widely used in various industrial applications.

Specifications

Model	ATO-DM09-12-120-3200	ATO-DM09-24-120-3200
Power	120W
Voltage	12V	24V
Speed/min	3200 rpm
Current	14A	6.8A
Starting Torque	3.66 N.m	3.66 N.m
Gear Ratio	5, 7.5, 10, 12.5, 15, 18, Contact Us for Other Gear Ratios

Note 1: Motor voltage, power, and speed can be customized according to customer requirements, provided the available size allows.

Dimension (Unit: mm)

120W DC gear motor dimension

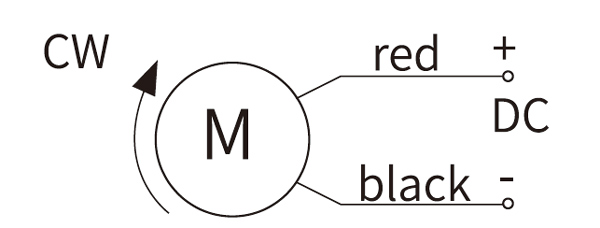

Wiring Diagram of Motor

40W DC gear motor wiring diagram

Note 2: Standard lead length: 300mm±10; Model: UL1015; Type: AWG20. Lead length and type can be customized according to customer requirements, provided the available dimensions permit.

Tips: Advantages of 120W 3200rpm High Speed DC Gear Motor

ATO 120W 3200rpm high speed DC gear motor provides strong power for demanding loads, delivers fast rotation for quick response, and can be combined with a gearbox to achieve the right balance of speed and torque. It is efficient, durable, and suitable for industrial machinery, automation, and other high-performance applications.
