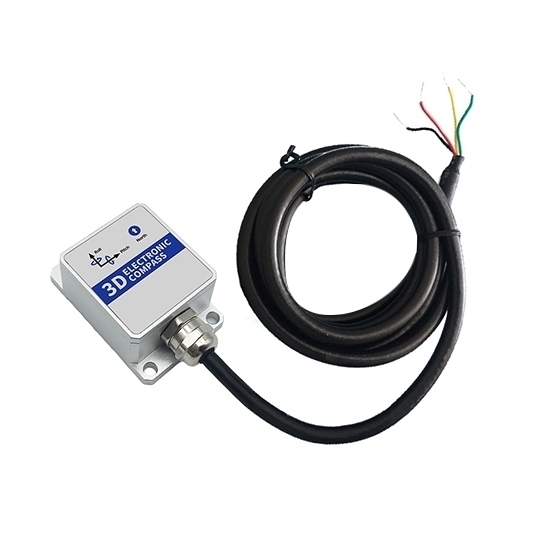

9-axis Digital Compass Sensor, 0°-360°, RS232/RS485/TTL

Providing 0°-360° heading measurement with RS232/RS485/TTL digital outputs, the 9-axis electronic compass integrates triple-axis magnetometer, accelerometer, and gyroscope, measuring pitch, roll and heading angles. Featuring hard/soft magnetic compensation and motion-compensated algorithms, this miniature orientation sensor delivers reliable full-attitude measurement in dynamic environments.

Specification

Features

• Advanced stability performance: 9-axis AHRS with E-comppass utilizes temperature bias tracking to eliminate measurement drift.
• Environmental reliability: IP67 rated housing protects against dust and moisture in -40℃ to +85℃ range.
• Measurement precision: Heading sensor with 3-axis magnetometer maintains 2° accuracy with tilt compensation.
• Comprehensive calibration: Hard/soft magnetic and tilt compensation ensure consistent reading accuracy.
• Space optimization: Compact 55×37×24mm dimensions enable integration in constrained installations.
• Operational durability: Absolute orientation sensor withstands harsh conditions while maintaining precision.

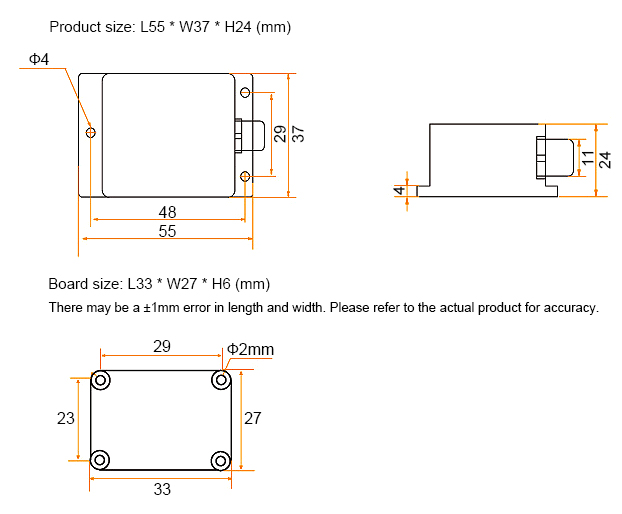

Dimension (Unit: mm)

Wiring

Application

Tips: How to install the 9-axis electronic compass sensor?

Although 9-axis AHRS with integrated E-compass can compensate for magnetic interference, users should select an environment with minimal magnetic interference for installation and operation. Keep the device as far away as possible from iron, nickel, magnets, motors, and other magnetic substances. This heading sensor is essential to strictly avoid strong magnetic materials such as magnets and electric motors in proximity to the product, as this may cause irreversible degradation of measurement accuracy. For accuracy testing, we recommend mounting the product vertically on an aluminum rod (or other non-magnetic material) and conducting forward accuracy measurements while rotating the rod perpendicular to the platform, taking care to minimize external magnetic interference.
