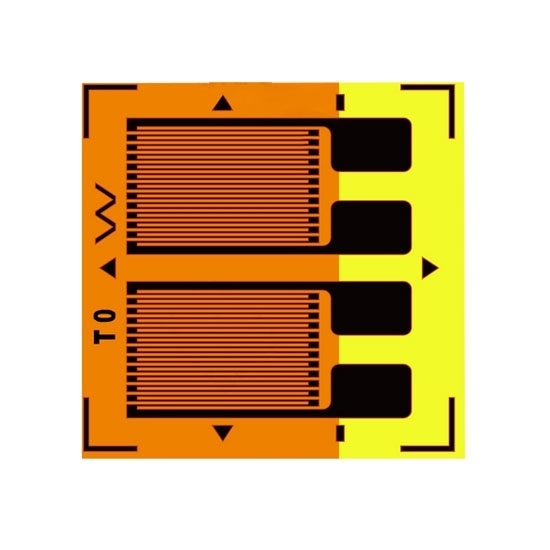

90 Degree Resistance Strain Gauge

5 out of 5 based on 2 reviews | Write a review

$12.89

90 Degree strain gauges are available in 350Ω or 1000Ω resistance values, with temperature compensation and creep compensation, half bridge strain gauge is suitable for sensors with small internal temperature gradients.

Model *

SKU: ATO-SG-FB

This product has a minimum quantity of 100

Qty:

30-day Returns

Free Shipping

Delivery date: 2-12 days

Overview
Related Video

Dual parallel strain gauges for load cells with temperature and creep compensation, precision sealed structure for long-term stability of load cells, various types of strain gages available, support for product customization.

Specification

Model: ATO-SG-FB
Deviation of Nominal value: ≤±0.5%
Tolerance of the Mean Value: ≤±0.1 %
Sensitivity Factor: 2.0~2.2
Dispersion of the Mean: ± 1 %
Average Heat Output Coefficient: 1 μm/m/C
Dispersion of Average Heat Output: ≤30μm/m/C
Insulation Resistance: 10^4 MΩ
Fatigue Life: ≥10^7
Operating Temperature: -30℃~150℃

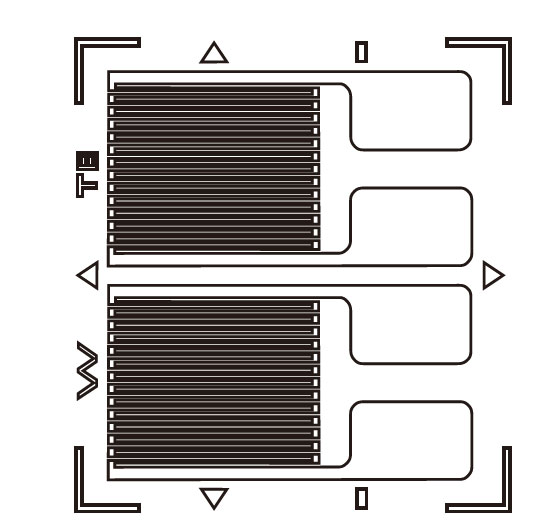

90 Degree Resistance Strain Gauge Structure Diagram

Half Bridge Strain Gauge Model (Unit: mm)

Model	Sensitive Grid Size	Base Size
ATO-SG350-2FB	2.0×3.2	5.7×7.7
ATO-SG350-3FB	3.1×3.1	7.2×7.6
ATO-SG350-4FB	4.0×2.7	8.1×6.9
ATO-SG350-6FB	6.0×2.7	10.3×6.9
ATO-SG1000-2FB	2.0×3.2	5.7×7.7
ATO-SG1000-3FB	3.0×3.3	7.1×7.8

Tips: How to choose the type of strain gauge?

The type of strain gauge is selected according to the purpose of strain measurement, the material of the test piece and its stress state as well as the requirements of measurement accuracy. For example, if the strain gauge is used as a sensitive element of a force measurement sensor at room temperature, the foil strain gauge with zero drift and minimal creep is used; if the output sensitivity of the sensor is required to be large, the semiconductor strain gauge is used; if it is used for dynamic strain measurement, the foil strain gauge is usually chosen.
