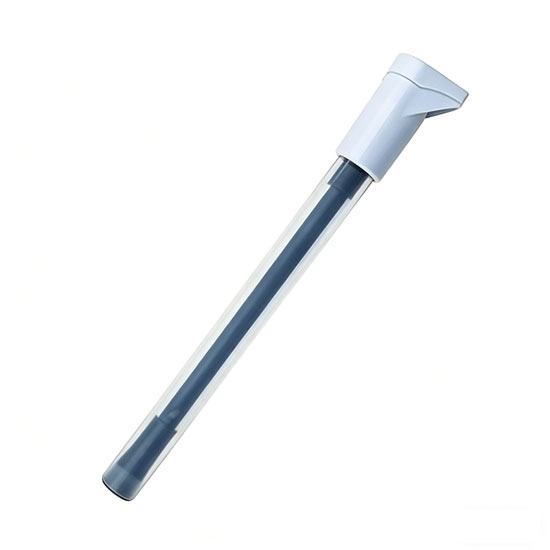

Ammonium Ion Selective Electrode

4.5 out of 5 based on 2 reviews | Write a review

$615.29

Ammonium ion selective electrode (NH4+ ISE) is a refillable composite electrode designed for accurate determination of ammonium ions in solutions. A corrosion-resistant epoxy resin housing and a durable PVC membrane ensure stable performance, even in low ionic strength samples. A measurement range of 1.0 × 10-6 – 1.0 mol/L makes this ammonium ISE suitable for routine solution analysis.

SKU: ATO-ISE-AMMONIUM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Priced for value and reliability, the ammonium ion selective electrode integrates a separable ring ground joint for dependable sealing and easy assembly, combined with an epoxy resin body for strength, chemical resistance, and sustained stability.

Specification

Model	ATO-972122
Type	Ammonium Ion Composite Electrode
Ion	Ammonium Ion (NH₄⁺)
Standard Solution	NH₄Cl Solution
Measurement Range	1.0 × 10^-6 – 1.0 mol/L
Repeatability	±2%
Mass Concentration	0.014–14000 ppm (expressed as nitrogen)
pH Range	2–9
Liquid Junction	Separable Ring Ground Joint
Reference Structure	Built-in Reference System
Reference Solution	ISE Reference Filling Solution Type F
High-end Ionic Strength Regulator	Ionic Strength Regulator Type IV
Sensitive Membrane	PVC Membrane (replaceable)
Shell Material	Epoxy Resin
Operating Temperature	0℃–40℃
Connector	BNC (Q9)
Dimension	φ12*120mm

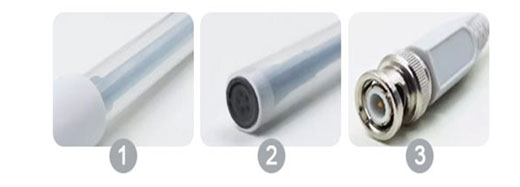

Feature

Ammonium ise three feature

Epoxy Resin Housing＆PVC Membrane: The ammonium ion selective electrode features an epoxy resin housing with excellent resistance to corrosive media such as acids, alkalis, and saline solutions. Sturdy structure and secure sealing provide stable long-term performance, while the replaceable PVC sensitive membrane provides high selectivity.
Separable Ring Ground Joint: Detachable separable ring ground joint ensures stable potential, minimizes clogging, and allows easy cleaning for reliable operation in complex samples.
BNC (Q9) Connector: The ammonium ISE is fitted with a standard BNC (Q9) connector, allowing direct connection to most ion meters and laboratory instruments.

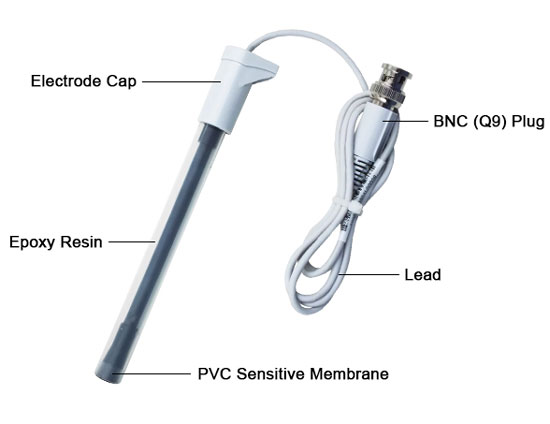

Detail

Ammonium ion selective electrode detail

Application

Ion selective electrode ISE application

Tips: How does the ammonium ion selective electrode measure NH₄⁺?

The ammonium ISE (NH₄⁺ ISE) measures ammonium ions by generating a membrane potential across a PVC sensitive membrane, which is directly proportional to the NH₄⁺ activity in the solution. The membrane contains ion-exchange sites that preferentially interact with ammonium ions, minimizing interference from other cations. The ClickOK reference system provides a stable reference potential, while the detachable annular liquid junction ensures reliable contact and reduces the risk of clogging.

In this video, ATO will show you top ten most used sensors (sensing technologies).

Existing reviews of Ammonium Ion Selective Electrode

A useful ion selective electrode

We liked the fact that the PVC membrane can be replaced instead of replacing the entire electrode. For our lab, that makes more sense because the electrode gets used fairly often. It is still working well after regular testing.

From: Issac | Date: 05/10/2026

Was this review helpful? Yes No (0/0)

Dependable choice

I’ve been using this ammonium ion selective electrode for a while, and it delivers stable and reliable results even in low ionic strength samples. The build quality feels robust, and the refillable design makes it economical for long-term use. Calibration is simple, and the wide measurement range is very practical for routine analysis.

From: Lyray | Date: 01/04/2026

Was this review helpful? Yes No (0/0)
