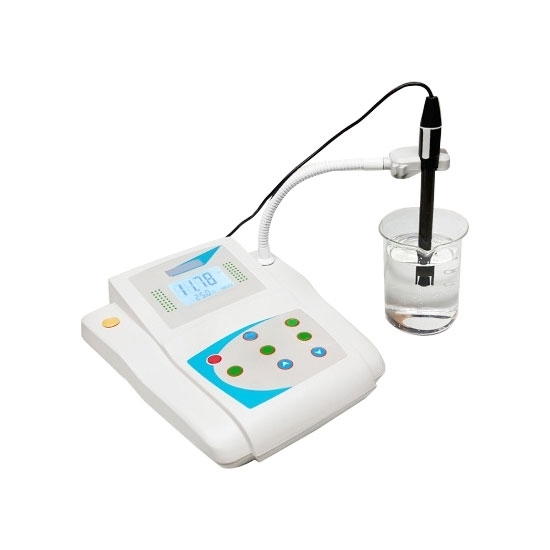

Benchtop Sodium Ion Meter

$1,016.19

Cost-effective benchtop sodium ion meter for sale online. It is a laboratory instrument designed for precise measurement of sodium ion concentrations in aqueous solutions. This ion meter employs ion-selective electrodes (ISEs) that selectively respond to sodium ions, generating a measurable electrical potential.

SKU: ATO-ION-DWS-51

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

When the ISE generates a voltage proportional to the sodium ion concentration, the ion meter then converts this voltage into a concentration reading, providing accurate and reliable results. Benchtop sodium ion meters are widely used in various scientific and industrial applications, including environmental monitoring, food and beverage analysis, and medical research.

Specification

Model		ATO-ION-DWS-51
Parameters		pH/ISE/Temp.(mV/ORP/pX)
pH	Range	-2.000 to 20.000 pH
	Resolution	0.1, 0.01, 0.001pH
	Accuracy	±0.002 pH
	Calibration Points	Up to 8
	Standard Customization	Yes
	Calibration Reminder	Yes
	Standard Recognition	USA, NIST, MERK, JIS, GB and DIN Buffers
	Slope Limit	Yes
mV/ORP	Range	-2000.00 to 2000.00 mV
	Resolution	0.1, 0.01 mV
	Accuracy	±0.1 mV or ±0.03% of Reading Whichever is Greater
	EH ORP Mode	Yes
	ORP Calibration Points	1 Custom Point (Relative mV)
pX	Range	-2.000 to 20.000 pX
	Resolution	0.1, 0.01, 0.001 pX
	Accuracy	±0.002 pX
	Calibration Points	Up to 6
ISE	Range	1E-9 to 9.999E9
	Units	mol/L, mmol/L, g/L, mg/L, μg/L
	Resolution	Up to 4 Significant Digits
	Accuracy	±0.3%
	Calibration Points	Up to 8
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
	Unit	ºC, ºF
	Resolution	0.1
	Relative Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data Management	Data Storage	1000 Groups
Data Management	GLP Features	Yes
Inputs	pH Electrode	BNC(Q9)
Inputs	Temp. Probe	4-pin Aviation Connector
Outputs	USB	USB 2.0 Flash Memory Device, PC, Scanner
Outputs	Bluetooth	Printer
Display Options	Backlight	Yes
	Auto Shutdown	300, 600, 1200, 1800, 3600 sec., Off
	IP Rating	IP65
	Date and Time	Yes
General	Power	Rechargeable Lithium Battery, AC Adapter, 100-240V AC Input, DC5V Output
	Dimension	410340170mm
	Weight	6kg
Standard Accessories		Suitcase Electrode holder Stylus, Wristband

Feature

The portable pH/ion meter comes with 4.3 inches color high contrast LCD touchscreen.
Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, log management and etc.
This handheld pH/ion meter has multi-reading function that allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold function senses and locks the measurement endpoint.
Data Storage 1000 sets for each parameter (GLP-compliant).
Data analysis function helps users review, compare and recalculate results.
This ion tester supports USB communication.
Auto-power off function effectively extends the battery service life.
Reset function automatically resumes all settings back to factory default options.
The portable meter with IP65 waterproof grade is suitable for field measurements and outdoor measurements.

1-8 points calibration with Standard Recognition.
Selectable pH buffer groups, including USA, NIST, DIN, GB, MERK, JIS.
User-defined pH buffer or buffer group is supported.
Automatic electrode diagnosis with pH slope and offset display.

Ion

1-6 points calibration.
Selectable measurement units, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.
Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.
Over 10 methods are built-in, including F^-, Cl^-, Br^-, I^-, NO₃^-, BF₄^-, NH₄⁺, K⁺, Na⁺, Ca²⁺, Cu²⁺, Pb²⁺, Ag⁺ and etc., user-defined method is supported.

Application

portable pH/ion meter application

Tips: Can benchtop sodium ion meter be only used for sodium ISE?

A benchtop sodium ion meter is primarily designed for measuring sodium ion concentrations using an ion-selective electrode (ISE). While it is optimized for accurate and precise sodium ion measurements, its functionality may extend to other ions depending on the specific meter model and available ion-selective electrodes. Some benchtop meters support interchangeable ion-selective electrodes, allowing users to measure concentrations of different ions by swapping electrodes. However, the accuracy and reliability of measurements for ions other than sodium may vary, and it is crucial to use the appropriate calibration standards and electrodes. In summary, while a benchtop sodium ion meter is specialized for sodium measurements, its versatility can be enhanced with compatible ion-selective electrodes, broadening its application to other ions within its technical specifications. Users should consult the instrument's documentation for guidance on ion compatibility and electrode interchangeability.
