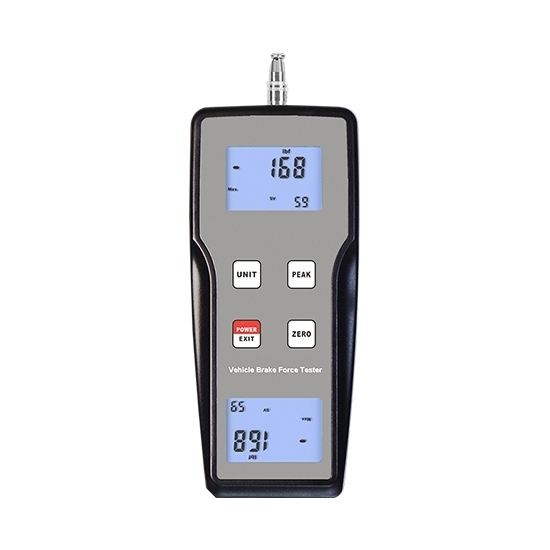

Handheld Brake Pedal Force Meter, 0–1000N

The brake pedal force gauge is designed for measuring brake pedal force up to 1000N in vehicle testing, maintenance, and quality control. Suitable for automotive engineers and technicians. High accuracy and clear digital LCD display ensure fast and reliable readings.

Specification

Feature

• 0–1000N Measurement Range: The handheld brake pedal force meter is suitable for precise brake pedal force testing in automotive applications.
• High Accuracy & High Resolution: ±0.5% FS accuracy with fine resolution for reliable and consistent results.
• Digital LCD Display (No Parallax Error): The portable brake force tester features a clear 4-digit large screen that ensures easy and accurate reading from any angle.
• Dual Measurement Modes: Supports both peak value and real-time force monitoring for flexible testing needs.
• Selectable Units: The digital brake pedal force meter allows users to easily switch between N (Newton), kg (kilogram-force), and lb (pound-force) for flexible measurement needs.
• Peak Hold Function: Automatically captures and retains maximum force value for analysis and recording.
• Dual Power Supply Options: The vehicle brake force tester operates with 2× AA alkaline batteries or 5V DC external power, providing convenient and reliable usage.
• Overload Protection & Alarm: 150% FS overload capacity with audible buzzer warning above 110% FS.
• Portable & Lightweight Design: The handheld brake pedal force meter has a compact structure, making it ideal for handheld operation and field testing.
• Stable Working Performance: Designed for use in environments without vibration sources or corrosive media.

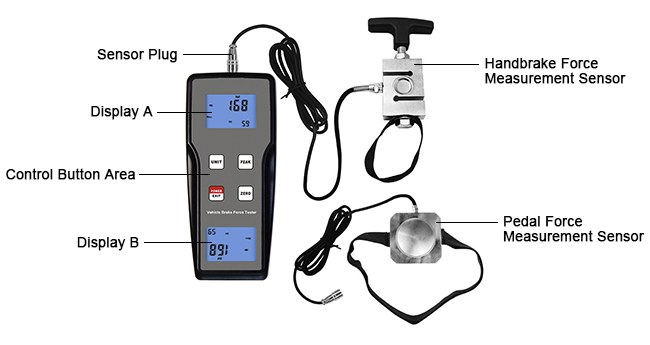

Detail

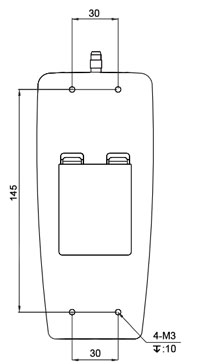

Size (unit: mm)

Tips: Is the brake pedal force meter stable during measurement?

The brake pedal force meter is designed with a stable and secure structure to ensure reliable measurement during operation. Once properly positioned on the pedal, it maintains firm contact and minimizes the risk of slipping or displacement during testing. The semicircular adjustment block and wire rope hook work together to help secure the tested component, providing consistent positioning throughout the measurement process.

In most standard applications, no additional fixing tools are required, making the brake pedal force meter convenient and efficient for daily workshop use. However, for optimal stability, users should ensure correct placement and proper tightening before starting the test. This helps guarantee accurate results and smooth operation, even in frequent or repetitive testing environments.
