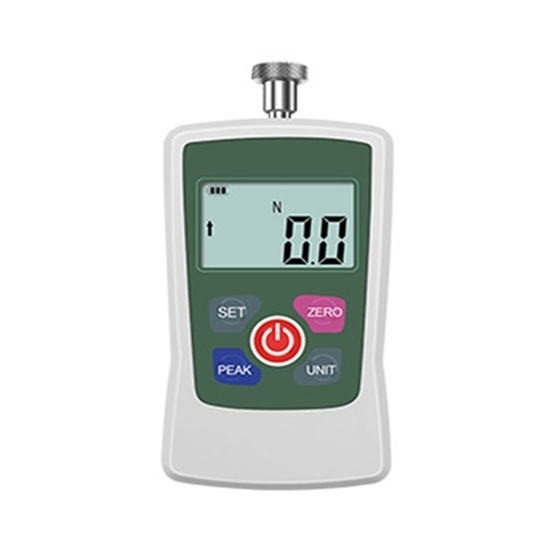

    Small Ergonomic Digital Force Gauge, 10N-500N

    5 out of 5 based on 1 reviews | Write a review
    $90.88
    The small ergonomic digital force gauge features three measurement modes and four measurement units, being lightweight and portable with multiple probe options. The LCD screen provides clear and instant readings. The push-pull force gauge's high-precision design ensures accurate measurements, while allowing users to set upper/lower limits with audible alarm for out-of-range values.
    *
    SKU: ATO-FG-ZMF
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    This mini force gauge offers three measurement modes and four measurement units, available with a variety of measuring ranges, including 0-10 N, 0-20 N, 0-30 N, 0-50 N, 0-100 N, 0-200 N, 0-300 N, and 0-500 N. Its compact design ensures portable use, high accuracy, and features limit alarms with a clear LCD for quick reading.

    Specification

    Model ATO-ZMF-10 ATO-ZMF-20 ATO-ZMF-30 ATO-ZMF-50 ATO-ZMF-100 ATO-ZMF-200 ATO-ZMF-300 ATO-ZMF-500
    Capacity 10 N 20 N 30 N 50 N 100 N 200 N 300 N 500 N
    1 KG 2 KG 3 KG 5 KG 10 KG 200 KG 300 KG 500 KG
    2.2 LB 3 LB 6.5 LB 11 LB 22 LB 45 LB 65 LB 110 LB
    Resolution  0.01 N / 0.1 N
    Accuracy  ±1%
    Stem Stroke 10 mm
    Power Supply AAA Battery
    Battery Life 6 months
    Operating Temperature 5°C-35°C
    Storage/Transport Temperature -10°C-60°C
    Relative Humidity 15%-80% RH
    Weight 0.68 KG


    Feature

    • Four Switchable Units: Newton (N), Kilogram-force (kgf), Pound-force (lbf), Ounce-force (ozf).
    • Three operating modes: Real-Time Mode (live reading), Peak Hold Mode (captures max force, shown as "P"), and First Peak Mode (captures initial peak, shown as "P&T").
    • Intelligent Audible Alarm: Programmable high/low limits with a buzzer alert when exceeded.
    • Clear LCD Display: The portable digital force gauge provides fast, accurate, and easy-to-read measurements.
    • Portability: Compact design for easy transport and use.
    • Ergonomic Design: Comfortable, fatigue-free operation with a contoured grip for extended use.
    • Interchangeable Probes: The force gauge comes with various attachments for different applications.

    Detail

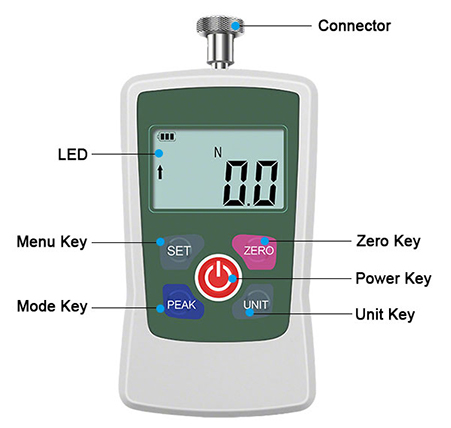

    small ergonomic digital force gauge details

    Size (Unit: mm)

    Small ergonomic digital force gauge size

    Application

     small ergonomic force gauge application

    Tips: How to use the portable ergonomic digital force gauge?

    1. Measurement Range: Ensure your test force does not exceed 500N, as this may damage the ergonomic digital force gauge.
    2. Zero Calibration: Always press the ZERO button before starting a new measurement for accurate results.
    3. Peak Function: Use the PEAK button to capture and hold the maximum force reading during testing.
    4. Mounting: The force gauge can be handheld or fixed using the M4 screw holes on the back for stable measurements.
    5. Units Switching: Press the UNIT button to toggle between Newton (N), kilogram-force (kgf), or pound-force (lbf).
    6. Battery Care: Recharge the device promptly when the battery indicator shows low power to avoid a sudden shutdown.
    7. Storage: Keep the gauge in a dry, dust-free environment and avoid strong vibrations when not in use.
