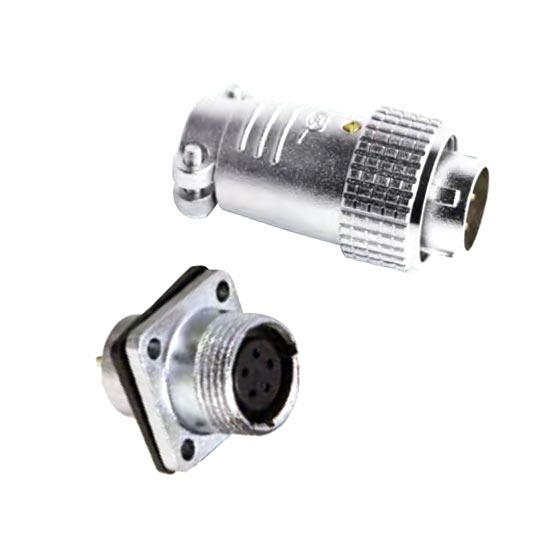

    Circular Connector, 2/3/7/8/10/12/14 Pin, M22

    Circular connector has simple and firm locking mechanism, easy to seal, insert and dismantle. Circular connector has 2/3/4/5/6/7/8/10/12/14 pin, female/male plug & socket to select.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Circular connector has 2/3/4/5/6/7/8/10/12/14 pin to select.


    Model ATO-CIRC-P20
    Weight 0.5kg
    Coupling mode Threaded coupling
    Shell material Zinc base alloys with chromeplate
    Insert material Bakelite
    Contact material Copper (silver plating or gold plating)
    Termination Solder
    Mating cycle 500 times
    Temperature range -20~+85℃
    Cable diameter ≤Φ6~≤Φ12.5mm
    Protection class IP55

    Technology parameter:

    Number of pins 2 3 4 5 6 7 8 10 12 14
    Rated current/voltage 25A-250V 25A-250V 10A-150V 10A-150V 10A-150V 10A-150V 5A-125V 5A-125V 5A-125V 5A-125V
    Operating voltage AC 250V AC 250V AC 200V AC 200V AC 200V AC 200V AC 200V AC 200V AC 200V AC 200V
    Withstanding voltage (in 1 minute) AC 2000V AC 2000V AC 1500V AC 1500V AC 1500V AC 1500V AC 1500V AC 1500V AC 1500V AC 1500V
    Insulation resistance at DC 500V (MΩ) 2000 2000 2000 2000 2000 2000 1500 1500 1500 1500
    Contact resistance at 1A (MΩ) 1 1 3 3 3 3 3 3 3 3
    Solder cup diameter Ф (mm) 2 2 1.7 1.7 1.7 1.7 1.2 1.2 1.2 1.2
    Pin diameter Ф (mm) 2.5 2.5 1.6 1.6 1.6 1.6 1 1 1 1

    Pin assignments:
    Circular connector 2 to 14 pin m22 pin assignments

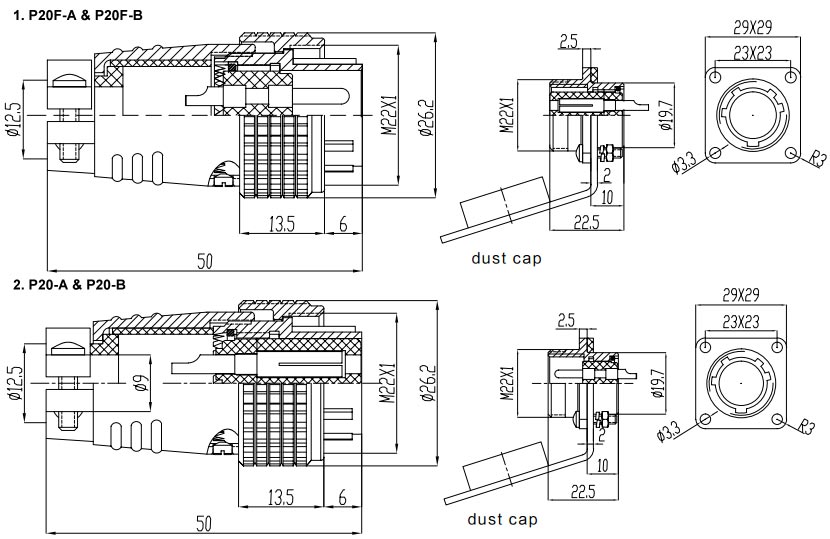

    Dimensional drawing (unit: mm):

    Circular connector 2 to 14 pin m22 dimensional drawing
    Note: Dust cap is not in the packing list.
    Tips: How to select pinhole and the number of pins?
    First, select the number of pins according to the demands of circuit. At the same time, the volume and total separation force of circular connector should be considered. If pins have large number, circular connector will also have a big volume and strong total separation force. For the occasions with high requirements for reliability and appropriate volume, the parallel connection of two contact pairs is adopted to improve the reliability of connection.
    In the plug and socket of connector, contact pin (male contact) and socket (female contact) can replace each other. In the actual use, they can be chose according to the electrification condition at the two ends of plug and socket. If socket is always electrified, choose the socket with holes. Because the electrified contact pins of socket with holes are buried in insulator and human body can't touch electrified contact pins easily, so it is relatively safe.

    In the video, ATO will take 5 pin M16 circular connector for circular connector assembly instructions.
