Color Recognition Sensor, NPN/PNP Output

5 out of 5 based on 1 reviews | Write a review

$735.62

Discount color recognition sensors for sale, support NPN/PNP output, provide 4-channel open collector interface, suitable for a variety of industrial automation applications, with a high-speed response time of 200μs, suitable for the detection of extremely sensitive to color changes in the demand.

Output Mode *
Accessories *

SKU: ATO-COLS-CPES

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

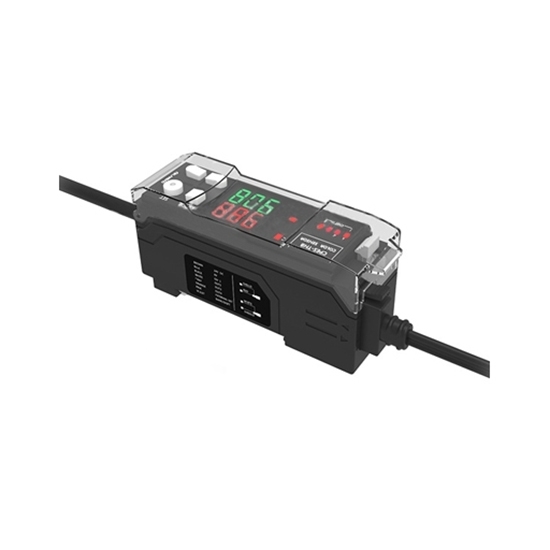

Color recognition sensor, NPN/PNP Output brings you accurate color judgment, using red/green/blue LED light source, detection range up to 11~20mm, the smallest spot is only 1mm. With ATO-CPES-C09 detector head, it has high resistance to light interference, and can still be stable to recognize the color under sunlight or incandescent lamp.

Specification

Model	ATO-CPES-TNB	ATO-CPES-TPB
Output Mode	NPN	PNP
	Open collector * 4 channels, 40VDC max (30VDC)
	1 output to 100mA, total of 4 outputs to 200mA, residual voltage: 1V max.
Response Time	200μs (HIGH SPEED)/1ms (FINE)/4ms (TURBO)/8ms (SUPER)
Protection Circuit	Short circuit protection, reverse polarity protection, Zener protection
External Calibration Input	Input time: ≥20ms
External Switching Input	Input time: ≥20ms (C/C+/I Mode)
External Offset Input (Super I Mode)	Input time: ≥20ms (Super I Mode)
Timer Function	Timer OFF/ON-delay/ON-delay/single-shot, Timer time: adjustable from 1 to 1,000ms (for each domain separately)
Supply Voltage	24VDC, Ripple (P-P): <10%
Current Consumption	Normal mode: 1.5W (≤62.5mA), Eco mode: 1W (≤42mA)
Ambient Temperature	-10°C~55°C (no frost condensation)
Vibration Resistance Characteristics	10~55Hz, double amplitude 1.5mm (2 hours each in X, Y, Z direction)
Material	Housing, cover: PC
Weight	Approx. 150g (with 2m cable)

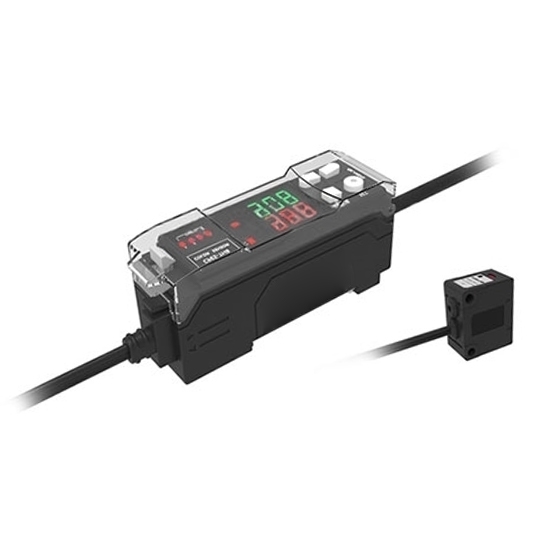

Detector Head Matching
Model	ATO-CPES-C09
Detection Range	11~20mm
Minimum Spot Diameter	1mm@16mm
Light Source Type	Composite LED: Red/Green/Blue (Light source wavelength: 665nm/520nm/465nm)
Minimum Bend Radius	R25mm
Ambient Light Resistance	Incandescent: 1,000lux max; Daylight: 20,000lux max
Ambient Temperature	-10°C~55°C (no frost)
Vibration Resistant	10~55Hz, double amplitude 1.5mm (2 hours each in X, Y, Z directions)
Protection Class	IP40
Material	Housing: PC; Lens cap: Polyaryletherketone
Weight	Approx. 40g (contains 2m cable)

Note: Color recognition sensors should be used in conjunction with the detector head.

Dimension (unit: mm)

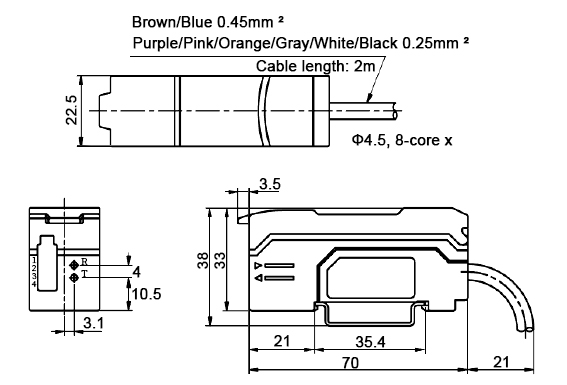

Color recognition sensor dimension

Detector Head Dimension (unit: mm)

Color recognition sensor detector head size

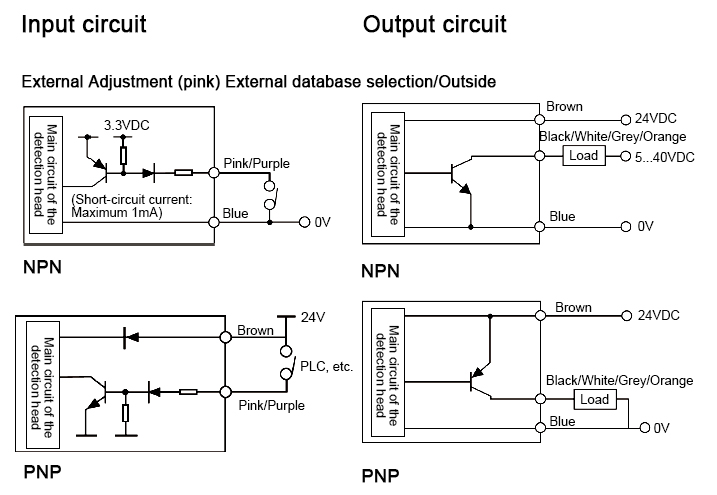

Wiring Diagram

Color recognition sensor wiring instruction

Tips: Color recognition sensor features

Capable of microchromatic identification, can detect nearly 3000 kinds of colors.
Simple sensitivity adjustment, intelligent, digital settings, equipped with a small volume of high-power special detection head.
8-channel or 4-channel detection, a variety of color detection, the function of a generation of eight, reducing production costs.
A variety of detection modes suitable for a variety of different application requirements.
