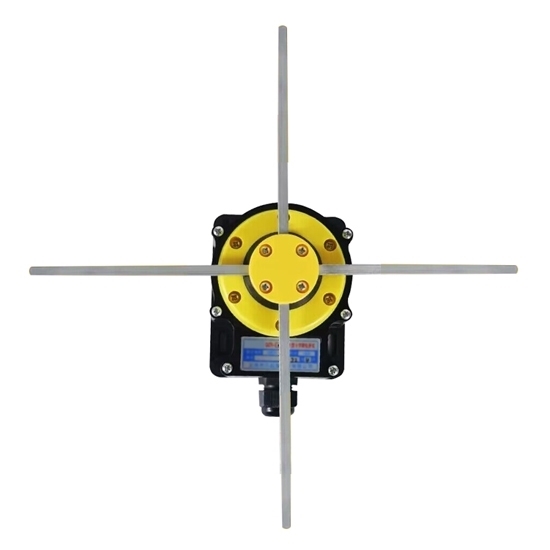

Cross Rotary Limit Switch, 380V 16A, IP65, 180°/360°

$102.89
Cross rotary limit switch with rated current of 16A, rated voltage of 380V, are widely used in cranes and can be used in CNC lathes, marine facilities, medical equipment, industrial towers and more. Two sizes are available, single speed 180° and double speed 360°. Insulated and dustproof, water and oil resistant. Removable top cover. Thickened housing, engineering plastic material. Water and moisture resistant, protection class IP65, 360° rotatable.
*
SKU: ATO-LS-QZR
30-day Returns
Free Shipping
Delivery date: 6-12 days

Cross rotary limit switch for sale, with rated current of 16A, rated voltage of 380V. Single speed 180° and double speed 360° are available. Used in cranes and can be used in CNC lathes, marine facilities, medical equipment, industrial towers.

Features

  • Cross rotary limit switch operates smoothly and is dustproof, waterproof and oilproof.
  • The housing of the limit switch is made of precision die-cast aluminum alloy, which is strong and durable.
  • Its contacts adopt a double-gap positive opening design to provide higher reliability and safety.
  • Its housing has a high protection level and good sealing, which can prevent dust, water and condensation.
  • Industrial limit switch is widely used in corporate equipment, medical equipment, instrumentation, CNC machine tools, marine equipment, industrial equipment, machine tools, textiles, light industry and power industries.

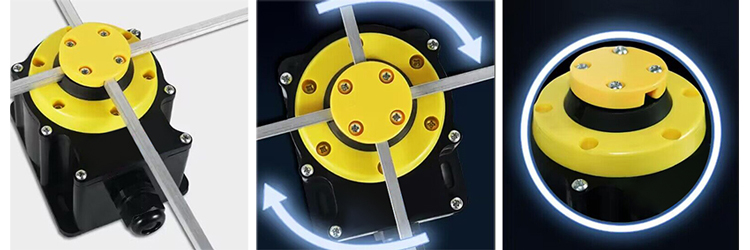

Cross limit switch feature

Specification

Model ATO-QZR-001/ATO-QZR-006
Rated Current 16A
Rated Voltage 380V
Material Metal hardware, engineering plastic shell
Waterproof Rating IP65
Angle of Rotation (Optional) Single speed 180°/Dual speed 360°

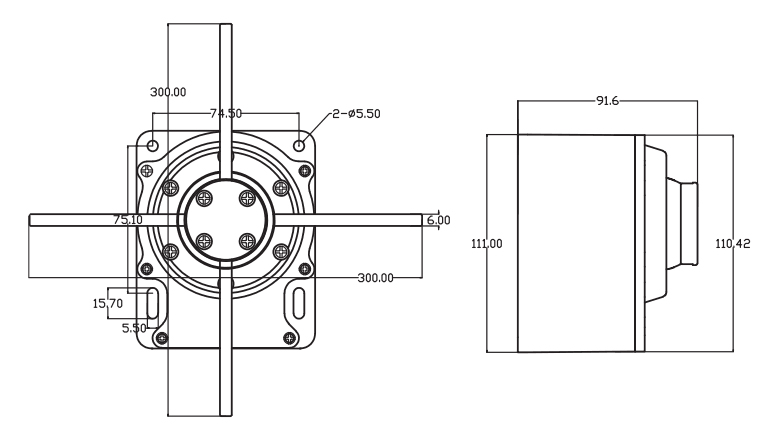

Dimension (Unit: mm)

Cross rotary limit switch dimension

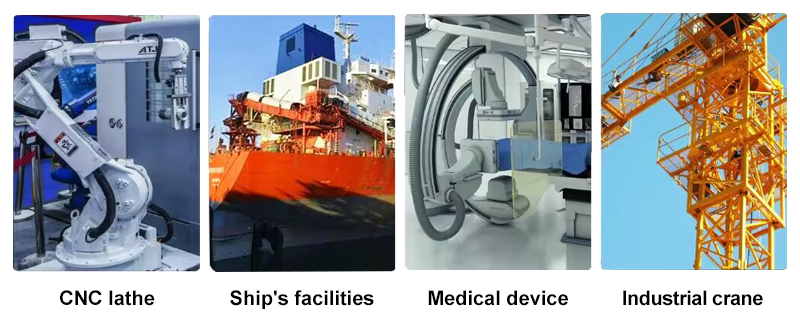

Applications

Cross rotary limit switch application

Tips: What is a cross rotary limit switch?

The cross rotary limit switch is a position-detecting electrical switch featuring a cross-shaped rotary actuator. It can be triggered from multiple directions as moving parts make contact with any of the actuator's arms, causing it to rotate and activate internal contacts. Compared to traditional linear limit switches, it offers multi-directional sensing for more versatile and reliable limit control. This type of limit switch is widely used in industrial automation, cranes, conveyor systems, and other machinery to detect travel endpoints, control stopping positions, or prevent over-travel.

What should I do if the switch is not working properly?

If the switch is not functioning correctly, check for loose connections, incorrect wiring, or signs of damage.
