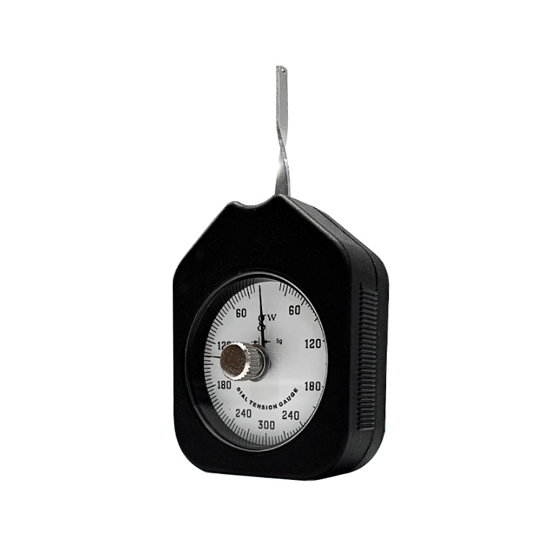

Dial Tension Gauge Force Meter, 10g-500g/0.1N-5N

Write a review

$65.15

Dial tension force gauge is a precise tension tester for measuring push and pull forces, covering a 10g-500g or 0.1N-5N range. This portable force gauge checks switch contact pressure, spring force, and cable tension. It ensures product quality in electronics and manufacturing. A peak hold function captures maximum force readings. Tension tester is essential for quality control and R&D. High accuracy of ±2% provides reliable data for various applications.

Capacity *

SKU: ATO-FG-HTD

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

This mini dial tension force meter is a compact tension checker, which measures 10g-500g / 0.1N-5N forces. Buy this force meter for precise validation of small mechanisms. It verifies assembly specs quickly, ideal for production lines and lab use.

Specification

Model	Capacity	Division Value	Scale Range	Accuracy
ATO-HTD-0-1	0.1N	0.005N	0.02-0.1-0.02N	±2%
ATO-HTD-0-3	0.3N	0.01N	0.06-0.5-0.06N	±2%
ATO-HTD-0-5	0.5N	0.02N	0.01-0.5-0.01N	±2%
ATO-HTD-1	1N	0.05N	0.2-0.1-0.2N	±2%
ATO-HTD-1-5	1.5N	0.05N	0.3-1.5-0.3N	±2%
ATO-HTD-3	3N	0.1N	0.6-3-0.6N	±2%
ATO-HTD-5	5N	0.2N	1-5-1N	±2%
ATO-HTD-10	10g	0.2g	2-10-2g	±2%
ATO-HTD-30	30g	0.5g	6-30-6g	±2%
ATO-HTD-50	50g	1g	10-50-10g	±2%
ATO-HTD-100	100g	2g	20-100-20g	±2%
ATO-HTD-150	150g	2.5g	30-150-30g	±2%
ATO-HTD-300	300g	5g	60-300-60g	±2%
ATO-HTD-500	500g	10g	100-500-100g	±2%
Application	Electromechanical Components: Relay & Switch Contact Pressure, Valve Spring Force, Micro-Switch Actuation Force. Precision Mechanisms: Instrument Spindle Pressure, Tape Recorder Buffer Force, Small Spring Tension/Compression.

Features

Side non-slip design: Ensures a secure and comfortable grip during operation for precise measurements.
Durable alloy measuring head: Provides long-lasting performance as a reliable dial cable/wire tension gauge.
Efficient and precise operation: Delivers fast, accurate, and stable readings across all force ranges.
Compact and portable: Allows for easy carrying and use in various locations and applications.
Dual-needle with data hold: One needle captures peak force, making this spring tension meter easy to read.
High-definition scale: Features a clear dial for improved reading accuracy and reduced error.
Comprehensive model range: Offers multiple capacity options to suit different tension measurement needs.

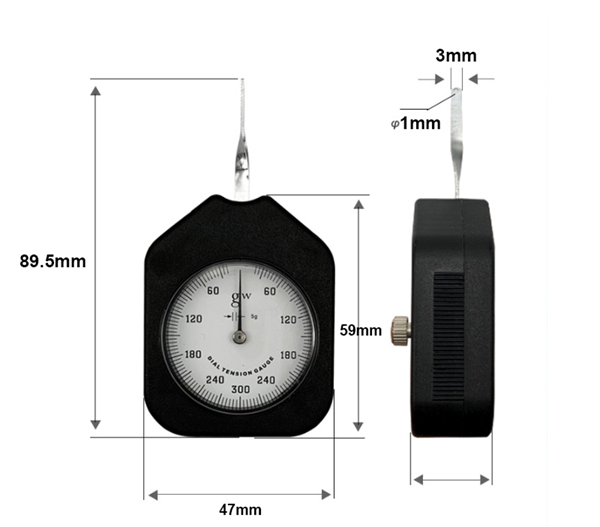

Dimension (Unit: mm)

Dial tension gauge size

Application

Dial tension gauge applications

Tips: How to operate the dial tension gauge correctly?

Operation is simple. Press the contact needle against the object to be tested, moving it from rest to the required position. The dial tension gauge can be used in both clockwise and counterclockwise directions. Always keep the contact needle arm perpendicular to the direction of the push or pull force.
