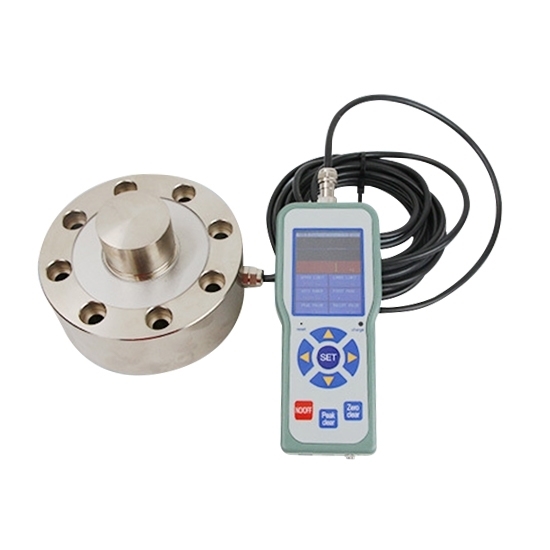

Handheld Tension Compression Force Gauge Meter

Write a review

$585.15

Handheld tension compression force gauge meter delivers high accuracy and strong resistance to off-center loads, featureing a 0-2000KN capacity and constructed from durable alloy steel with an IP65 protection rating. The force gauge meter comes pre-matched with its sensor for immediate use, eliminating complex setup and offers simple operation and a 24-hour continuous battery life, making it ideal for robotics, machinery, automotive, and medical equipment applications.

Measuring Range *

SKU: ATO-FG-GS1315T

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Buy this handheld force gauge online for high-accuracy, 0-2000KN force measurement with strong off-center load resistance. The IP65-rated, alloy steel device is ready for immediate use, featuring a 24-hour battery and suitability for robotics, automotive, and medical applications.

Specification

GSS406 Sensor

Measurement Range	5 ~ 2000 KN
Overall Accuracy	±0.05 ~ 0.1% F.S
Recommended Excitation Voltage	10 VDC
Sensitivity	2.0 mV/V
Safe Overload	150% F.S
Zero Balance	±1% F.S
Ultimate Overload	200% F.S
Creep	±0.05% F.S / 30 min
Insulation Resistance	≥5000 MΩ (50 VDC)
Input Resistance	380 ±10Ω or 750 ±15Ω
Cable	4-core shielded cable
Output Resistance	350 ±3Ω or 700 ±5Ω
Cable Length	<5t: 3m; ≥5t: 6m
TC of Span	±0.05% F.S / 10℃
Protection Rating	IP65
TC of Zero	±0.05% F.S / 10℃
Wiring	Red - Excitation+
	Black - Excitation-
	Green - Signal+
	White - Signal-
Operating Temperature	-20 ~ +65 ℃

GS1315T Handheld Meter

Display Units	kg, t, kN, N, g
Sampling Rate	7.5, 15, 30, 60, 120 Hz
Upper Alarm Limit	-19999~99999
Lower Alarm Limit	-19999~99999
Capture Duration	5~99999 seconds (Returns to measurement interface after capture)
Set Coordinate Range	0~99999
Sensor Calibration	Refer to calibration manual (Do not enter if already calibrated)
Clear Memory	None
Peak Hold Time	0~86400 seconds
First Peak Threshold	0~99999
Wireless Mode Parameters - Optional	Enable/Disable Transceiver (Requires restart after setting)
Decimal Places	0, 1, 2, 3, 4

Feature

Handheld force gauge delivers high-precision measurement with accuracy up to ±0.05% F.S and a measuring range of 5-2000 kN.
Constructed from alloy steel with IP65 protection rating, suitable for various industrial environments.
Excellent anti-eccentric load capability and 150% F.S safe overload capacity ensure measurement reliability.
Pre-calibrated sensor and meter system enables immediate startup without complex setup procedures.
Handheld tension compression force gauge meter offers 24-hour battery life, supports multiple units display and adjustable sampling rates.
Designed for machinery equipment, automotive engineering, medical devices and industrial automation applications.

Detail

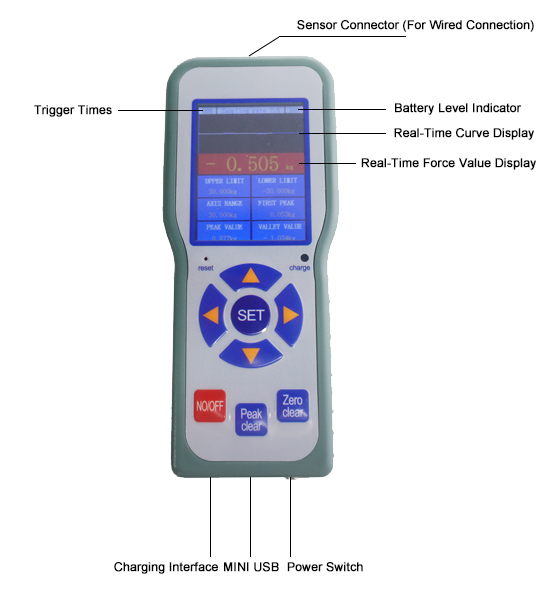

Handheld tension compression force gauge meter detail

Size

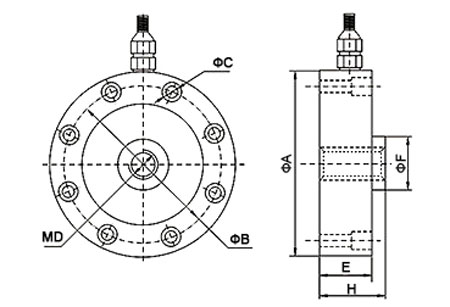

Handheld tension compression force gauge size

Measurement Range		Dimensions (mm)
kN	t	ΦA	ΦB	ΦC	ΦF	MD	H	E
5~70	0.5~7	105	88.9	6.5	32	M16*1.5	37	34
100~250	10~25	125	101.6	8.5	39	M32*1.5	52	48
300~500	30~50	145	116.8	10.5	50	M40*1.5	58	54
600~1000	60~100	205	162	12.5	80	M60*2	85	78
2000	200	296	245	22	136	M90*3	105	100

Application

handheld tension compression force gauge meter application

Tips: Is the handheld force gauge meter's data transmission stable?

Yes, the data transmission of the handheld tension compression force gauge meter is highly stable. Equipped with a high-quality black cable that utilizes superior transmission materials and a rational structural design, it establishes a stable and efficient channel for signal transmission between the sensor and the instrument. In terms of transmission principles, it effectively minimizes signal attenuation and interference during transmission, significantly reducing data disruption. Whether during prolonged force measurement tasks or in complex application scenarios such as challenging electromagnetic environments or simultaneous operation of multiple devices, it consistently maintains stable data transmission. This ensures the accuracy and continuity of data delivery throughout the force measurement process, providing robust support for reliable force measurement work.
