    Two Diaphragms Coupling, 10mm to 20mm

    5 out of 5 based on 1 reviews | Write a review
    Sell 10mm to 20mm diaphragm coupling at low prices, diameter 44mm, length 50mm, rated torque 12 N.m, low inertia, high speed, specially designed for servo motor and stepper motor.
    SKU: ATO-SC-GLM4450
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Two diaphragms coupling length 50mm, width 44mm, bore 10 to 20mm, coupling diaphragm is made of 304 stainless steel, which has strong oxidation resistance and high torsional rigidity for precise positioning.


    Model ATO-SC-GLM4450
    Length 50mm
    Width 44mm
    Bore 10mm to 20mm
    Rated Torque 12 N.m
    Allow Eccentricity 0.22mm
    Allowable Deflection Angle 1.5∠°
    Allowable Axial Deviation ±0.54
    Allowable Speed 10000 RPM
    Static Torsional Stiffness 9000N.m/rad
    Moment of Inertia 3.8 x 10-5
    Weight 140g
    Certificate ISO9001, REACH, RoHS
    Warranty 12 Months

    Bore 10mm to 20mm Diaphragm Coupling Dimension (unit: mm)

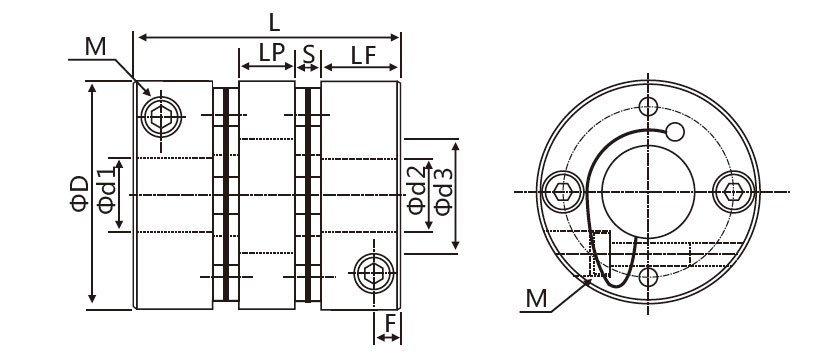

    Shaft coupling dimension

    d1/d2 Inner Diameter Size Φd L LF LP S φd3 F M Tightening Torque
    10-11-12-12.7-14-15-16-17-18-19-20 44 50 14.9 11.2 4.5 22 6.5 M4 3.5 N.m

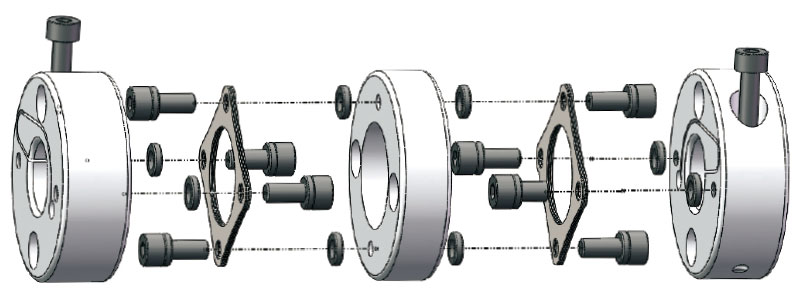

    Diaphragm coupling split graph


    Shaft Diameter Keyway Standard Machining Dimensions Keyway Size
    d1/d2 b t (bXh)
    Width of groove Tolerance Depth of groove Tolerance
    φ6~φ7.9 2 ±0.0125 1 ±0.10 2x2
    φ8~φ10 3 1.4 3x3
    φ10.1~φ12 4 ±0.0150 1.8 4x4
    φ12.1~φ17 5 2.3 5x5
    φ17.1~φ22 6 2.8 6x6
    φ22.1~φ30 8 ±0.0180 3.3 ±0.20 8x7
    φ30.1~φ38 10 3.3 10x8
    φ38.1~φ44 12 ±0.0215 3.3 12x8
    φ44.1~φ50 14 3.8 14x9
    φ50.1~Ф58 16 4.3 16x10
    φ58.1~φ65 18 4.4 18x11

    Keyway Machining Standard Drawing

    Diaphragm coupling keyway dimension

    Tips: Diaphragm coupling application

    Diaphragm couplings are widely used in shaft transmission of various mechanical devices, such as water pumps (especially high-power, chemical pumps), fans, compressors, hydraulic machinery, petroleum machinery, printing machinery, textile machinery, chemical machinery, mining Machinery, metallurgical machinery, aviation (helicopter), naval high-speed power transmission systems, steam turbines, piston-type power mechanical transmission systems, crawler vehicles, and generator sets high-speed, high-power mechanical transmission systems, which are applied to high-speed transmission after dynamic balance shafting.

    Existing reviews of Two Diaphragms Coupling, 10mm to 20mm
    I bought the right size
    I installed some of these 10mm-20mm double diaphragm couplings, the right size, a single screw on each end tightens the collar around the respective shaft, I use it to attach the motor to the lead screw on the small linear slide, they works great.
    From: Darian | Date: 13/04/2022
    Was this review helpful? Yes No (0/0)
