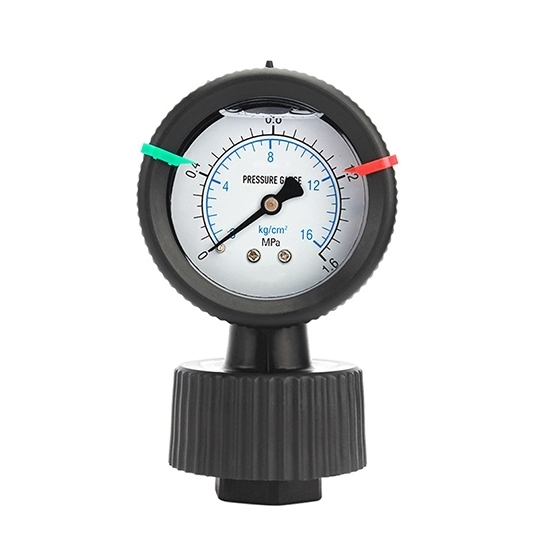

Diaphragm Pressure Gauge, PP Plastic, 0.1~2.5MPa

The diaphragm cupsule pressure gauge in PP plastic is engineered for precision and durability in harsh industrial environments. Designed to handle corrosive fluids and resist vibration, this pressure gauge ensures accurate and stable pressure measurement across a wide range of applications. Below are its key features, specifications, and operational details.

Specification

Feature

• The PP Plastic diaphragm pressure meter is constructed entirely from corrosion-resistant PP plastic, ensuring durability in aggressive media.
• This cupsule pressure gauge incorporates a dual-color ring and memory pointer for intuitive pressure tracking.
• A transparent oil-filled resin cover on the gauge enhances dial visibility and offers protection.
• The diaphragm pressure gauge includes a dual-unit display (kg/cm² and MPa) for operational flexibility.
• Featuring a standardized threaded connection (1/2 PT), the gauge enables secure and straightforward installation.
• Engineered to perform in pulsating and high-vibration settings, the PP plastic diaphragm pressure instruments guarantees long-term accuracy and reliability.

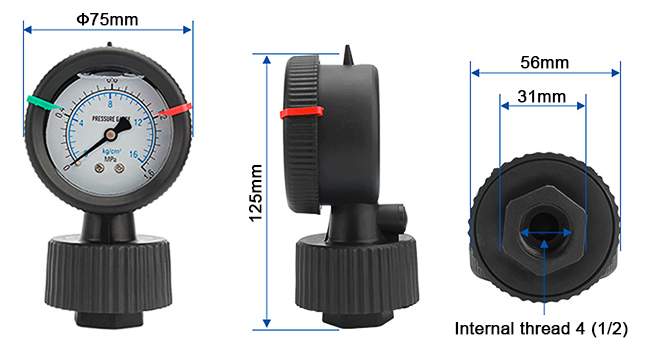

Dimension(Unit: mm)

 Detail

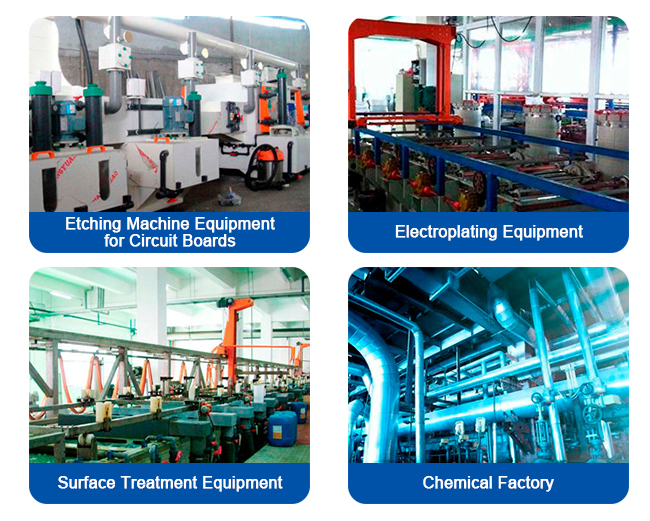

Applications

Tips: Working Principle of the Diaphragm Pressure Gauge

The operating principle of the diaphragm cupsule pressure gauge is based on the fundamental physics of elastic deformation. At the heart of the instrument lies a sensitive, flexible diaphragm, which serves as the primary pressure-receiving element.

When the system's medium (such as a liquid or gas) applies pressure, it acts directly on this diaphragm. In response, the diaphragm undergoes a precise, proportional elastic deformation. This mechanical movement is then transmitted through an internal linkage mechanism which efficiently converts the linear displacement of the diaphragm into a rotational motion.

This rotation drives the pointer, which moves across the calibrated scale to provide a clear and direct pressure reading. To guarantee long-term reliability and accuracy, the critical elastic element (diaphragm) is subjected to a series of rigorous quality tests. These include leak tests to ensure integrity, overpressure tests to verify structural safety, and aging tests to confirm performance stability over time, ensuring the diaphragm pressure test gauge performs consistently under varying and demanding conditions.
