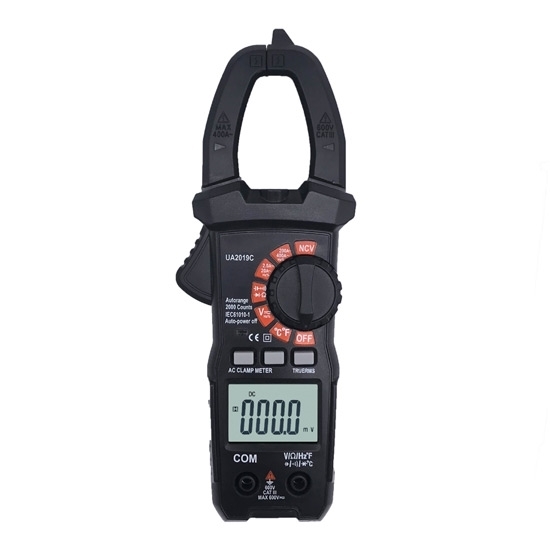

Digital Clamp Meter AC 400 amp with TRMS/NCV/Temperature/Capacitance

5 out of 5 based on 2 reviews | Write a review
$81.89
$90.99
AC clamp meter is a digital clamp multimeter with a selection dial. Digital clamp meter has the measuring range of AC current 0-400A, AC/DC voltage 0-600V, resistance 0-10MΩ, frequency 0-1000kHz, capacitance 0-100mF and temperature -40℃~+1000℃ (-40℉~1832℉). Digital clamp meter has Ture-RMS and NCV functions. The maximum jaw opening size is 25mm.
SKU: ATO-CLAM-2019C
30-day Returns
Free Shipping
Delivery date: 6-12 days

Digital clamp meter has AC current range 0-400A, TRMS/NCV/temperature/capacitance functions, maximum jaw opening size 25mm, 4 digit display and maximum value 5999.

Specification:

Basics Model ATO-UA2019C
Weight 0.4kg
Size (L*W*H) 184*66*32.5mm
Display 4 digit LCD display
Maximum display value 5999
Power supply DC 4.5V, 3 AAA batteries
Maximum jaw opening size 25mm
Woring environment Temperature: 18℃~28℃ (64.4℉~82.4℉), relative humidity:<75%
Storage temperature -10℃~+50℃ (14℉~122℉)
Accessories A pair of test probes, a pair of temperature probes, a user manual, 3 AAA batteries
Functions Item Range Accuracy
AC current 400A ±(1.5%+5 digits)
DC voltage 600V ±(1.0%+5 digits)
AC voltage 600V ±(1.2%+5 digits)
Resistance 10MΩ ±(1.0%+2 digits)
Frequency 1000kHz ±(0.3%+5 digits)
Capacitance 100mF ±(4.0%+3 digits)
Temperature -40℃~+1000℃ (-40℉~1832℉) ±(1.0%+3 digits)
Special functions TRMS True RMS measurement for sine wave signal
NCV Non-contact voltage test, with buzzer and indicator
Diode test Display forward voltage value of diode
On-off buzzer Continuity test buzzer
Data hold Hold the reading when taking a measurement
Automatic power off Automatic power off when 15 minutes no operation
Overload protection Overload protection for 100% range
Range selection Automatic range selection and manual range selection
Back light Back light for LCD display
Inspection light Inspection light for clamp operation

Details

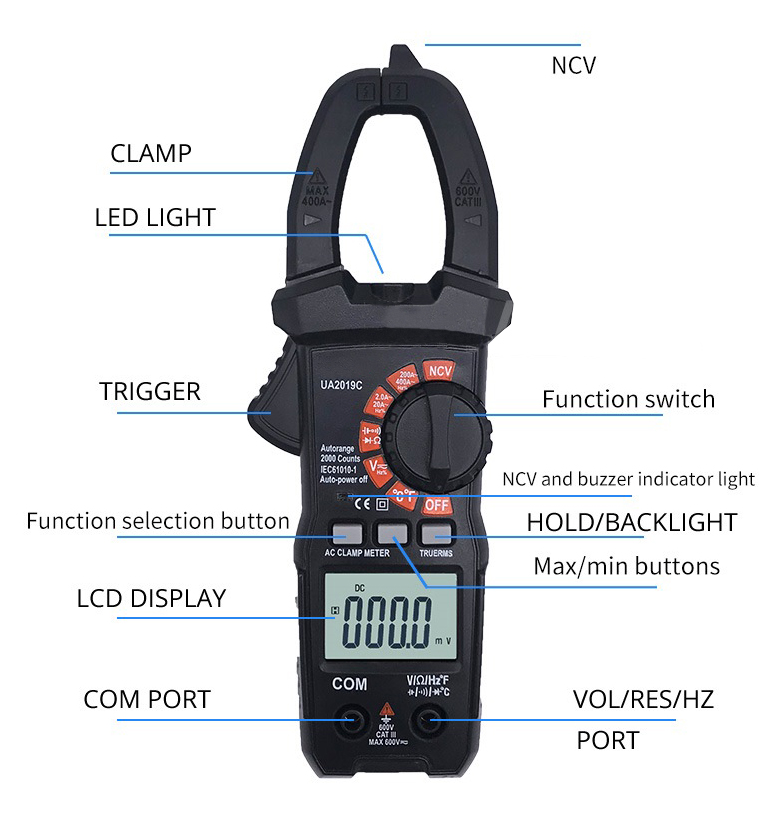

Digital Clamp Meter AC 400 amp Details

Tips: How to measure AC current with a clamp meter?
The clamp meter is a special digital multimeter with clamp head for current measurement. So make sure that the test probes are removed from the clamp meter when using the clamp head to measure AC current. Then follow the operation steps below step by step.

  1. Rotate the measurement function selection dial to the AC current.
  2. Press the trigger to open the clamp, pass the wire to be measured into the centre of the clamp, and then slowly release the trigger until the clamp is fully closed.
  3. Read the measurement result from the LCD.

Note: The clamp meter can only measure one current conductor at a time. If two or more current conductors are measured at the same time, the measurement will be inaccurate.
