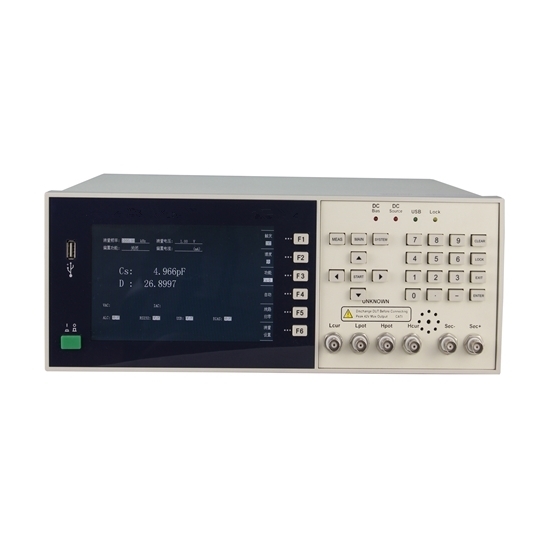

    Digital LCR Meter, 20Hz~1MHz

    $3,817.54
    Digital LCR meter has fair price, high frequency range 20Hz~1MHz. Basic accuracy is 0.05%. Measure inductance (L) max. 9999.99H, capacitance (C) max. 9.9999F, resistance (R) max. 99.9999 MΩ. It is multifunctional digital LCR bridge, supports level/frequency/offset scanning. Easy to study and simple operation.
    SKU: ATO-LCRM-20100
    *
    Free Shipping Worldwide
    Delivery date: 6-20 days

    Features

    • Multi-specification test function, The test voltage or current automatic level control of ALC function.
    • Output impedance of 4 different signal sources: 30Ω, 50Ω, 100Ω, 10/CC.
    • Internal 0V, 1.5V and 2V DC bias voltage, optional ± 5V (± 100mA) and 1A internal DC bias source.
    • Built-in comparator, 10 bins and bin counters. 10 point list scanning function.

    Specification

    Model ATO-LCRM-2828 ATO-LCRM-2819
    Test Frequency 20Hz~1MHz, 0.01Hz resolution 20Hz~500kHz, 0.01Hz resolution
    Test Specifications |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR
    Basic Test Accuracy 0.05%
    Equivalent Circuit Series, parallel
    Mathematical Function Absolute value deviation, percentage deviation
    Range Mode Auto, Hold, manual
    Trigger Mode Internal, Manual, External, Bus
    Measurement Speed (≥1kHz) Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second
    Averaging Rate 1—255
    Delay Time time 0—60s, n 1 ms step by step
    Correction Function Open, short, load
    List Sweep 10 points
    Display Mode Direct, Δ, Δ%, V/I (V/I monitor)
    Display 800×480 RGB7inch 16:9 TFT LCD display
    Power Requirements 110V~240V
    Test signal
    Output Impedance 30Ω, 50Ω, 100Ω, 10/CC selectable
    Test Level Normal: 5mV-2V Accuracy: 10%, with step of 1 mV
    Constant level: 10mV-1V Accuracy: 5%, with step of 1 mV
    DC Bias Source interior: 0V, 1.5V, 2V, Accuracy 1%|
    option: ±5V (±100mA) Dc bias source option 1A: 0-1A DC bias current source option.
    Display Range |Z|, R, X: 0.01MΩ—99.9999 MΩ
    DCR: 0.001MΩ—99.9999MΩ
    |Y|, G, B: 0.00001µS—99.9999S
    C: 0.00001pF—9.9999F
    L: 0.00001µH—9999.99H
    D: 0.00001—9.9999
    Q: 0.00001—9999.9
    θ (DEG): -179.999º—179.999º
    θ (RAD): -3.14159—3.14159
    Comparator Function  10 bins: 9 pass bin, 1 fail bin, AUX bin
    Multiparameter Four parameters can be chosen optionally measure and display at the same time
    Curve Scanning Function A variety of test conditions, the piece to be measured for graph scanning separation
    Memory Internal storage, USB extended storage
    Interface  Standard: RS232C, HANDLER, USB HOST, USB DEVICE, headphone jack, solid interface
    Optional: GPIB, LAN
    Size 375mm (W)*135mm (H)*350mm (L)
    Standard Accessories 26011B 4 terminal Kelvin test clip leads
    26005B 4 terminal test fixture
    26010 gilded shorting plate
    Optional Accessories 26009B SMD test fixture
    26008A SMD Test box
    26010 gilded shorting plate RS232
    Communication software customization

    Panel Details

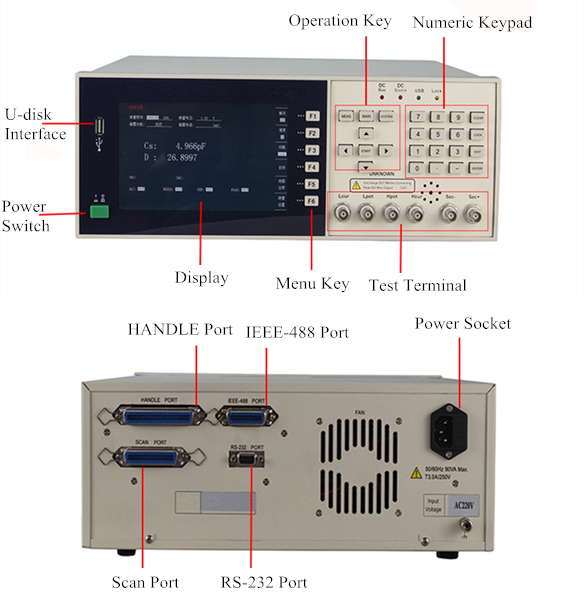

    Panel Details of Digital LCR Meter, 20Hz~1MHz

    Dimension Drawing

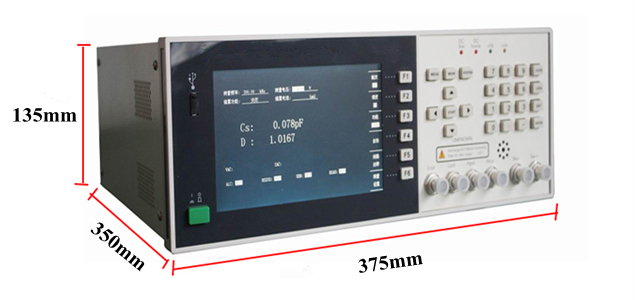

    Dimension Drawing of Digital LCR Meter, 20Hz~1MHz



    Tips: LCR meter measurement steps.

    1. Set the test frequency.
    2. Test voltage or current level.
    3. Select test specifications, such as C, L, X, B, R, G, D, | Z |, | Y |, etc.
    4. Instrument calibration, mainly for open and short calibration, more precise LCR meter also needs to perform load calibration.
    5. Select test fixture.
    6. Fixture compensation
    7. Put the DUT on the fixture to start test.
