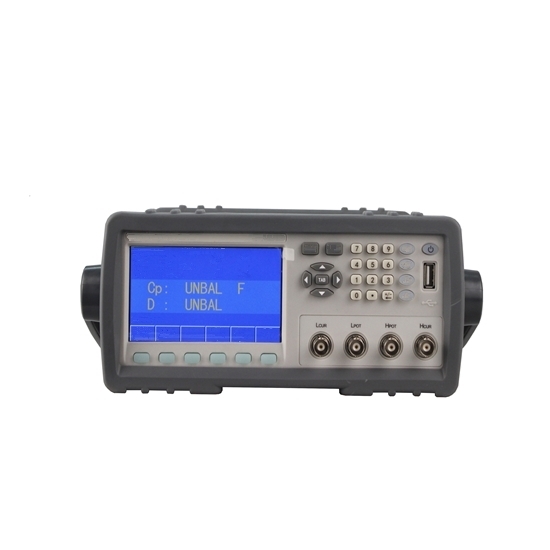

    Digital LCR Meter, 50Hz~200kHz

    5 out of 5 based on 5 reviews | Write a review
    Digital LCR meter for sale. Test frequency 50Hz~200kHz. Measure inductance (L) max. 9999.99H, capacitance (C) max. 9.9999F, resistance (R) max. 99.9999MΩ. Accuracy reach to 0.05%. It is can be used to all kinds of electronic components.
    SKU: ATO-LCRM-5020
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Multi-functional precision digital LCR bridge with affordable price, equipped with 4.3-inch color TFT screen, 32-bit processor core. Test voltage or current automatic level control of ALC function, meet the demand of various occasions component parameter detection. It Is really a kind of high cost performance products tester.


    Model ATO-LCRM-2816
    Test Specifications |Z|, |Y|, C, L, X, B, R, G, D, Q (deg), θ (Rad)
    Test Frequency 50Hz~200kHz total of 37 frequency points
    Basic Test Accuracy 0.05%
    Equivalent Circuit Series, parallel
    Mathematical Function Absolute value deviation, △%
    Range Mode Auto, Hold, manual
    Trigger Mode Internal, Manual, External, Bus
    Measurement Speed (≥1kHz) Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second
    Averaging Rate 1—255
    Delay Time time 0—60s, n 1 ms step by step
    Correction Function Open, short, load
    Test Configuration 5 ports
    List Sweep 4 points
    Display Mode Direct, Δ, Δ%, V/I (V/I monitor)
    Display 6 resolution, 4.3 Inch LCD monitor
    Output Impedance 30 Ω, 100 Ω selectable
    Power Requirements 110V~240V
    Test Level Normal: 5mV-2V, Accuracy: 10%, with step of 1 mV
    Constant level: 10mV-1V, Accuracy: 5%, with step of 1mV
    DC Bias Source 0V, 1.5V, 2V, Accuracy: 1% (customization)
    Display Range |Z|, R, X: 0.01mΩ—99.9999MΩ
    DCR: 0.001mΩ—99.9999MΩ
    |Y|, G, B: 0.00001µS—99.9999S
    C: 0.00001pF—9.9999F
    L: 0.00001µH—9999.99H
    D: 0.00001—9.9999
    Q: 0.00001—9999.9
    θ (DEG): -179.999º—179.999º
    θ (RAD): -3.14159—3.14159
    Comparator Function 10 bins: 9 pass bin, 1 fail bin, AUX bin
    Certification CE
    Memory 100 control setting memory for store/recall, Outside of 500
    Interface RS232C, USB HOST, USB DEVICE

    Panel Details

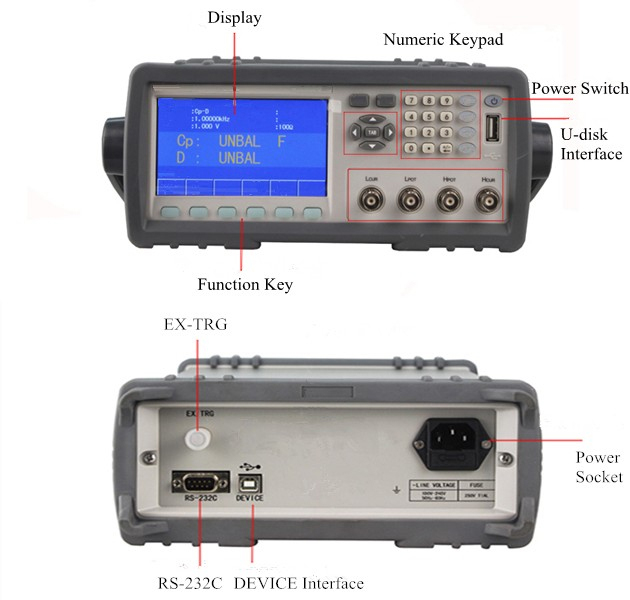

    Panel Details of Digital LCR Meter, 50Hz~200kHz

    Dimension Drawing

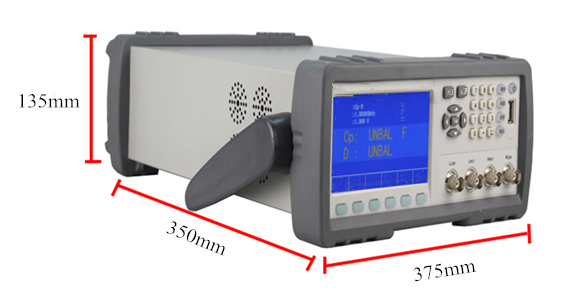

    Dimension Drawing of Digital LCR Meter, 50Hz~200kHz


    Tips: Mode selection for LCR meter when measuring inductance.

    Low impedance devices use series mode, the calculation accuracy will be high. Large impedance devices use parallel mode, the calculation accuracy will be high. If the impedance is greater than several hundred k or M, use parallel mode. In addition, when testing devices with small inductance and capacitance, increasing the test frequency appropriately can improve test accuracy. In practical applications of LCR meters, series mode is used more often.

    Total impedance is greater than 10kΩ, use parallel mode.
    Total impedance is less than 10Ω, use series mode.
    Total impedance is between 10Ω and 10kΩ, measure according to measurement requirements of the LCR meter product manual.
