Handheld LCR Meter, 100Hz~100kHz

5 out of 5 based on 5 reviews | Write a review

$504.62

Cheap handheld LCR meter. Test frequency can select 100Hz~10kHz or 100Hz~100kHz, basic accuracy 0.20%. Measure inductance (L) max. 9999H, capacitance (C) max. 9999μF, resistance (R) max. 99.99MΩ. It is controlled by a high-performance 32 bit ARM microprocessor, the main and secondary specifications are displayed at the same time. Affordable and easy to use.

Test Frequency *

100Hz~10kHz
100Hz~100kHz [+$156.46]

SKU: ATO-LCRM-1010

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Features

2.8-inch true color LCD display with high brightness.
USB communication function, built-in Mini-USB interface (virtual serial port). Comparison function of a set of recorded main specifications.
Switchable attachment (AUX) sequencing correction function: open and short circuit scan frequency removal in full range.
7.4V, 1300mAh charging interface serial port for rechargeable lithium batteries.

Specification

Model	ATO-LCRM-825	ATO-LCRM-826
Test Specifications	L, C, R, Z
Monitoring Specifications	D, Q, θ (deg), θ (rad) ESR
Accuracy	0.20%
Frequency	100Hz, 120Hz, 1kHz, 10kHz, 100kHz	100Hz, 120Hz, 1kHz, 10kHz
Display Range	L: 0.01μH~9999H Q: 0.0001~9999 C: 0.01pF~9999μF θ (deg): -179.99°~179.99° R, Z: 0.0001Ω~99.99MΩ θ (rad): -3.1416~3.1416 D: 0.001~9.999	L: 0.01μH~9999H Q: 0.0001~9999 C: 0.01pF~9999μF θ (deg): -179.99°~179.99° R, Z: 0.0001Ω~99.99MΩ θ (rad): -3.1416~3.1416 D: 0.001~9.999
Source Resistance	100Ω
Range	Automatic or Manual
Maximum Reading	5 bits of main specification and 5 bit display of sub specification
Signal Level	0.6Vrms
Test Speed	4 times/second, 1.5 times/second
Comparator	1 sets, compare main specifications
Adjustment	Open/short scan frequency reset for each range
Interface	Build-in Mini-USB interface (virtual interface) Charging interface
Others	2.8 inch real color 16M color TFT-LCD display, touch screen, data retention function, USB communication, compatible SCPI instruction set, middle and English switching, backlight adjustment, automatic shutdown
Power Requirements	Input: 100~240V, 50/60Hz, 0.35A Output: 9V 1A DC 7.4V Li, 1300mAh Rechargeable battery
Certification	CE
Size (mm)	91 (W) x 194 (H) x 40 (D)

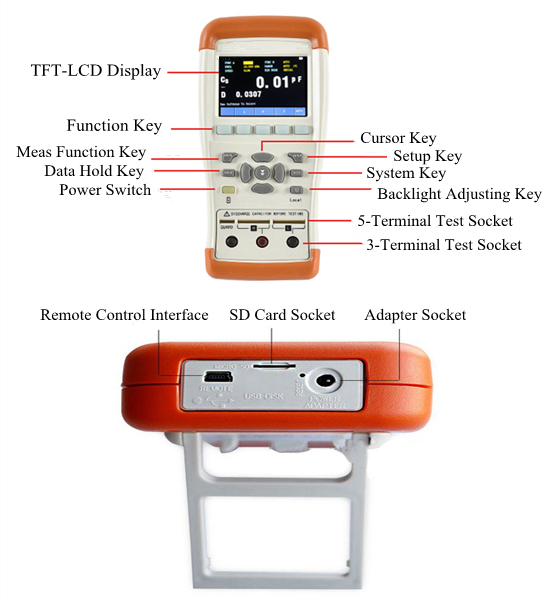

Panel Details

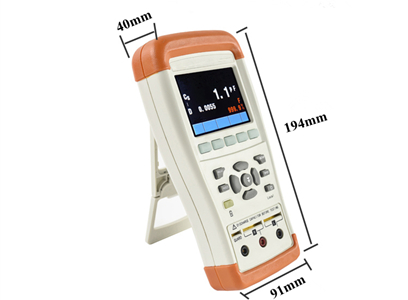

Dimension Drawing

Dimension Drawing of Hand-held LCR Meter, 100Hz~100kHz

Tips: Handheld LCR meter battery replacement.

Use a cross screwdriver to remove screws on the bottom case of handheld LCR meter and open the bottom case.
Remove the battery from battery slot under the motherboard for replacement.
Battery must be rechargeable lithium battery with standard model.
Cover the bottom case and screw on, replacement is complete.

If the handheld LCR meter is not used for more than three months, or the external power adapter is always used for operation, remove the battery to prevent it leakage from corroding circuit board and causing damage to LCR meter.
