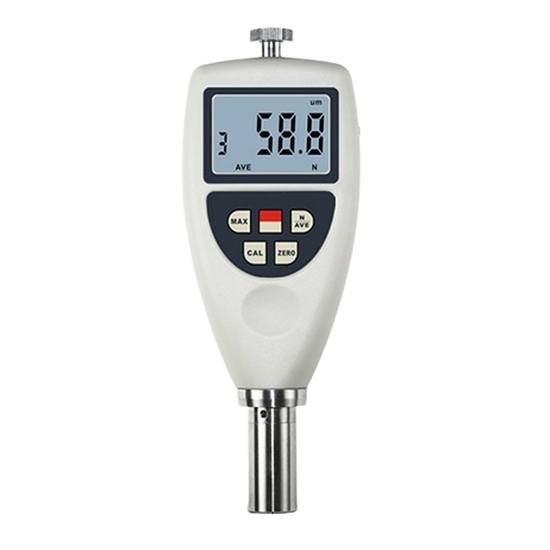

Digital Shore B Hardness Durometer, 90 A~20 D, 10~90H

5 out of 5 based on 1 reviews | Write a review

$718.62

Good price digital shore hardness durometer, type B. Hardness value 90 A to 20 D, measurement range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H, suitable materials moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials. Scale B shore hardness tester with R0.1 cone indenter, supports USB data transmission.

SKU: ATO-SHT-SB9020

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Type B shore hardness durometer with affordable price, digital display, battery powered. Hardness value of the scale B hardness tester is 90 A ~ 20 D, measuring range 10~90H, accuracy ≤ ± 1H, resolution 0.1H. The rating B durometer gauge suits moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials, etc.

Specification

Model	ATO-AS-120B
Hardness Scale	Type B
Hardness Value	90 A ~ 20 D (above 90 A, below 20D)
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R0.1 Cone
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	moderately hard rubber
	thermoplastic elastomers
	paper products
	fibrous materials

Accessories

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

*Note: If you need USB/Bluetooth output, please contact us.

Features

Shore B hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
Shore B hardness durometer has low battery alarm indication and average value calculation function.
The shore B hardness tester has automatic shutdown and manual shutdown functions.
Shore B hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.

Existing reviews of Digital Shore B Hardness Durometer, 90 A~20 D, 10~90H

I like this hardness tester

In a material test, I need to measure rubber and plastic with different softness and hardness. The numerical display of this hardness tester is very clear, the reading is accurate, and it is convenient for me to quickly obtain data. I particularly like its fast response, which can provide stable readings within seconds, greatly improving testing efficiency.

From: Peyton | Date: 25/09/2024

Was this review helpful? Yes No (0/0)

Write your review for Digital Shore B Hardness Durometer, 90 A~20 D, 10~90H
