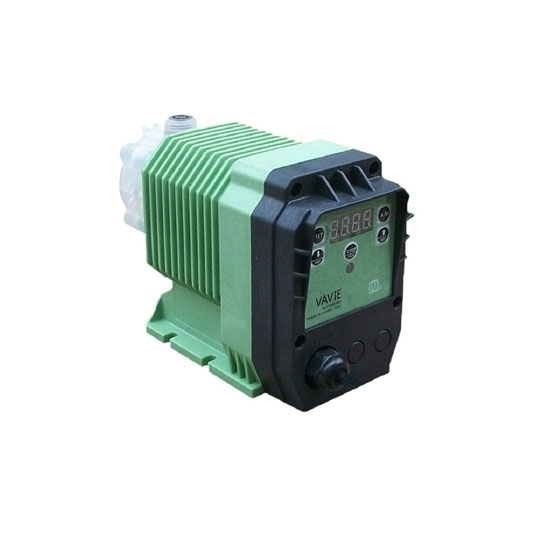

    Diaphragm Dosing Pump, 3.12 L/h Flow

    5 out of 5 based on 1 reviews | Write a review
    $289.86
    Chemical dosing pump flow 3.12 L/h, 12W, 7.6 bar, digital display, good sealing, strong corrosion resistance, diaphragm dosing pump with cycle timer, button control flow, widely used in industrial wastewater treatment.
    SKU: ATO-DP-V003008
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Sell solenoid metering pump at the best price, pressre 7.6 bar, 3.12 L/h flow, used in chemical industry sewage treatment, swimming pool water treatment and reverse osmosis system.

    Solenoid Metering Pump Features

    • Green screen digital display, brand new circuit design, more stable operation
    • Stroke frequency button adjustment
    • New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
    • ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
    • A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
    • Optional low liquid level stop pump and alarm function
    • Added diaphragm damage protection and alarm function
    • Optional external pulse signal or 4-20mA analog signal.

    Diaphragm Dosing Pump Specification:

    Model ATO-DP-V03008
    Power 12W
    Flow 3.12 L/h
    Wet Suction Range 7.6 Bar
    Stroke 120 N/m
    Distance 1.5m
    Dosing Pump Tubing 4 x 6mm
    Interface DN 15mm
    Power Supply 220V
    Repeated Measurement Accuracy -5%~5%
    Allowable Ambient Temperature 5℃~180℃ (PTFE pump head ),
    Allowable Medium Viscosity High viscosity pump head ≤ 1000 mPA.s
    Particle Diameter ≤0.15mm
    Protection Class IP55
    Insulation Class F
    Weight 2.9 kg
    Warranty Period 12 Months

    Chemical Solenoid metering Pump Dimension (unit: mm)
    Dosing pump dimension
    Tips: Structure of diaphragm dosing pump

    Diaphragm: Metering pumps are generally highly corrosive liquids, so they have high anti-corrosion requirements for diaphragms that are in direct contact with the liquid.

    Pump head: pump head is the flow part of the measured fluid, ATO dosing pump pump head has in sealing, corrosion resistance, structural stability.

    Circuit board: generally, there is no process design problem for circuit board, but there are digital circuit and analog circuit, the main quality performance in the sealing, because the circuit board must not enter water vapor.
