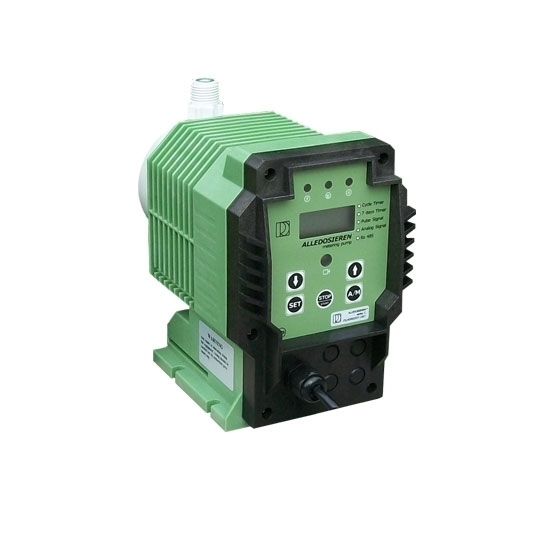

    Diaphragm Dosing Pump, 6.8 L/h Flow

    5 out of 5 based on 1 reviews | Write a review
    Selling diaphragm dosing pump with good stability and performance at a low price, flow 6.8 L/h, pressure 11.3 bar, simple structure, accurate measurement, strong acid and alkali resistance.
    SKU: ATO-DP-C06011
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    6.8 L/h flow solenoid metering pump with cycle timer, optional 7 days timer, it is used to add additives in the production process of metal, textile and paper industry.

    6.8 L/h Flow Diaphragm Metering Pump Features

    • Green screen digital display, brand new circuit design, more stable operation
    • Stroke frequency button adjustment
    • Standard configuration cycle timer, optional 7-day timer
    • Dosing pump can directly compile external signals without a converter
    • New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
    • ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
    • A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
    • Optional low liquid level stop pump and alarm function
    • Added diaphragm damage protection and alarm function
    • Optional Rs485 by Modbus-RTU

    Diaphragm Dosing Pump Specification:

    Model ATO-DP-C06011
    Power 40W
    Flow 6.8 L/h
    Pressure 11.3 Bar
    Stroke 90 N/m
    Wet Suction Range 1.5m
    Dosing Pump Hose 4 x 6mm
    Interface DN 15mm
    Power Supply 220V
    Repeated Measurement Accuracy -5%~5%
    Allowable Ambient Temperature 5℃~180℃ (PTFE pump head ),
    Allowable Medium Viscosity High viscosity pump head ≤ 1000 mPA.s
    Particle Diameter ≤0.15mm
    Protection Class IP55
    Insulation Class F
    Weight 4.5 kg
    Warranty Period 12 Months

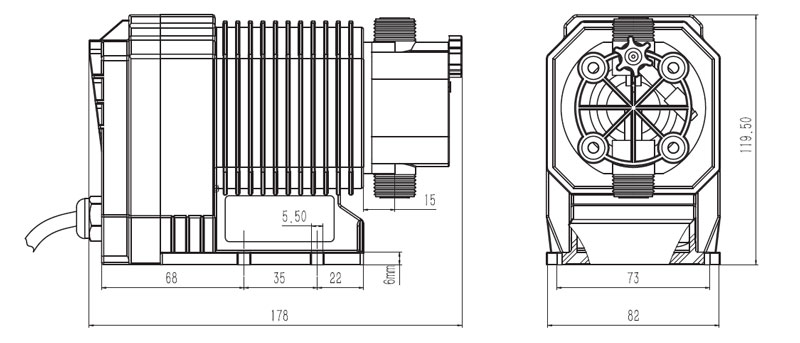

    LCD Display Dosing Pump Dimension (unit: mm)
    Dosing pump dimension
    Tips for installing a diaphragm metering pump

    Do not install the diaphragm metering pump where it is prone to contact with moisture or corrosive gas.

    If the metering pump needs to be installed on the medicine barrel, it should not be higher than 1.5M. Anything larger than this value will affect the inhalation of the metering pump. Please place it in a spacious place due to the need for equipment maintenance and inspection.

    The dosing pump should be installed on the high concrete 300-500 mm above the ground, or on a corresponding sturdy machine base, and the pump should be calibrated in a horizontal state.
