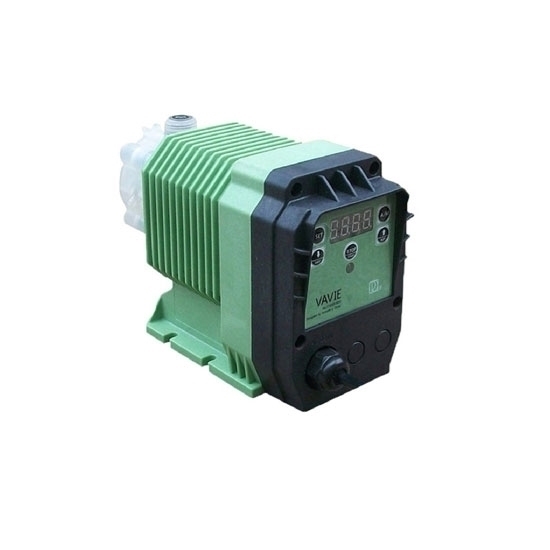

Diaphragm Dosing Pump, 9 L/h Flow

5 out of 5 based on 2 reviews | Write a review

$289.86

Sell diaphragm dosing pump at the best price, 9 L/h flow, 3.5 bar pressure, digital display metering pump, used in paper industry, industrial wastewater treatment and water treatment plant.

SKU: ATO-DP-V09003

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

Diaphragm solenoid metering pump for sale, flow 9 L/h, 24 watt, resistant to weak acid and alkali, low price, button adjustment to control the flow rate, easy to use.

9 L/h Diaphragm Metering Pump Features

Green screen digital display, brand new circuit design, more stable operation
Stroke frequency button adjustment
New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
Optional low liquid level stop pump and alarm function
Added diaphragm damage protection and alarm function
Optional external pulse signal or 4-20mA analog signal.

Diaphragm Dosing Pump Specification:

Model	ATO-DP-V09003
Power	24W
Flow	9 L/h
Pressure	3.5 Bar
Stroke	120 N/m
Wet Suction Range	1.5m
Dosing Pump Tubing	4 x 6mm
Interface	DN 15mm
Power Supply	220V
Repeated Measurement Accuracy	-5%~5%
Allowable Ambient Temperature	5℃~180℃ (PTFE pump head ),
Allowable Medium Viscosity	High viscosity pump head ≤ 1000 mPA.s
Particle Diameter	≤0.15mm
Protection Class	IP55
Insulation Class	F
Weight	2.9 kg
Warranty Period	12 Months

Digital Dosing Pump Dimension (unit: mm)

*WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Existing reviews of Diaphragm Dosing Pump, 9 L/h Flow

About the chemical compatibility

Hello, what is the chemical compatibility of your pump? The description says weak acid and base, but the only material listed is PTFE. I work with strong acids and bases and would like to know if you have a list of whetted materials in the pump or a list of chemicals that are compatible with it.

From: Griot | Date: 12/12/2024

Was this review helpful? Yes No (0/0)

ATO Responded

What medium are you using? If it is strong acid or alkali, we recommend that the pump head material is PVDF. The pump seal material options include: EPDM, FKM, NBR, PTFE.

I am pleased with this diaphragm metering pump

I have been using the diaphragm metering pump for a few months now and I must say that it has changed the way I work. ATO diaphragm metering pump is accurate and I highly recommend it!

From: Qunta | Date: 14/02/2023

Was this review helpful? Yes No (0/0)

Load more reviews...
