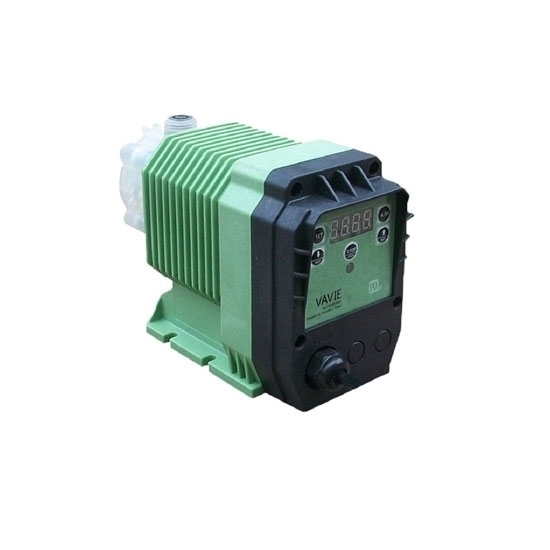

    Diaphragm Dosing Pump, 5.04 L/h Flow

    5 out of 5 based on 1 reviews | Write a review
    Diaphragm dosing pump power 16W, AC 220V, flow 5.04 L/h, press the button to adjust the flow rate, and control the flow rate more accurately. Solenoid metering pump with cycle timer, the pump head is well sealed, suitable for a wider range of medium delivery.
    SKU: ATO-DP-V05006
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Diaphragm solenoid metering pump flow 5.04 L/h, pressure 6.2 bar, 16 watt, the outlet flow of the pump can be realized according to the speed of the adjustment stroke frequency.

    5.04 L/h Diaphragm Metering Pump Features

    • Green screen digital display, brand new circuit design, more stable operation
    • Stroke frequency button adjustment
    • New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
    • Designed according to IP65 protection level
    • ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
    • A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
    • Optional low liquid level stop pump and alarm function
    • Added diaphragm damage protection and alarm function
    • Optional external pulse signal or 4-20mA analog signal.

    Diaphragm Dosing Pump Specification:

    Model ATO-DP-V05006
    Power 16W
    Flow 5.04 L/h
    Pressure 6.2 Bar
    Stroke 160 N/m
    Wet Suction Range 1.5m
    Dosing Pump Tubing 4 x 6mm
    Interface DN 15mm
    Power Supply 220V
    Repeated Measurement Accuracy -5%~5%
    Allowable Ambient Temperature 5℃~180℃ (PTFE pump head ),
    Allowable Medium Viscosity High viscosity pump head ≤ 1000 mPA.s
    Particle Diameter ≤0.15mm
    Protection Class IP55
    Insulation Class F
    Weight 2.9 kg
    Warranty Period 12 Months

    Digital Dosing Pump Dimension (unit: mm)
    Dosing pump dimension
    Why use metering pumps for fluid transport equipment?

    In the transmission of fluid need to measure how much need to use metering pump because the metering pump is a reciprocating displacement pump, measurement accuracy <1%, so most of the use of metering pump metering equipment. In addition, high pressure to use hydraulic metering pump, suitable for high pressure and small flow occasions. Diaphragm metering pump without leakage, suitable for transporting corrosive, radioactive and other liquid materials, can be used in different industries of fluid and mixed art widely can be used in any place.

    Existing reviews of Diaphragm Dosing Pump, 5.04 L/h Flow
    Great Value for the Money
    Diaphragm dosing pump works perfectly. So far its been about 3 months and it is still spot on and so are my parameters.
    From: Paradox | Date: 25/05/2022
    Was this review helpful? Yes No (0/0)
