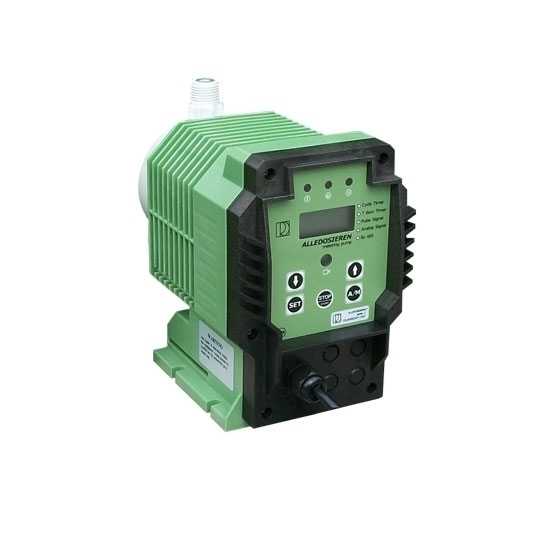

    Diaphragm Dosing Pump, 16.8 L/h Flow

    5 out of 5 based on 1 reviews | Write a review
    Chemical diaphragm dosing pump for water treatment plant, flow can be adjusted to 16.8L/m by pressing the button, pressure 4.2 bar, the nature of strong acid and strong alkali resistance makes dosing pump used in a wide range of media.
    SKU: ATO-DP-C16005
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Manufacturer direct sales dosing pump, flow 16.8 L/m, 49 watt, LCD display, power supply 220VAC, standard configuration cycle timer, optional 7-day timer.

    16.8 L/h Flow Diaphragm Metering Pump Features

    • Green screen digital display, brand new circuit design, more stable operation
    • Stroke frequency button adjustment
    • Standard configuration cycle timer, optional 7-day timer
    • Dosing pump can directly compile external signals without a converter
    • New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
    • ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
    • A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
    • Optional low liquid level stop pump and alarm function
    • Added diaphragm damage protection and alarm function
    • Optional Rs485 by Modbus-RTU

    Diaphragm Dosing Pump Specification:

    Model ATO-DP-C16005
    Power 49W
    Flow 16.8 L/h
    Pressure 4.2 Bar
    Stroke 160 N/m
    Wet Suction Range 2.0m
    Dosing Pump Hose 6 x 9mm
    Interface DN 15mm
    Power Supply 220V
    Repeated Measurement Accuracy -5%~5%
    Allowable Ambient Temperature 5℃~180℃ (PTFE pump head ),
    Allowable Medium Viscosity High viscosity pump head ≤ 1000 mPA.s
    Particle Diameter ≤0.15mm
    Protection Class IP55
    Insulation Class F
    Weight 4.5 kg
    Warranty Period 12 Months

    LCD Display Dosing Pump Dimension (unit: mm)
    Dosing pump dimension
    Tips: Electromagnetic diaphragm metering pump features

    • Low price
    • No dynamic seal, no leakage
    • Small size, light weight, convenient operation
    • Diaphragm dosing pump is suitable for micro-dosing systems such as laboratories, water treatment, swimming pools, vehicle cleaning, small towers, and reverse osmosis water treatment systems
