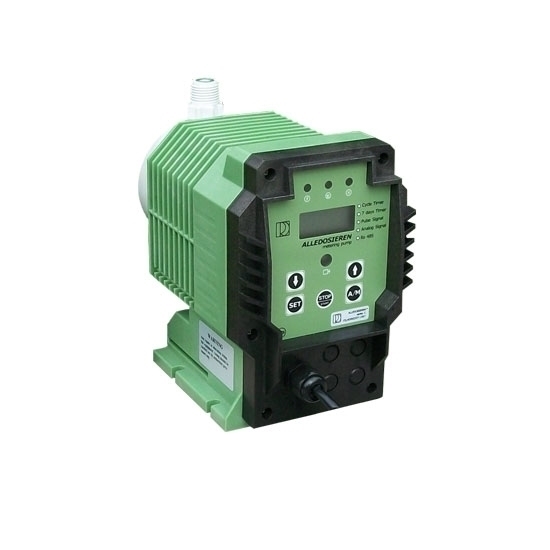

Diaphragm Dosing Pump, 21.6 L/h Flow

4.5 out of 5 based on 2 reviews | Write a review

$998.78

Manufacturer direct sales diaphragm dosing pump, flow 21.6 L/m, LCD display, 49W, supply voltage AC 220V, good sealing, strong corrosion resistance, 12 months warranty.

SKU: ATO-DP-C20003

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Diaphragm dosing pump is a type of dosing pump, cyclic timing design, flow 21.6 L/h, stroke 160 N/m, strong corrosion resistance, widely used for chemical addition in power plants, steel and petrochemical systems.

21.6 L/h Flow Diaphragm Metering Pump Features

Green screen digital display, brand new circuit design, more stable operation
Stroke frequency button adjustment
Standard configuration cycle timer, optional 7-day timer
Dosing pump can directly compile external signals without a converter
New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
Optional low liquid level stop pump and alarm function
Added diaphragm damage protection and alarm function
Optional Rs485 by Modbus-RTU

Diaphragm Dosing Pump Specification:

Model	ATO-DP-C20003
Power	49W
Flow	21.6 L/h
Pressure	3.5 Bar
Stroke	160 N/m
Wet Suction Range	2.0m
Dosing Pump Hose	6 x 9mm
Interface	DN 15mm
Power Supply	220V
Repeated Measurement Accuracy	-5%~5%
Allowable Ambient Temperature	5℃~180℃ (PTFE pump head ),
Allowable Medium Viscosity	High viscosity pump head ≤ 1000 mPA.s
Particle Diameter	≤0.15mm
Protection Class	IP55
Insulation Class	F
Weight	4.5 kg
Warranty Period	12 Months

LCD Display Dosing Pump Dimension (unit: mm)

Tips: Diaphragm metering pump applications

Diaphragm metering pump can be used for sewage treatment in electroplating, circuit boards, and chemical industries
Additives added in the production process of metal, textile and paper industry
Used for chemical addition in power plants, steel, petrochemical, and boiler systems
Diaphragm metering pump can be used for swimming pool water treatment, reverse osmosis system, industrial wastewater treatment, various factories, laboratories, etc.
