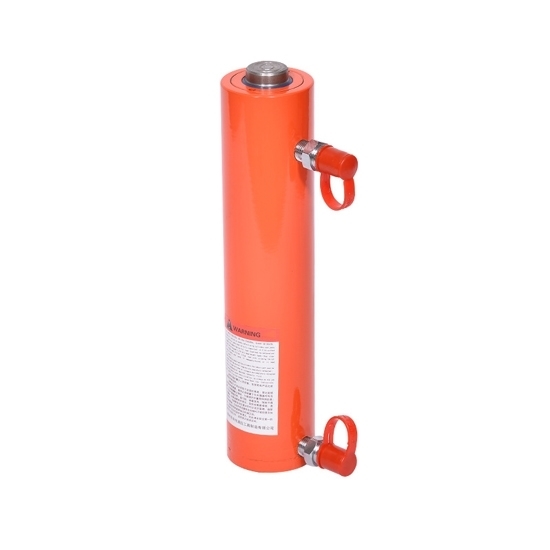

    50 ton/100 ton/150 ton/200 ton Double Acting Hydraulic Jack

    $755.53
    50 ton/100 ton/150 ton/200 ton double acting hydraulic jack is designed for efficient and safe lifting of objects. 120mm-300mm stroke is available. This hydraulic bottle jack is widely used in industrial equipment lifting installation, commissioning, maintenance, underground pipe jacking and other operations.
    *
    *
    *
    *
    *
    SKU: ATO-DAHJ-QF
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    50 ton/100 ton/150 ton/200 ton double acting hydraulic jack manufacturer direct sale. It is a hydraulic bottle jack, specially used for lifting heavy objects safely, used in transportation, railways, bridges, shipbuilding, construction, industry and mining and other industries. 120mm/160mm/200mm/300mm stroke for selection.

    Features

    • 50 ton/100 ton/150 ton/200 ton hydraulic jack is double-acting, with oil pressure used for retraction. Its cylinder piston rod has a metal coating to reduce friction and prevent air corrosion.
    • This double-acting hydraulic jack's overflow function limits the stroke, and a safety pressure-maintaining device is designed to prevent sudden overpressure. The hydraulic jack's special structure protects it, and it can bear an eccentric load that is 15% of the rated load capacity of the hydraulic cylinder. The hydraulic jack's high-strength alloy steel makes it durable, especially for large-scale applications, and it is easy to operate and control.
    • ATO double-acting hydraulic jack is coated with high-temperature paint, making its surface resistant to corrosion and impact. The dust ring design reduces pollution and extends its service life.

    Specifications

    Model Tonnage Stroke Min. Height Extended Height Oil Dia. Oil Dia. Piston Rod Diameter Pressure
    QF50-125 50 ton 125mm 250mm 375mm 130mm 100mm 70mm 63Mpa
    QF50-160 160mm 285mm 445mm
    QF50-200 200mm 325mm 525mm
    QF100-125 100 ton 125mm 275mm 400mm 180mm 140mm 100mm
    QF100-160 160mm 310mm 470mm
    QF100-200 200mm 350mm 550mm
    QF150-160 150 ton 160mm 345mm 505mm 230mm 180mm 125mm
    QF150-200 200mm 385mm 585mm
    QF200-125 200 ton 125mm 310mm 435mm
    QF200-160 160mm 340mm 500mm 270mm 200mm 145mm
    QF200-200 200mm 380mm 580mm
    QF200-300 300mm 480mm 780mm

    Notes: If you need a matching 3 phase 380V or 3 phase 220V electric pump, please contact us.

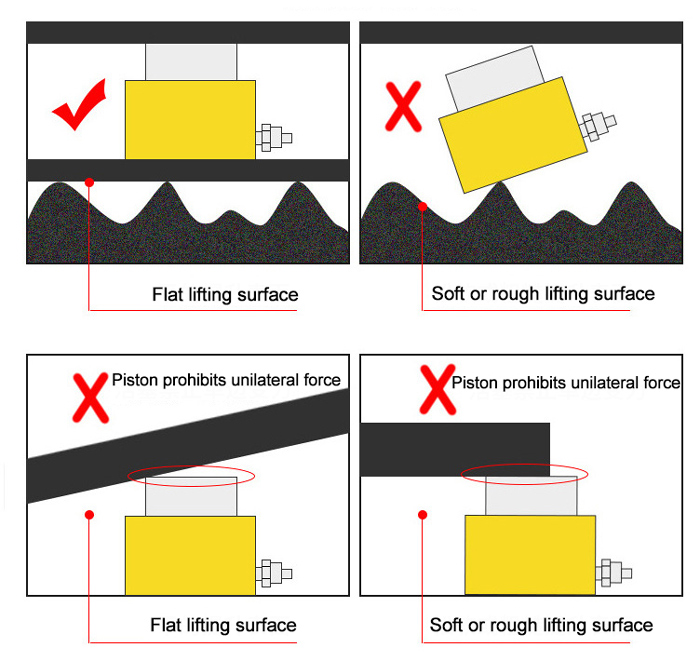

    Tips for Using the Double-Acting Hydraulic Jack

    Double-acting hydraulic jack tips

    Tips: Difference between single-acting hydraulic jack and double-acting hydraulic jack

    A single-acting hydraulic jack uses hydraulic pressure to move the piston in one direction (usually extension), while retraction relies on external forces such as a spring or gravity. In contrast, a double-acting hydraulic jack uses hydraulic pressure to move the piston in both directions, allowing controlled extension and retraction. This makes the double-acting jack more versatile and suitable for applications requiring precise movement in both directions.
