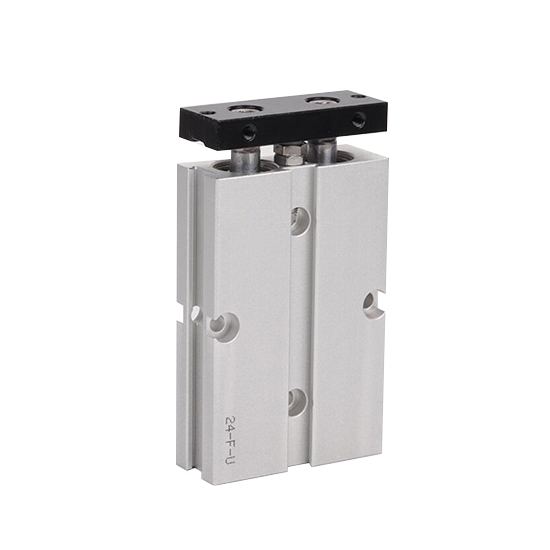

    Double Rod Cylinder, 40mm Bore, 300mm Stroke, Double Acting

    $234.15
    Double rod cylinders come in bore sizes of 10, 16, 20, 25, 32 and 40mm with stroke lengths from 10 to 300mm. Double acting and compact structure with the stroke being adjustable. Mounting holes on different sides allow multi-position mounting of workpieces. Made up of various materials such as carbon steel, aluminum alloy and S45C, etc., delivering enhanced ruggedness and reliability.
    SKU: ATO-CP-TN
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Double-acting dual rod cylinders with customized bore and stroke (max. stroke length up to 300mm) have good resistance to bending and twisting moments. Speed range is between 30 and 500mm/s. They are kindly designed with a bumper which can relieve the impact so as to minimize the potential damage caused by external force.

    Product features:

    1. There are magnetic switch slots around the cylinder body convenient to install inductive switches.
    2. Embedded installation and fixation mode saves the installation space.
    3. It has good resistance to bending and twisting moments, and it can withstand a certain level of side load.
    4. Mounting holes on three sides facilitates multi-position mounting.
    5. Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.
    6. Standard configuration of this series has magnet and the type without magnet is not available.

     Specifications:

    Model ATO-CP-TN
    Bore size 10mm 16mm 20mm 25mm 32mm
    Acting type Double acting
    Fluid Air (to be filtered by 40 um filter element)
    Operating pressure 0.15~1.0MPa (22~145psi)
    Proof pressure 1.5MPa (215psi)
    Temperature -20~70℃
    Speed range 30~500mm/s
    Adjustable stroke -10~0mm
    Stroke tolerance Stroke≤100+1.00    Stroke>100+1.50
    Cushion type Bumper
    Non-rotating tolerance (Retract position) ±0.4° ±0.3°
    Port size M5 × 0.8 1/8″
    Weight 1Kg  2Kg  3Kg  4Kg  5Kg

     Stroke:

    Bore size Standard stroke Max. std stroke
    10mm 10  20  30  40  50  60  70  80  90  100mm 100mm
    16mm 10  20  30  40  50  60  70  80  90  100  125  150  175  200mm 200mm
    20mm 10  20  30  40  50  60  70  80  90  100  125  150  175  200mm 200mm
    25mm 10  20  30  40  50  60  70  80  90  100  125  150  175  200mm 200mm
    32mm 10  20  30  40  50  60  70  80  90  100  125  150  175  200mm 200mm
    Note: When the stroke less than or equal to 100mm, the dimensions of non-std stroke cylinder has the same dimensions as the next longer stroke std. stroke cylinder, e.g. 35mm stroke cylinder has the same dimensions of 40 std. stroke cylinder.

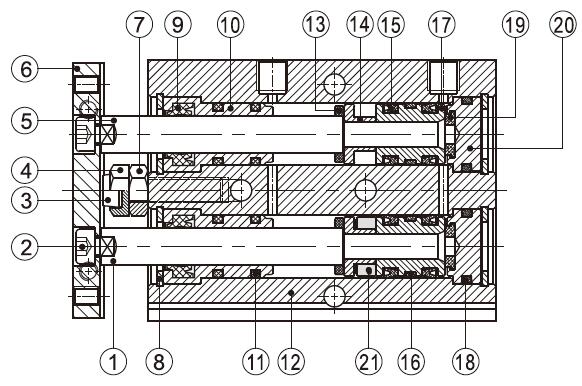

    Inner structure and material of major parts:

    double rod cylinder inner structure and material of major parts

    NO. Item Material
    1 Piston
    rod B
    Φ32 S45C
    Other SUS303
    2 Screw Carbon steel
    3 Bumper POM
    4 Adjustable nut Carbon steel
    5 Piston rod A S45C
    6 Fixing plate Free cutting steel
    7 Screw Carbon steel
    8 C clip Spring steel
    9 Wiper seal NBR
    10 Front cover Aluminum alloy
    11 O-ring NBR
    12 Body Aluminum alloy
    13 Bumper TPU
    14 Magnet
    holder
    Φ10 SUS303
    Other Aluminum alloy
    15 Piston seal NBR
    16 Wear ring Wear resistant material
    17 Piston Φ10 SUS303
    Other Aluminum alloy
    18 Seal ring NBR
    19 Bumper TPU
    20 Back cover Aluminum alloy
    21 Magnet Sintered metal (Neodymium-iron -boron)

    Dimensions (unit:mm):

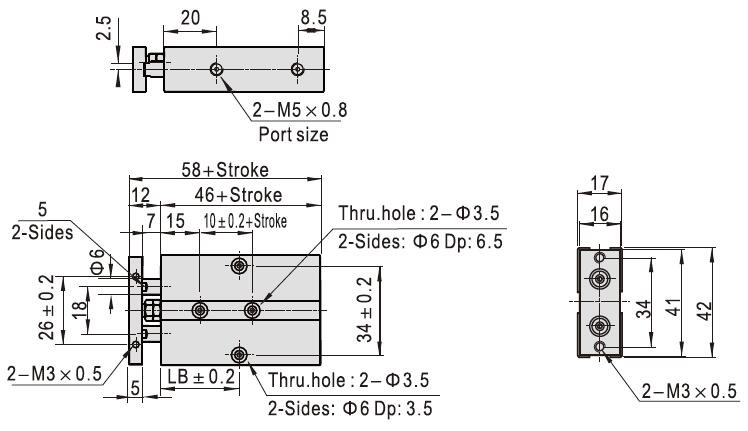

    TN10

    dimensions of TN10

    Item/Stroke 10 20 30 40 50 60 70 80 90 100
    LB 30 30 35 40 45 50 55 60 65 70

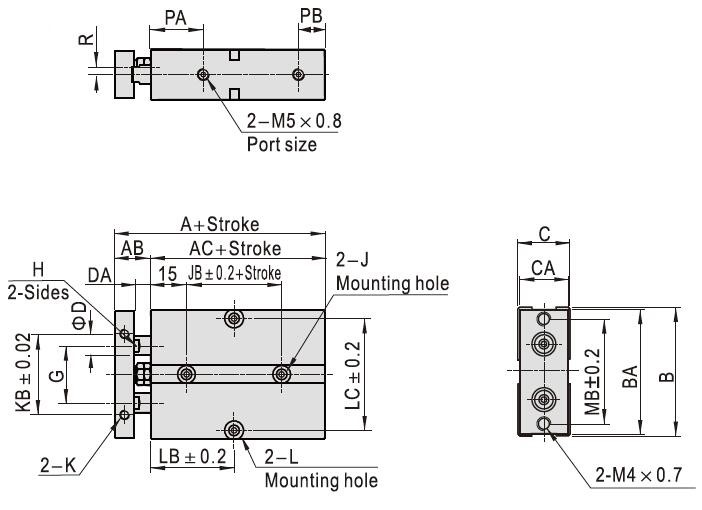

    TN16~25

    dimensions of TN16-25

    Bore size/Item A AB AC B BA C CA D DA G H J
    16 68 15 53 54 53 21 20 8 7 24 6 Both sides: Φ7.5Dp:7.5Thru.hole:Φ4.5
    20 78 20 58 62 61 25 24 10 10 28 8 Both sides: Φ7.5Dp:7.5Thru.hole:Φ4.5
    25 81 19 62 73 72 30 29 12 9 34 10 Both sides: Φ7.5Dp:7.5Thru.hole:Φ4.5
    Bore size/Item JB K KB PA PB L LC MB R
    16 20 M4×0.7Dp:5 34 22 11 Both sides: Φ8Dp:4.5Thru.hole:Φ4.5 47 47 3
    20 20 M4×0.7Dp:5 44 25 12 Both sides: Φ8Dp:4.5Thru.hole:Φ4.5 55 55 3.5
    25 30 M4×0.7Dp:6 56 27 12 Both sides: Φ8Dp:4.5Thru.hole:Φ4.5 66 66 6
    Bore size/Item LB
    Stroke ≤ 10 20 30 40 50 60 70 80 90 100 125 150 175 200
    16 30 35 40 45 50 55 60 65 70 75 87.5 100 112.5 125
    20 35 35 40 45 50 55 60 65 70 75 87.5 100 112.5 125
    25 40 40 45 50 55 60 65 70 75 80 92.5 105 117.5 130

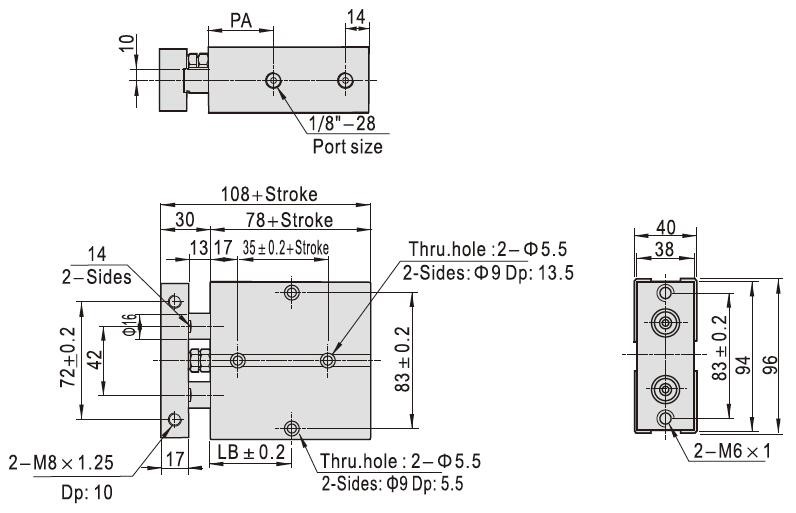

    TN32

    dimensions of TN32

    Item/Stroke 10 20 30 40 50 60 70 80 90 100 125 150 175 200
    LB 45 50 55 60 65 70 75 80 85 90 102.5 115 127.5 140
    PA 35 40

    Note: As the precision of the manufacture and guide is high, please do not dismantle the fixed block or cylinder cover.

    Likewise, the stroke length of dual rod cylinders are customizable with additional costs and the function of high temperature resistance is optional.

    Bore size
    Extra rates


    10mm 16mm 20mm 25mm 32mm 40mm
    Stroke length plus 50mm $1.23 $1.54 $1.85 $2.46 $3.08 $9.54
    High temperature resistance $1.85 $2.15 $2.77 $2.92 $3.85 $4.92

    Tips: Brief introduction about dual rod cylinders

    The double rod cylinder is a cylindrical metal machine part that drives the piston to reciprocate in the cylinder. Air in the engine cylinder converts thermal energy into mechanical energy through expansion, and the gas is compressed by the piston in the compressor cylinder to increase the pressure. The casing of turbines and rotary piston engines usually belongs to cylinder. Applications of air cylinders are commonly found in printing (used for tension control), semiconductors (such as welding machine and chip grinding), automation control, robots and many others. Double acting cylinders work by supplying air alternately from both ends of the piston, producing force in one or two directions.
