Electromagnetic Relay, 14-pin 4PDT, 12V/24V/110V/220V

5 out of 5 based on 1 reviews | Write a review

$53.77

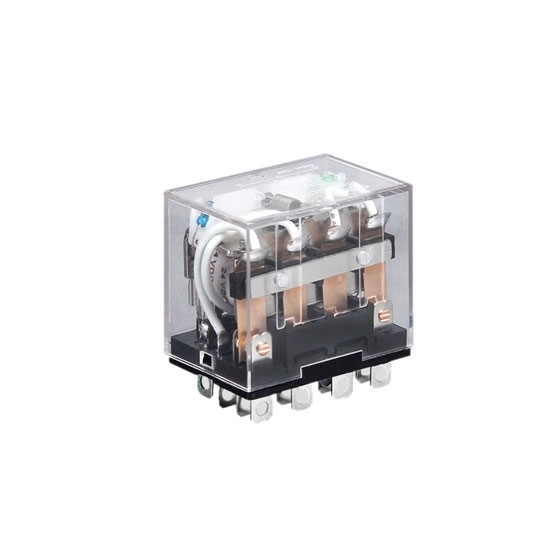

Compact-size electromagnetic relay, 14-pin 4PDT, available for 12V DC/24V DC/110VAC/220V AC coil voltage for your selection, contact load 10A/240V AC 28V DC, transparent housing, silver alloy contacts with long lifespan.

Coil Voltage(V) *

SKU: ATO-EMR-13F4Z

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Electromagnetic relay with 14-pin design, 4PDT contact form, and widely used in electronic equipment, communication equipment, automatic control system, automobile, household appliances, instrument and meters, etc.

Specification

Basics	Model		ATO-JQX-13F-4Z (Relay with Socket)
	Dimension (LWH)		27.5×41×35mm
	Weight		60g
	Ambient Temperature		-25℃~+55℃
	Terminal Type		Plug in
	Number of Pins		14
Technical Parameters	Contact Form		4PDT
	Contact Material		Silver alloy
	Contact Capacity (Resistive load)		10A/240V AC 28V DC
	Coil Power		DC≤1.5W, AC≤3.0VA
	Coil Voltage		Optional: 12V DC, 24V DC, 12V AC, 24V AC, 36V AC, 110V AC, 220V AC
	Pick-up Voltage at 23℃		DC≤75%, AC≤80%
	Drop-out Voltage at 23℃		DC≥10%, AC≥30%
	Contact Resistance @6V DC 1A		≤100MΩ
	Dielectric Strength	Between open contact	≥1200V AC 50Hz/1min
		Between adjacent contact	≥1500V AC 50Hz/1min
		Between coil & contact	≥1500VAC 50Hz/1min
	Leakage current		≤1mA
	Insulation Resistance (MΩ)		≥500MΩ at 500V DC
	Service life	Electrical	10⁵ Times (Frequency: On 1 Time/1s, Off 1 Time/1s)
		Mechanical	10⁶ Times (Frequency: 300 Time/1min)

Note: Here just shows the contact form 4PDT, and another contact forms 4NO and 4NC are still available. What's more, please kindly note that other coil voltages are also available(DC: 6-220V; AC: 6-380V). If you have any requirments, please don't hesitate to contact us.

Dimensions & Connection Diagram

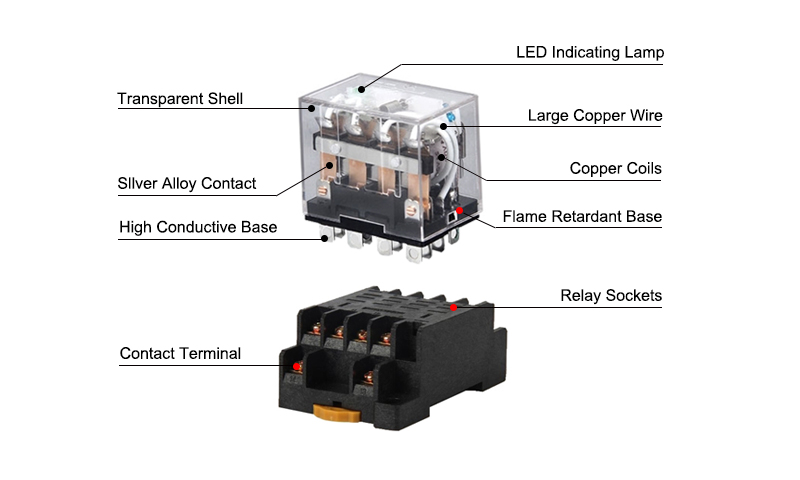

Details

Tips: What fators affect the reliability of relays?

Environment
Average fault interval of relays varies in different working environment.
Quality grade
Quality grade has great influence on reliability of relays.
Contact forms
SPST relays appear more reliable than SPDT relays with same number of poles. Their reliability reduces with increase of poles. Average fault interval of SPST relays is 5.5 times more than that of 4PDT (four-pole double-throw) relays.
Structure
Different structures of relays have great influence on their reliability.
Temperature
Relays work in a temperature of -25~70℃. Average fault interval of relays reduces with rise of temperature.
