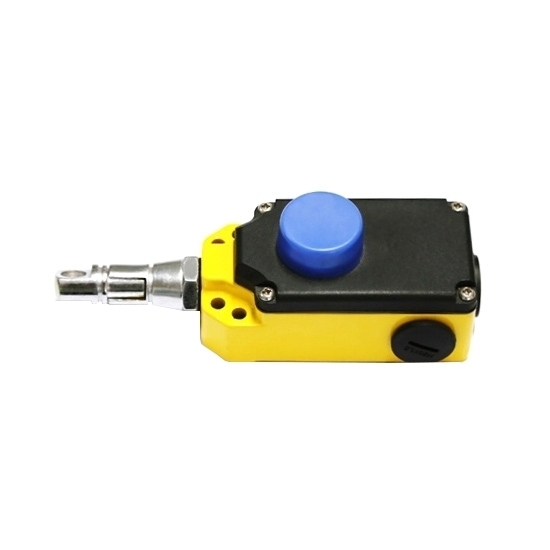

Emergency Stop Rope Pull Switch, 1NO 1NC, 6A/380VAC

5 out of 5 based on 1 reviews | Write a review
$153.46
Emergency stop rope pull switch is an one-way emergency stop switch special for belt conveyor. It is mainly used for the safety protection of the belt conveyor and preventing the belt from causing harm to the surrounding people. Emergency stop rope pull switch has 1NO and 1NC contactors with contact capacity 6A/380VAC, maximum rope length 20±2m, protection class IP65 and working life over 1 million times.
SKU: ATO-SFYS-PRS1
30-day Returns
Free Shipping
Delivery date: 6-12 days

Emergency stop rope pull switch has 1-way emergency stop function, with 1NO+1NC contactors and contact capacity 6A/380VAC.

Application: Conventional belt conveyor, shuttle conveyor, feeder conveyor, bucket elevator, packaging production line, stacker-reclaimer system, crane, excavator, ship loading and unloading system, horizontal feeder, etc.

Specification:

Model ATO-SFYS-LSC-II
Shipping weight 2kg
Direction 1-way
Contact type 1NO+1NC
Contact capacity 6A/380VAC
Return mode Manually return
Shell material Aluminum alloy
Max. rope length 20±2m
Operating force 100N axial force
Nnlock method Press the reset button
Operation way Pull the rope, or cut the rope
Installation M8 screw fixation
Working temperature -25~+80℃ (-13~+176℉)
Working humidity ≤85%
Working life ≥1million times
Protection class IP65
Wiring method Screw connection (M20*1.5mm)
Reset button Yes
Indicator Yes

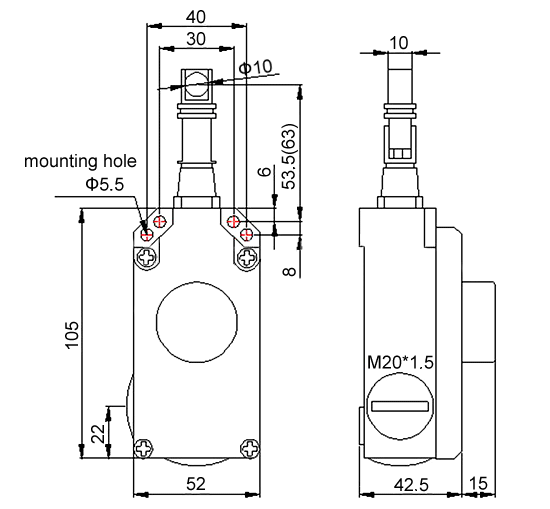

Dimension (unit: mm):
6A/380VAC emergency stop rope pull switch with 1NO 1NC dimension
Tips: What is an emergency stop rope pull switch?
The emergency stop rope pull switch is composed of pull rod, reset button, lock slot and micro switch. It is installed on machines and equipments that cannot be protected by protective doors, such as belt conveyor. The one-way emergency stop rope pull switch reaches the operating state through pre-tension force. That is to say, the normally closed contact is closed and the normally open contact is in open state. When the rope is pulled or broken, the normally closed contact is definitely open, and the normally open contact is closed. This cuts off the power of control line and stops the conveyor. At this time, the state of the emergency stop switch is locked. The unlocking method is generally achieved by pressing the reset button. Compared with the emergency stop button, the emergency stop rope pull switch can be operated at any point on the rope.
