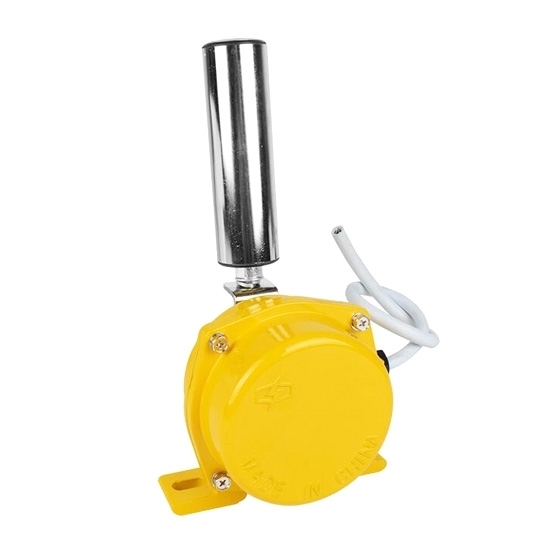

    Emergency Stop Switch for Belt Alignment Control, 5A/380VAC

    $108.47
    Emergency stop switch for belt alignment control is a 2-stage belt anti-alignment switch. It has optional two-stage action angle of 12°-30° / 10°-45° / 25°-35° / 15°-45°, 2NO+2NC contactors with contact capacity 5A/380VAC, optional shell cast aluminum or stainless steel, protection class IP67, working life over 1 million times.
    SKU: ATO-SFYS-BAS
    *
    *
    Free Shipping Worldwide
    Delivery date: 10-20 days

    Two-stage emergency stop switch for belt alignment control has optional action angle of 12°-30° / 10°-45° / 25°-35° / 15°-45°, contactors 2NO+2NC, contact capacity 5A/380VAC and automatically return mode.

    Application: Conventional belt conveyor, shuttle conveyor, feeder conveyor, bucket elevator, packaging production line, stacker-reclaimer system, crane, excavator, ship loading and unloading system, horizontal feeder, etc.

    Specification:

    Model ATO-SFYS-KPT1 ATO-SFYS-BKPT1 ATO-SFYS-STKPT1
    Shipping weight 2kg 3kg 3kg
    Shell material *
    Cast aluminum Cast aluminum (explosion-proof) Stainless steel
    Stage 2-stage 2-stage 2-stage
    Action angle *
    12°-30°, 10°-45°, 25°-35° 12°-30°, 10°-45°, 25°-35° 12°-30°, 10°-45°, 25°-35°, 15°-45°
    Limit angle 70° 70° 70°
    Contact type
    2NO+2NC 2NO+2NC 2NO+2NC
    Contact capacity
    5A/380VAC 5A/380VAC 5A/380VAC
    Return mode
    Automatically return Automatically return Automatically return
    Distance between vertical roll and belt
    50-100mm 50-100mm 50-100mm
    Max. distance between two switches 50m 50m 50m
    Working temperature -20~+50℃ (-4~+122℉) -20~+50℃ (-4~+122℉) -30~+60℃ (-22~+140℉)
    Working humidity ≤85% ≤85% ≤85%
    Working life ≥1million times ≥1million times ≥1million times
    Protection class IP67 IP67 IP67
    Cable length 1.5m 1.5m 1.5m

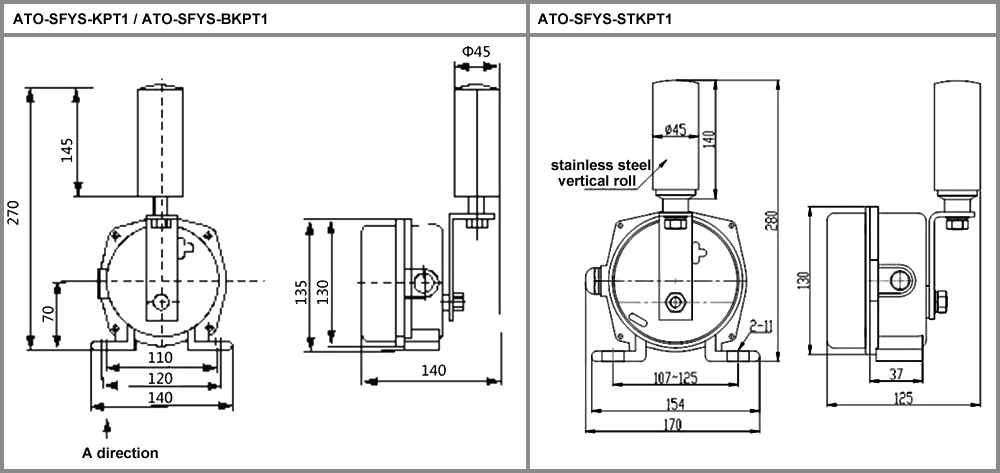

    Dimension (unit: mm):
    Emergency stop switch for belt alignment control dimension

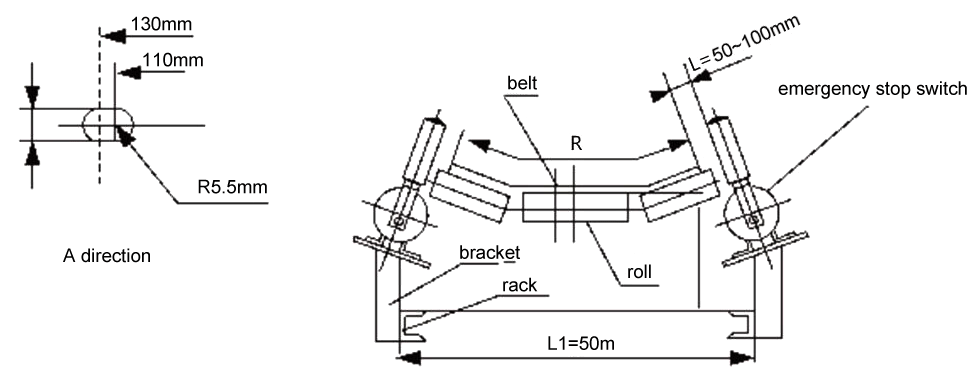

    Installation:
    Emergency stop switch for belt alignment control installation
    Tips: Installing an emergency stop switch for belt alignment control

    The working principle of the emergency stop switch for belt alignment control is that when the conveyor belt deviates, the belt touches the vertical roll of the switch. When the vertical roll deflects to the first stage action angle, the first group of contact switch operates and outputs a alarm signal. If the belt continues to deviate so that the vertical roll of the emergency stop switch reaches the second stage action angle, the second group of contact switch sends a stop signal. If it is connected to the control circuit, it can realize automatically shutdown.
    Installation method:

    1. Fix the emergency stop switch on the bracket and weld it to the rack.
    2. Set the two-stage belt alignment switches on both sides of the conveyor belt. The vertical roll should be perpendicular to the plane of the edge of the conveyor belt.
    3. The distance between the vertical roll of the emergency stop switch and the edge of the conveyor belt is L=50 ~ 100mm.
    4. A pair of emergency stop switches can be installed at every 50m position of conveyor belt.
