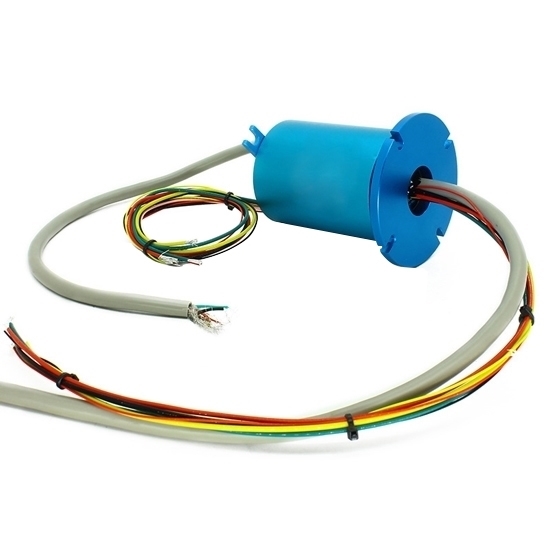

Servo Motor Encoder Slip Ring

5 out of 5 based on 1 reviews | Write a review
$381.59
ATO encoder slip ring is specially designed for 1 ~ 8 pcs servo motors, high performance and high reliability with 6, 12 14 signal circuits, can combine with pneumatic/hydraulic rotary unions, other switch signal/ power channels, CanBus and Profibus.
*
*
*
*
SKU: ATO-ESR-ZM056
30-day Returns
Free Shipping
Delivery date: 6-12 days

Factory price servo motor encoder slip ring is a special inner wiring and shielding design to avoid encoder errors. It can combine with pneumatic and hydraulic rotary unions. The contact material is precious metal with hard gold plating, which ensures wear resistant and ant-oxidative for a long working life.

Specification

  • Model: ATO-ZM056
  • Number of Passages: 4 Passages
  • Torque: 0.1N.m+0.03N.m/6 circuits
  • Voltage Range: Power: 0~440VAC/VDC; Signal: 0~440VAC/VDC
  • Lead Wire Spec.: Power: power cable or AWG #17 Teflon wire; Signal: 6 cores shielded cable or AWG#22 Teflon wire
  • Max. Rotating Speed (Optional): 400 rpm, 800 rpm, 1200 rpm
  • Working Temperature: -30℃~80℃
  • Work Humidity: 0~85% RH
  • Contact Material: Precious Metal
  • Housing Material: Aluminum Alloy
  • Working Life: 20/60/150 million for ref
  • Insulation Resistance:≥1000MΩ/500VDC
  • Lead Wire Length: standard 300mm (can be customized)
  • Certification: CE, RoHS
  • Electrical Noise: <0.01Ω
  • Loss Rate: <0.02%
  • Weight: About 1 kg

Dimension Drawing (Unit: mm)

Dimension of servo motor encoder slip ring

Standard Model List

Model Servo Motor No. Power Circuit (10A) Signal Circuit (5A) Length L (mm)
ATO-ZM056-01 1 0 0 55
ATO-ZM056-01-06S 1 0 6 71.5
ATO-ZM056-01-12S 1 0 12 88.5
ATO-ZM056-01-24S 1 0 24 122
ATO-ZM056-01-1210-12S 1 12 12 122
ATO-ZM056-02 2 0 0 88.5
ATO-ZM056-02-06S 2 0 6 104
ATO-ZM056-02-12S 2 0 12 122
ATO-ZM056-02-24S 2 0 24 156
ATO-ZM056-02-1210-12S 2 12 12 156
ATO-ZM056-03 3 0 0 127
ATO-ZM056-03-06S 3 0 6 143.5
ATO-ZM056-03-12S 3 0 12 160.5
ATO-ZM056-03-24S 3 0 24 194
ATO-ZM056-03-1210-12S 3 12 12 194
ATO-ZM056-04 4 0 0 160.5
ATO-ZM056-04-06S 4 0 6 176
ATO-ZM056-04-12S 4 0 12 194
ATO-ZM056-04-24S 4 0 24 228
ATO-ZM056-04-1210-12S 4 12 12 228

Note: Please contact us if you have special requirements for ATO slip ring. The package includes the controller.

Tip: Why choose ATO servo motor encoder slip ring?

The servo motor encoder slip ring is used to transmit the servo motor encoder signal and the servo motor control signal. It can be used as a connector between the encoder and the servo motor while rotating 360°, and transmit different power and control signals at the same time. ATO servo encoder slip ring has stable performance and is very reliable. It can be used with other switch signals and power lines, and pneumatic and hydraulic rotary joints. Internal wiring and special shielding module design can completely prevent the encoder from reporting error codes.
