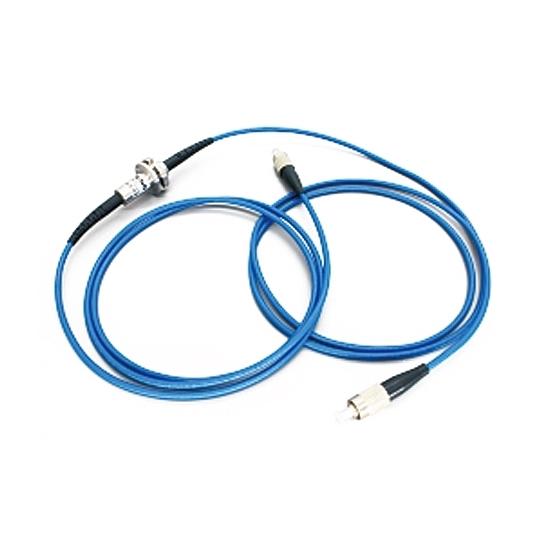

Electrical Fiber Optic Slip Ring, 1 Channel

5 out of 5 based on 1 reviews | Write a review

$1,095.89

Single channel electrical fiber optic slip ring can transmit data with no loss when 360° rotating. This 1 channel fiber optic rotary union supports single mode and multi motor, which is applied to devices that need to unlimited, continuous or intermittent rotation and transmit large capacity data or signal from stator side to rotor side. It can be combined with the traditional electric slip ring to transmit power and high-speed data. 2 ~ 8 channels fiber optic rotary joint can be customized.

Fiber Type *
Wavelength *
Wavelength *
Wavelength *
Connector Type *

SKU: ATO-FOSR-FO100

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Fiber optic slip ring adopts fiber to transmit signal, used to any devices to transmit electricity and fiber signal when 360° rotating, such as HD video transmission system, microwave communication, medical equipment, sensor signal measurement, radar and video monitoring system. This fiber optic rotary union is suitable for some applications which require to keep continuous or intermittent rotating and transmit mass data from static side to rotation side. It can be combined with the traditional electric slip ring to transmit power and high-speed data. 2 ~ 8 channels fiber optic rotary joint can be customized.

Features

Can transmit single or multi channels fiber optic signal.
Can be combined to transmit power, control signal, micro power signal of computer automotive control.
Can be combined with the traditional electric slip ring to transmit power and high-speed data.
Non-contact, no friction, long working life, >100 million revolutions (2-3 millions revolutions for signal channel model).
Safe and reliable, no electromagnetic interference long-distance transmission.

Specification

Model: ATO-FO100
Fiber Channel: 1 Channel
Fiber Type (Optional): 9/125um (Single Mode), 50/125um (Multi Mode), 62.5/125um (Multi Mode)
Wavelength (Optional): 1310/1550 (Single Mode), 850/1310 (Multi Mode)
Connector Type (Optional): FC, ST, SC, LC
Bandwidth:±50nm
Max Insertion Loss (23℃): 1.2dB (Single Mode), 0.7dB (Multi Mode)
Insertion Loss Fluctuation:≤0.6dB (Single Mode), ≤0.4 dB (Multi Mode)
Return Loss (Without Connector):≥55dB (Single Mode), ≥40dB (Multi Mode)
Max Power: 0.5W
Max Speed: 2000 rpm
Working Life: >20 million
Work Temperature: -45~85℃
Storage Temperature: -50~85℃
Protection Grade: IP68

Dimension Drawing (Unit: mm)

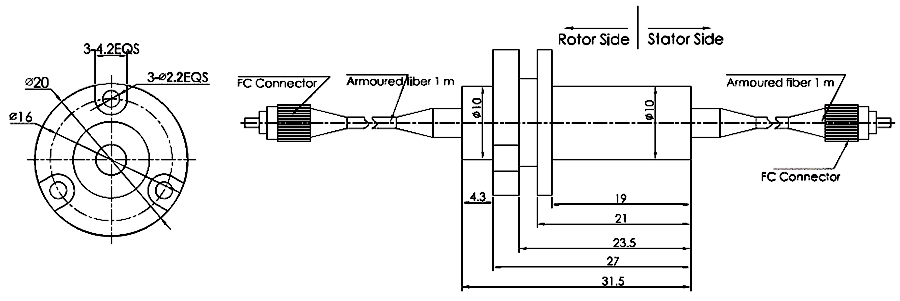

Dimension of single channel fiber optic slip ring

Standard Model List

Model	Fiber Channel	Max Circuits（Power/ Signal）	OD (mm)
ATO-FO100	1 channel	0	10
ATO-FO100A	1 channel	0	6.8
ATO-FO100B	1 channel	0	12.7
ATO-FO102	1 channel	30	32.8
ATO-FO108	1 channel	48	56
ATO-FO109	1 channel	96	86
ATO-FO200	2 channel	0	67
ATO-FO200B	2 channel	0	67
ATO-FO200C	2 channel	0	35
ATO-FO208	2 channel	96	86
ATO-FO209	2 channel	24	56
ATO-FO400	4 channel	0	67
ATO-FO400B	4 channel	0	67
ATO-FO408	4 channel	96	86
ATO-FO409	4 channel	24	56
ATO-FO600	6 channel	0	67
ATO-FO608	6 channel	24	86
ATO-FO609	6 channel	96	56
ATO-FO800	8 channel	0	67
ATO-FO808	8 channel	96	86

Note: All above models for customization and please contact us if you need the flange. The package includes the controller.

Tips: Fiber Optic Slip Ring Application

Optical fiber slip rings are mainly used in 360 degree continuous rotation and need to ensure power supply, and the optical fiber signal cannot be interrupted, such as high-end robots, high-end material conveying systems, rotating turrets on military vehicles, remote control systems, radar antennas, and fiber optic sensing. Transmission and control of high-speed video, digital, and analog signals for equal turntables (rate tables), medical systems, video surveillance systems, national or international security systems, submarine operation systems, emergency lighting equipment, robots, exhibition/display equipment and medical equipment.
