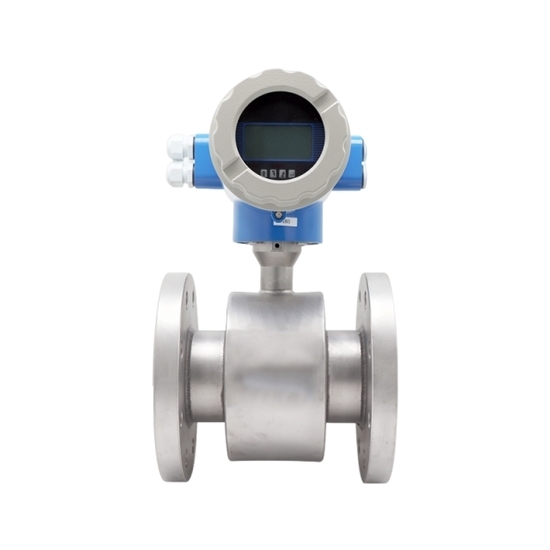

Explosion Proof Magnetic Flow Meter, DN15-DN150

Designed for harsh working conditions, the explosion-proof magnetic flow meter for sale is suitable for all kinds of conductive liquids, with an accuracy of up to 0.5%, the output signal supports 4-20mA, RS485 and pulse 0-5V output, and the nominal diameter can be selected from DN15/DN65 to DN150, which can support the temperature of the medium from -25℃ to 180℃, and the rated pressure is up to 1.6MPa, which is accurate and stable, and is especially suitable for the fields of chemical industry, metallurgy and environmental protection. Environmental protection and other fields.

Specification

Flow Meter Flow Range

Feature

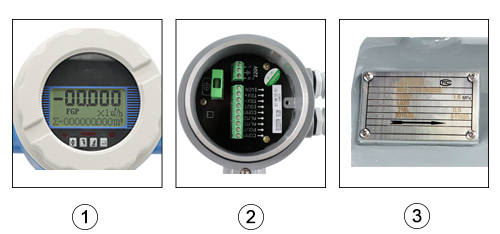

1. Blue Deep Table Head: Magnetic flow meter is equipped with liquid crystal display and keypad control, which makes the data intuitive and reliable. There is no mechanical parts damage, no need for regular maintenance.
2. High-quality Electrical Board: Selection of high-quality terminals, wiring is solid, beautiful shape, wiring instructions on the surface of the terminal board, can be seated in the right number, wiring quickly and accurately
3. Stainless Steel Labeling: Stainless steel piping material, using paint spraying process, anti-interference, high temperature resistance, corrosion-resistant media. Laser printed nameplate, clear parameters are not easy to wear.

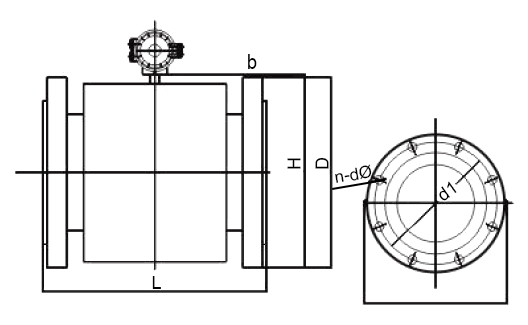

Dimension (unit: mm)

Working Principle

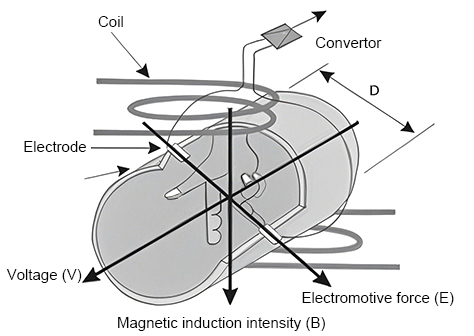

Explosion-proof magnetic flow meter working principle based on Faraday's law of electromagnetic induction, as shown in the figure. When a conductor in the magnetic field field movement, in the direction of the magnetic field, the direction of movement perpendicular to each other at the ends of the conductor, will produce an induced electromotive force (E), this induced potential by the two measuring electrodes detected by the numerical size of the size of the flow rate and the size of the magnetic field of the magnetic induction proportional to the size of the field, the value of the value of the: E = B.V.D.K

In the formula:

• K -- Coefficient related to the distribution of the magnetic field and the length of the axial direction
• B -- Magnetic induction
• V -- The average flow rate of conductive liquid
• D -- Electrode spacing (measuring tube inner diameter)

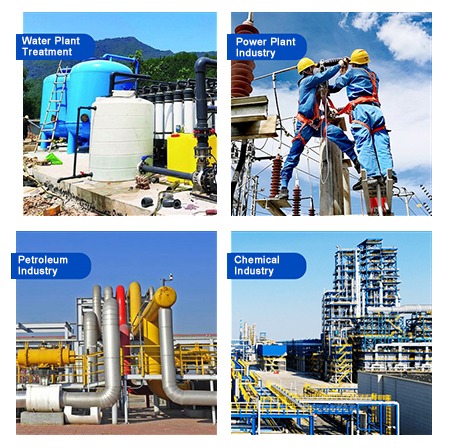

Application

Tips: Explosion-proof magnetic flow meter advantages

• Measurement is not affected by changes in fluid density, viscosity, temperature, pressure and electrical rate.
• Measuring tube without flow-obstructing parts, no pressure loss, straight pipe section requirements are low, the measurement of slurry has a unique adaptability.
• Nominal diameter DN15-DN150 covers a wide range, PETE lining and 316L electrode, can be applied to a variety of measurement media, with good corrosion and wear resistance.
• The converter adopts programmable frequency low-frequency rectangular wave excitation, which improves the stability of flow measurement with low power loss.
• High-definition backlit LCD display, Chinese and English menu operation optional, easy to use, simple operation, with RS485, 4-20mA, pulse 0-5V and other communication signal output (optional).
• With conductivity measurement function, can judge whether the sensor is empty pipe, with self-test and self-diagnosis function.
